DM-CLS205TD CNC Full Metal Case Metal Gear Coreless Motor 20kg.cm Digital rc Servo

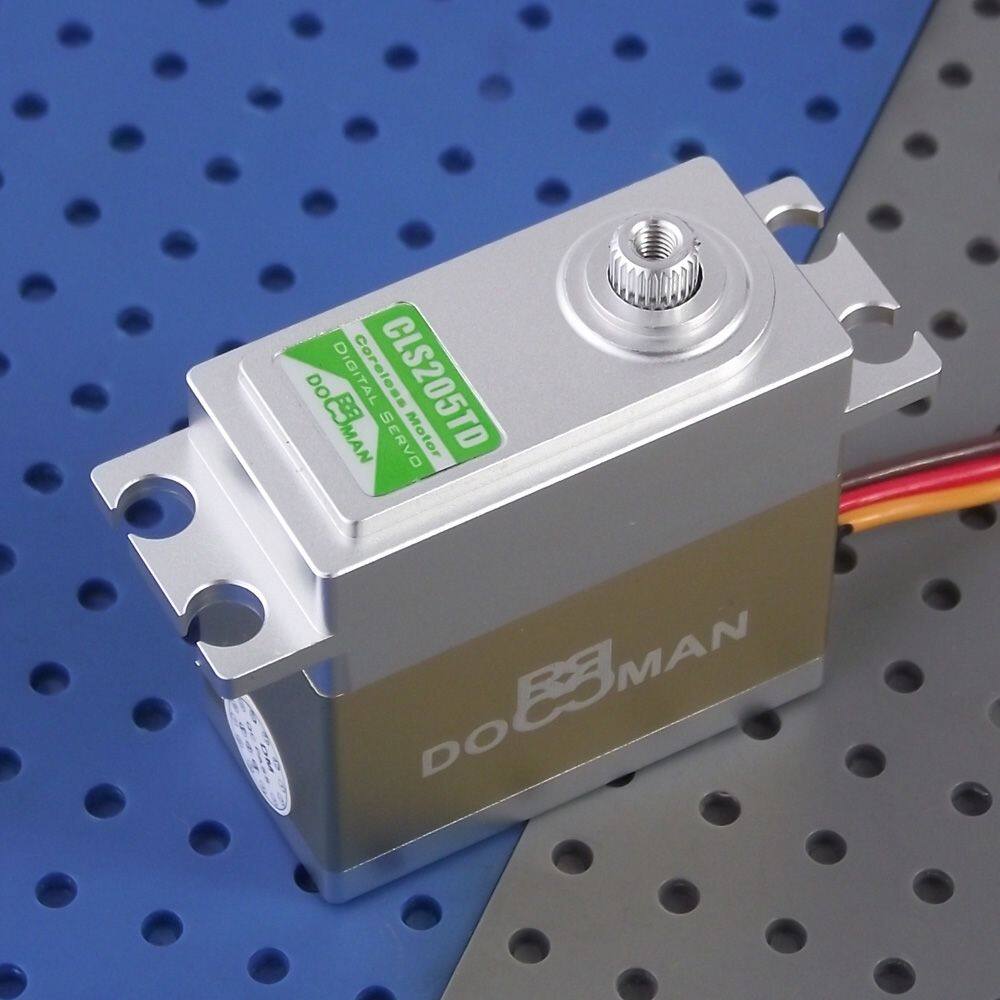

DM-CLS205TD CNC Full Metal Case Metal Gear Coreless Motor 20kg.cm Digital rc Servo photo-1

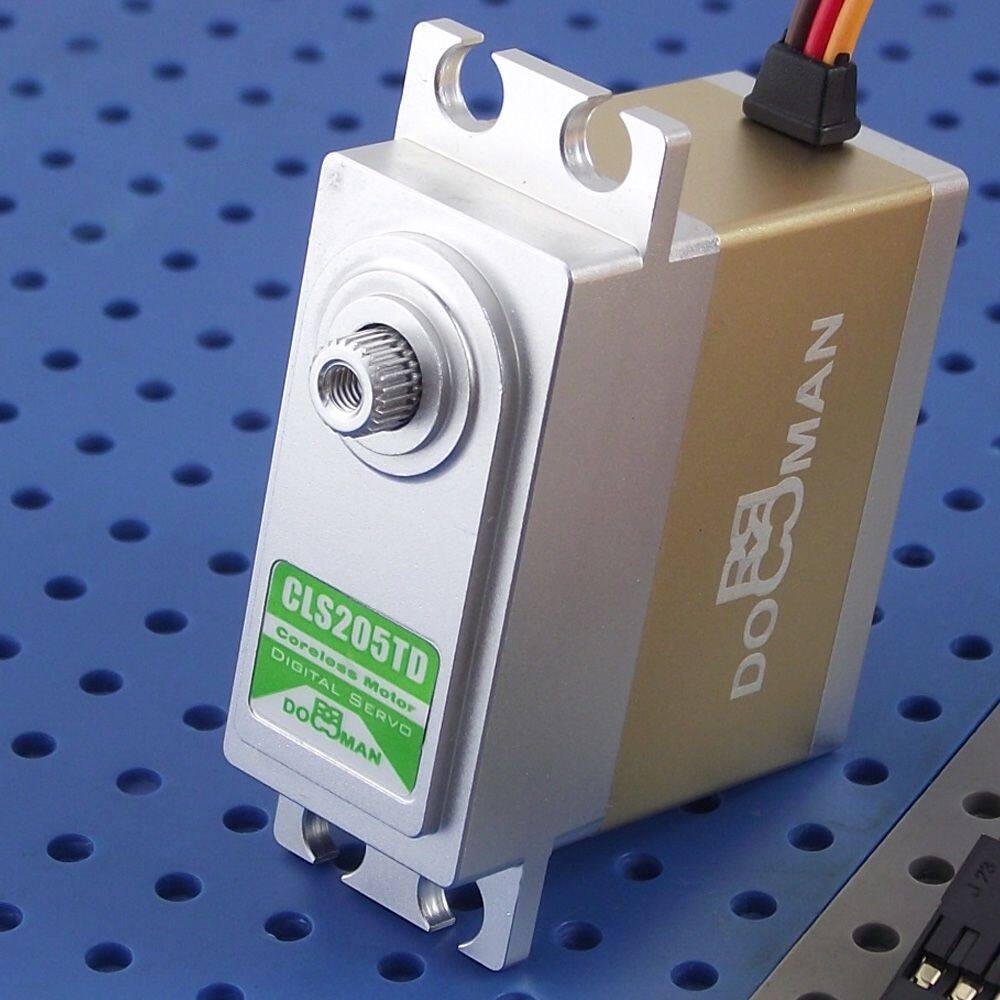

DM-CLS205TD CNC Full Metal Case Metal Gear Coreless Motor 20kg.cm Digital rc Servo photo-2

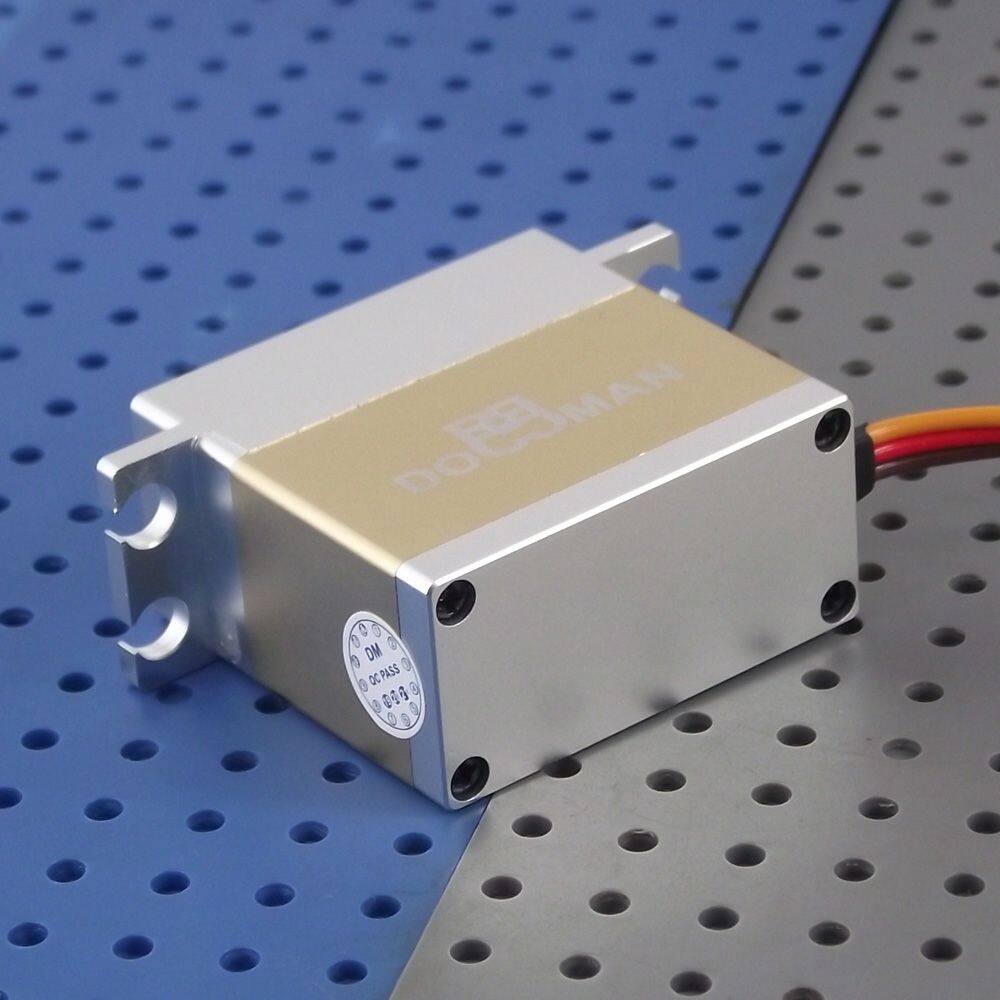

DM-CLS205TD CNC Full Metal Case Metal Gear Coreless Motor 20kg.cm Digital rc Servo photo-3

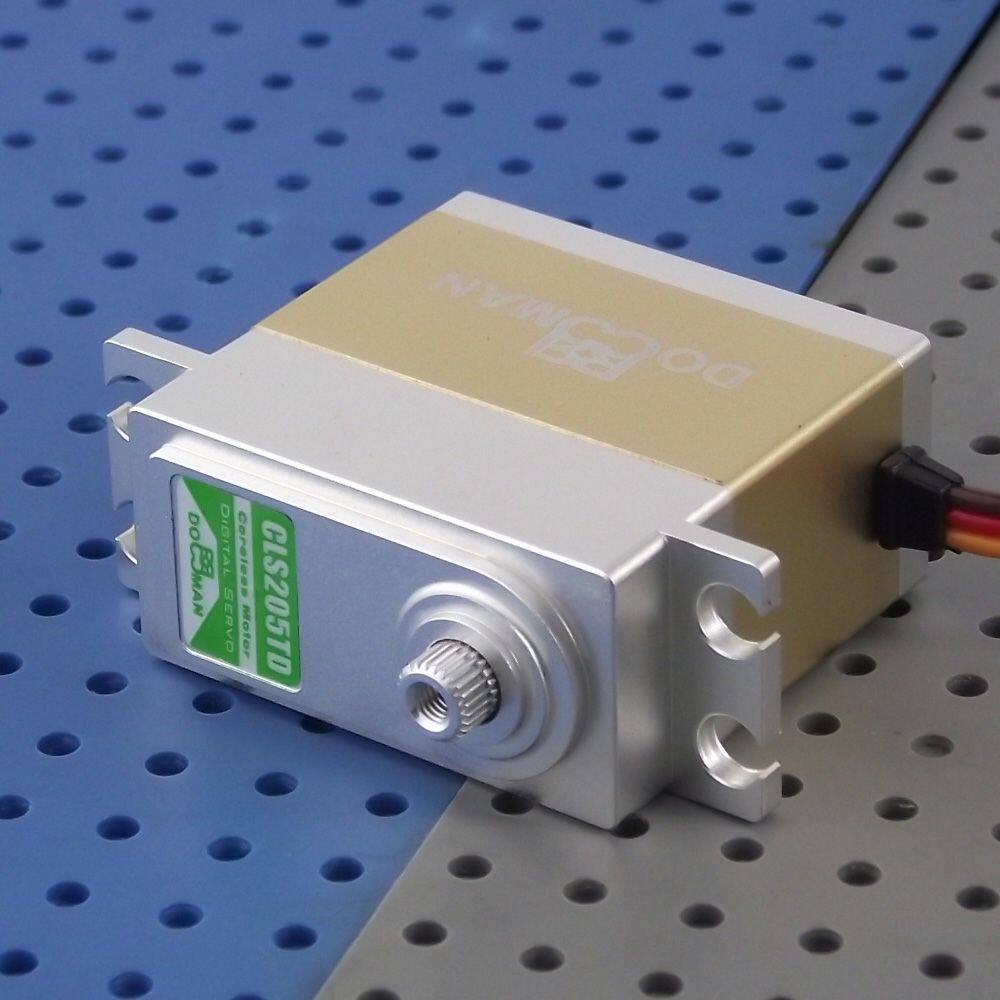

DM-CLS205TD CNC Full Metal Case Metal Gear Coreless Motor 20kg.cm Digital rc Servo photo-4

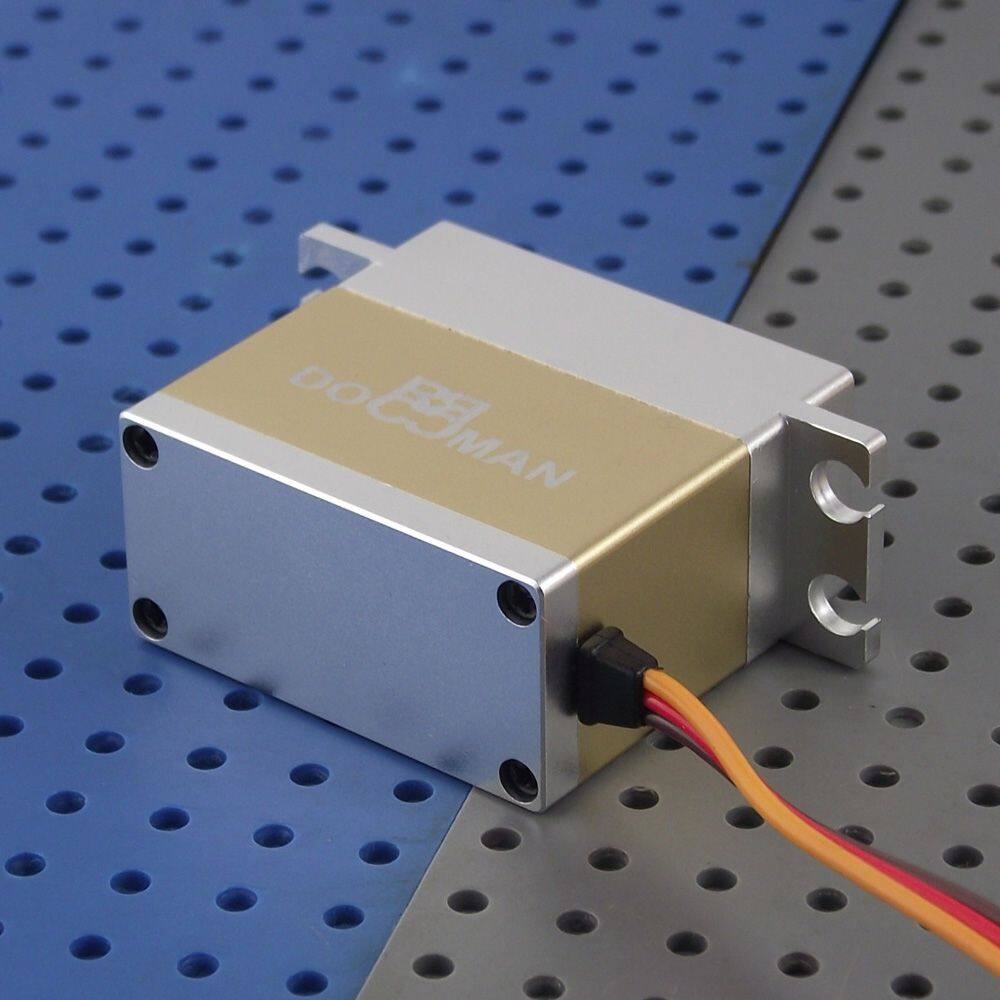

DM-CLS205TD CNC Full Metal Case Metal Gear Coreless Motor 20kg.cm Digital rc Servo photo-5
US$ 25 - 26 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DOMAN RC
Place of Origin:
China
Model Number:
DM-CLS205TD
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
5 days
Brand Name DOMAN RC
Place of Origin China
Model Number DM-CLS205TD
Use Vehicles & Remote Control Toys

Features:

-Standard digital metal gears 25T servo,2BB

-Coreless motor,CNC full Aluminium case

-Operating Voltage: 6V~7.4V

-Dead band width: 2usc

-Interface: (JR)

-Wire length: 30cm

Specifications:

Item No.:DM-CLS205TD

Weight:75g

Size:40*20*37mm

Speed:0.13sec/60degree at(6v)               0.11sec/60degree at(7.4v)
Stall Torque:17.5kg.cm.at 6v               20kg.cm.at(7.4v)

Operating Voltage:6v-7.4v

(Note:need UBEC if use 2S Lipo,for 2S Lipo max is 8.4v,it will burn the servo)

Futaba,JR,SANWA,Hitec compatible.

Specification:

Size (mm)

Weight

Wire

6V

7.4V

Rotation angle

Speed

Torque

Speed

Torque

A

B

C

g

oz

cm

sec/60o

kg-cm

oz-in

sec/60o

kg-cm

oz-in

40.0

20.0

37

75.0


30.0

0.13

17.5


 0.11

 20


PWM 1-2ms 90degree

jiantu-Model001

Packing include :

     1pcsXDM-CLS205TD servo

     Accessaries:servo horns,rubber grommets, eyelets and mounting screws

Important Notes:

1,We offer JR plug for you,for it is compatible.Futaba plug.
2,Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
3,Please choose suitable servo for you rc model.Torque overload will damage your servo.
4,Keep the servo clean and away from dust,corrosive gas and humid air.
5,Please choose correct power voltage and make sure the current
6,Specification are subject to change without notice

Product Tags: metal servo , 20kg servo , digital servo , arduino servo , rc servo , robot servo
