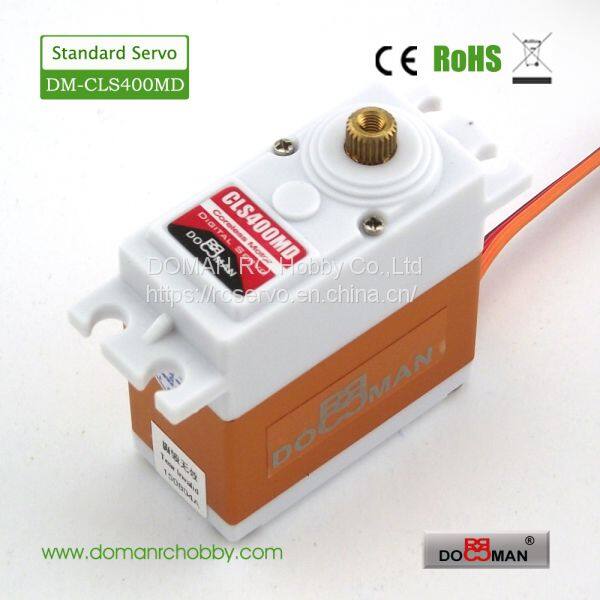

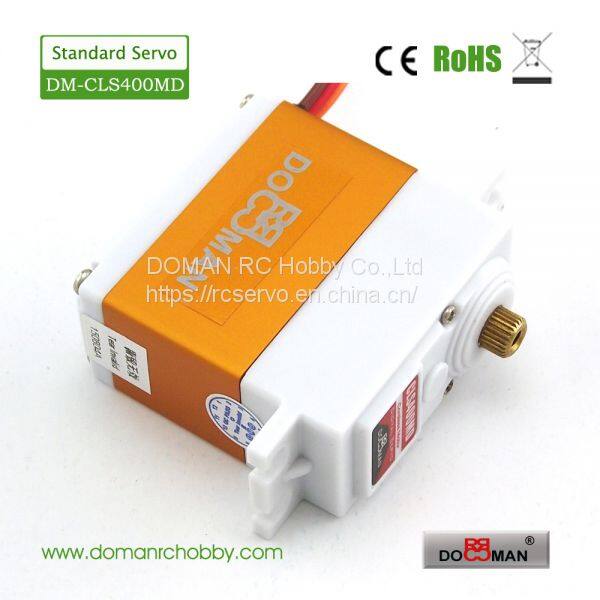

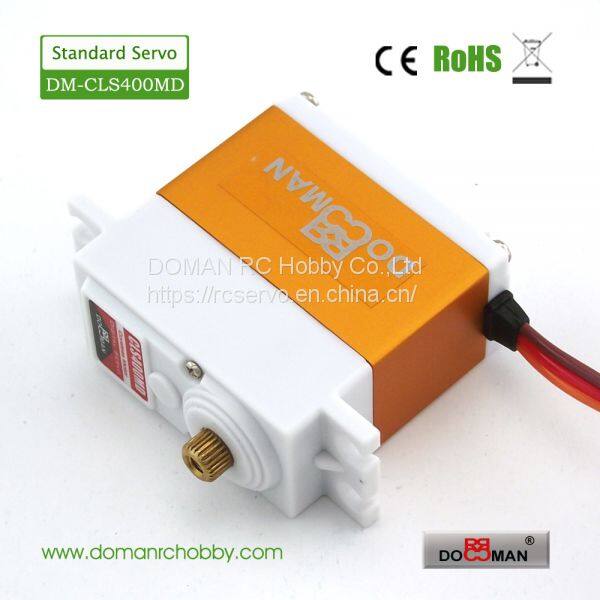

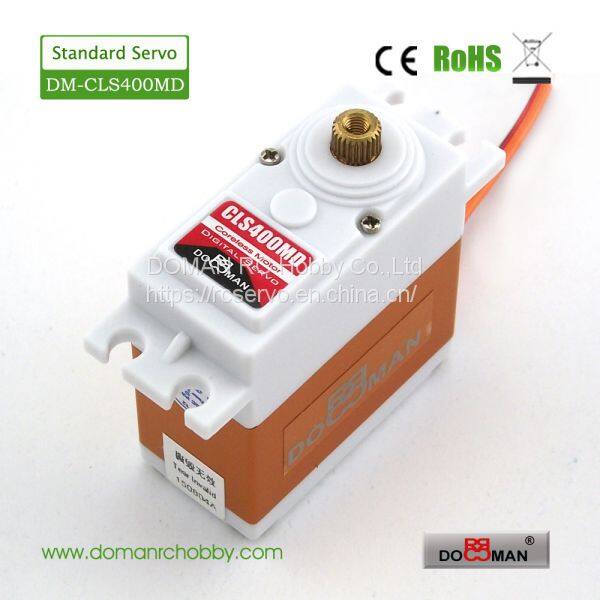

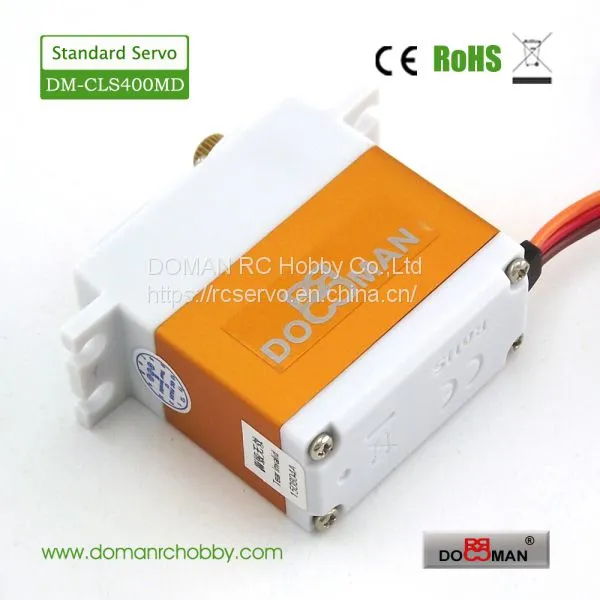

Help CenterDM-CLS400MD DOMAN RC Metal Gear Coreless 76g/0.13s/40kg.cm Digital Servo
Related Products
-
DOMAN RC Hobby DM-S2000MD Metal Gear 20kg Digital rc ServoUS$ 5 - 6MOQ: 10 Pieces -
DM-S0025 DOMAN RC 2.5g Micro rc ServoUS$ 1.3 - 1.5MOQ: 10 Pieces
-
DM-S0037 3.7g DOMAN RC Digital Micro rc ServoUS$ 1.3 - 1.5MOQ: 10 Pieces
-
DM-S0043 4.3g DOMAN RC Digital Micro rc ServoUS$ 1.3 - 1.5MOQ: 10 Pieces
-
DM-S0050 5g DOMAN RC Digital Micro rc ServoUS$ 1.7 - 2MOQ: 10 Pieces
Features:
-Standard digital metal gears 25T servo,2BB
-Coreless motor,Aluminium middle case
-Waterproof
-Operating Voltage: 6V~7.4V
-Dead band width: 2usc
-Interface: (JR)
-Wire length: 30cm
Specifications:
Item No.:DM-CLS400MD
Weight:76g
Size:40*20*41mm
Speed:0.15sec/60degree at(6v) 0.13sec/60degree at(7.4v)
Stall Torque:38.8kg.cm.at(6v) 40.6kg.cm.at(7.4v)
(Note:need UBEC if use 2S Lipo,for 2S Lipo max is 8.4v,it will burn the servo)
Operating Voltage:6v-7.4v (this is high torque servo,the current 2-3A at least)
Futaba,JR,SANWA,Hitec compatible.
Specification:
Size (mm) | Weight | Wire | 6V | 7.4V | Rotation angle | |||||||
Speed | Torque | Speed | Torque | |||||||||
L | W | H | g | oz | cm | sec/60o | kg-cm | oz-in | sec/60o | kg-cm | oz-in | |
40.0 | 20.0 | 41 | 76.0 | 30.0 | 0.15 | 38.8 | 0.13 | 40.6 | PWM 500-2500us 180degree | |||
Packing include :
1pcsXDM-CLS400MD servo
Accessaries:servo horns,rubber grommets, eyelets and mounting screws
Important Notes:
1,We offer JR plug for you,for it is compatible.Futaba plug.
2,Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
3,Please choose suitable servo for you rc model.Torque overload will damage your servo.
4,Keep the servo clean and away from dust,corrosive gas and humid air.
5,Please choose correct power voltage and make sure the current
6,Specification are subject to change without notice
