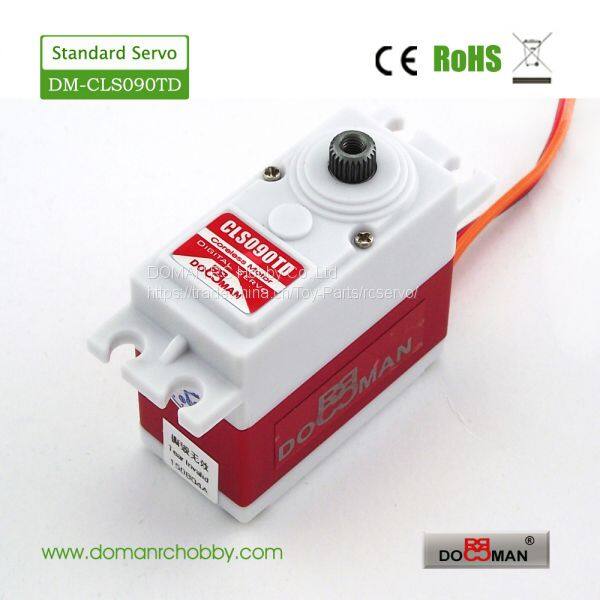

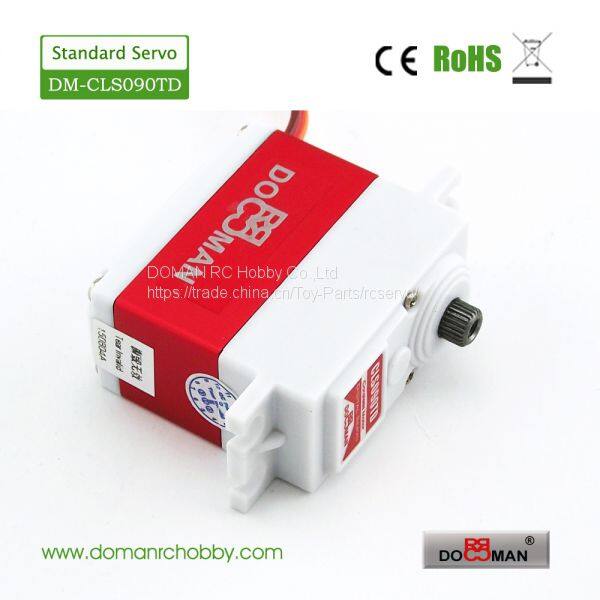

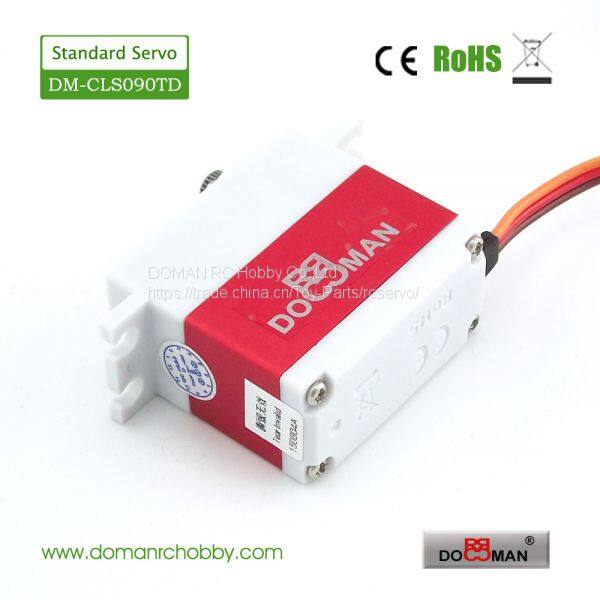

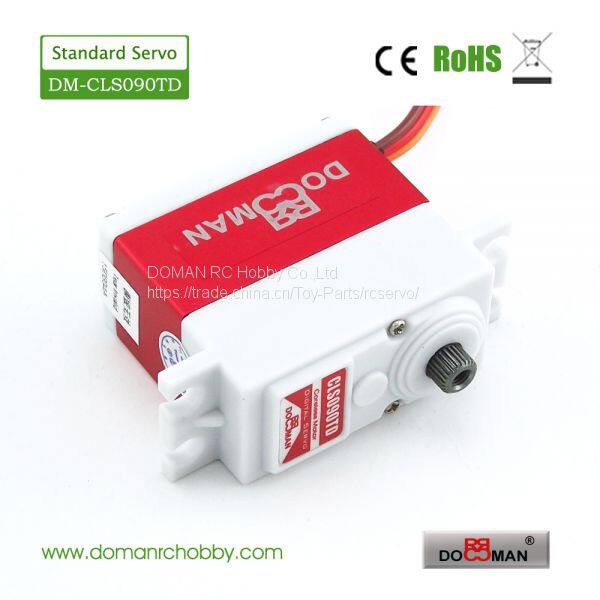

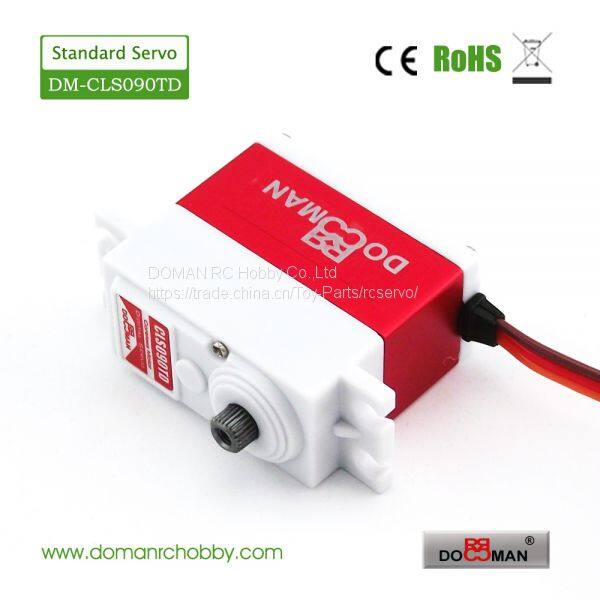

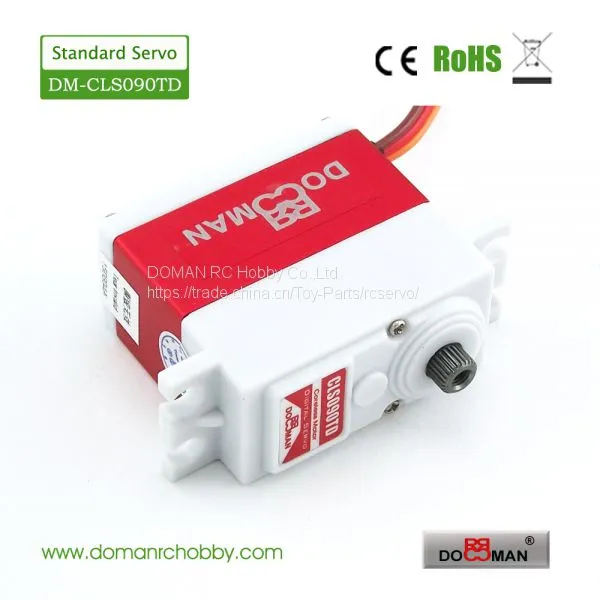

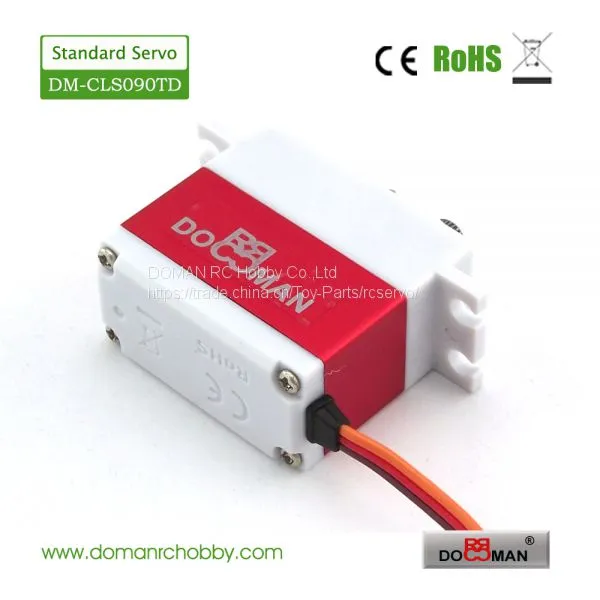

Help CenterDM-CLS090TD DOMAN RC Titanium Gear Coreless 9kg Digital Servo
Related Products
-
DM-CLS090MD DOMAN RC Metal Gear Coreless 9kg Digital ServoUS$ 15 - 20MOQ: 1 Piece -
DM-CLS200TD DOMAN RC Titanium Gear Coreless 20kg Digital ServoUS$ 15 - 20MOQ: 1 Piece
-
DM-S0911M 42g/0.12s/7kg.cm Metal Gear Digital Low Profile rc Servo for Remote Control CarUS$ 5 - 6MOQ: 1 Piece
-
DM-S1211M Metal Gear Digital 12kg Low Profile rc ServoUS$ 5 - 7MOQ: 1 Piece
-
DM-CLS119TD 42g/0.09s/8.3kg.cm Coreless Digital 9kg Low Profile rc ServoUS$ 10 - 12MOQ: 1 Piece
Features:
-Standard digital Titanium gears 25T servo,2BB
-Coreless motor,Aluminium middle case
-Operating Voltage: 6V~7.4V
-Dead band width: 2usc
-Interface: (JR)
-Wire length: 30cm
Specifications:
Item No.:DM-CLS090TD
Weight:58g
Size:40*20*37mm
Speed:0.10sec/60degree at(6v) 0.08sec/60degree at(7.4v)
Stall Torque:11kg.cm.at 6v 13.8kg.cm.at(7.4v)
Operating Voltage:6v-7.4v
(Note:need UBEC if use 2S Lipo,for 2S Lipo max is 8.4v,it will burn the servo)
Futaba,JR,SANWA,Hitec compatible.
Packing include :
1pcsXDM-CLS090TD servo
Accessaries:servo horns,rubber grommets, eyelets and mounting screws
Important notice:
1,We offer JR plug for you,for it is compatible.Futaba plug.
2,Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
3,Please choose suitable servo for you rc model.Torque overload will damage your servo.
4,Keep the servo clean and away from dust,corrosive gas and humid air.
5,Please choose correct power voltage and make sure the current
6,Specification are subject to change without notice
