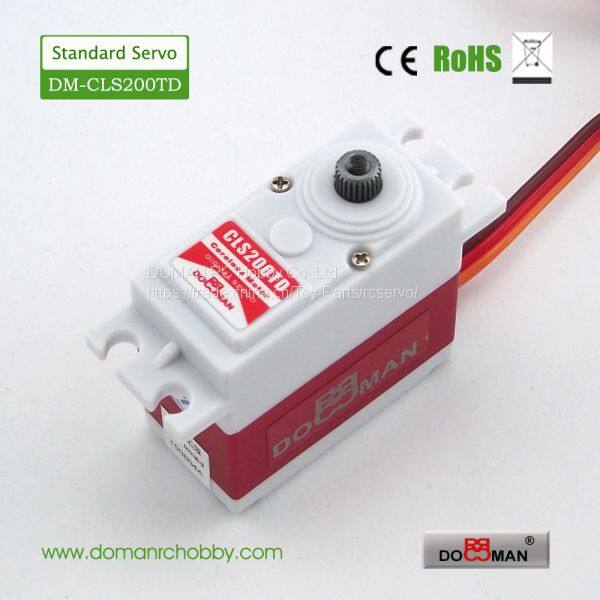

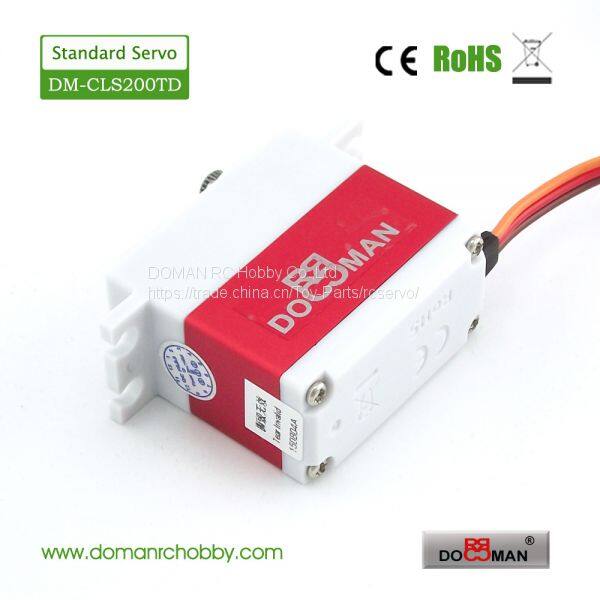

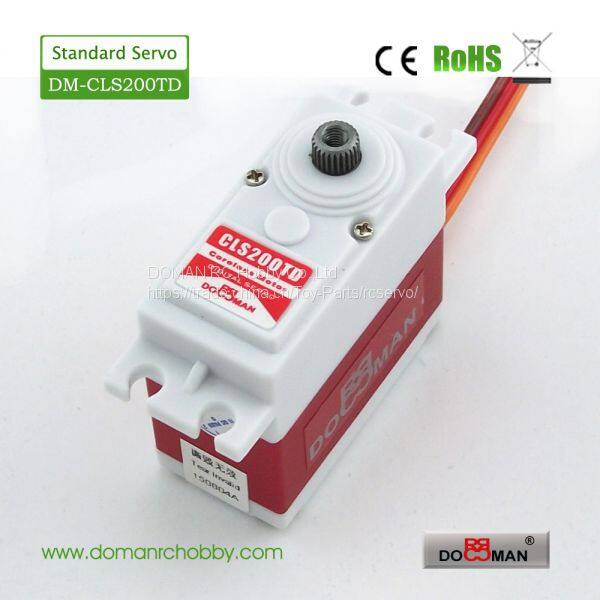

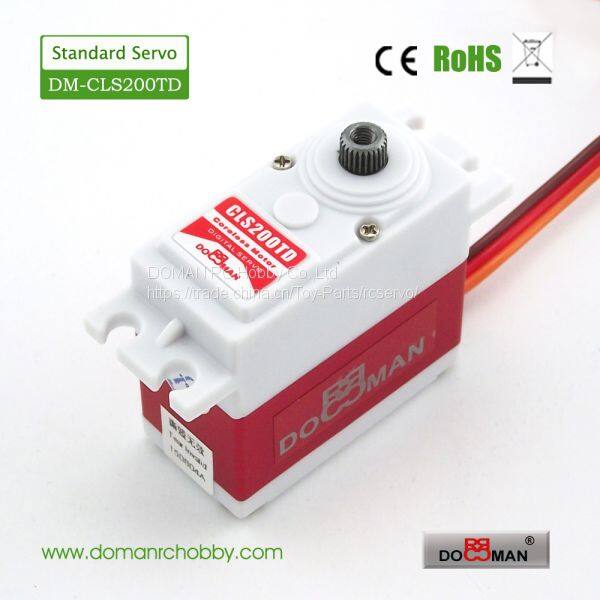

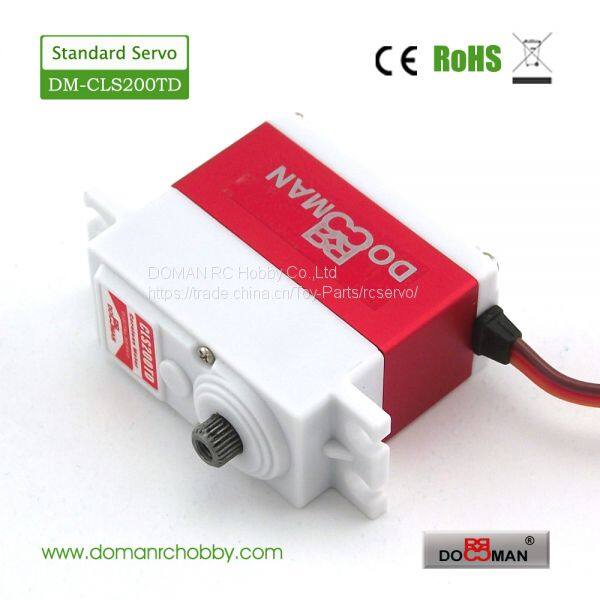

DM-CLS200TD DOMAN RC Titanium Gear Coreless 20kg Digital Servo

Features:

-Standard digital Titanium gears 25T servo,2BB

-Coreless motor,Aluminium middle case

-Operating Voltage: 6V~7.4V

-Dead band width: 2usc

-Interface: (JR)

-Wire length: 30cm

Specifications:

Item No.:DM-CLS200TD

Weight:58g

Size:40*20*37mm

Speed:0.13sec/60degree at(6v)               0.11sec/60degree at(7.4v)
Stall Torque:18.5kg.cm.at 6v               22.8kg.cm.at(7.4v)

Operating Voltage:6v-7.4v

(Note:need UBEC if use 2S Lipo,for 2S Lipo max is 8.4v,it will burn the servo)

Futaba,JR,SANWA,Hitec compatible.

Packing include :

     1pcsXDM-CLS200TD servo

     Accessaries:servo horns,rubber grommets, eyelets and mounting screws

Important notice:

1,We offer JR plug for you,for it is compatible.Futaba plug.
2,Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
3,Please choose suitable servo for you rc model.Torque overload will damage your servo.
4,Keep the servo clean and away from dust,corrosive gas and humid air.
5,Please choose correct power voltage and make sure the current
6,Specification are subject to change without notice
