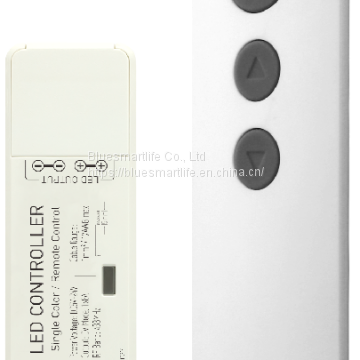

Help CenterNano N12single Color LED Controller
Related Products
Features
Compact design with screw terminals n
Easy using clip cap with cable hold function n
Magnet sticking RF remote controller n
Full protection feature n
Single color to RGBW solution n
Ideal for stand-alone CV LED controlling
Highlight
Nano series LED controllers are our latest wireless RF remote control products. There are 6 models in this family, covering from single color to RGBW application on CV driving LED fixtures. With the new screw drive connector and clip-cap design, they are more universal for different installation. The controller is very compact with length of 86mm, but the output power could be up to 380W at 24V power supply. With inherent full protection feature, the controllers are reliable and durable with different application. A strong magnet is equipped inside the remote controller, with an installation steel plate in the packing, user could ‘stick’ the remote controller anywhere for easier using.
Application
There’re 6 models in Nano series family: N10, N11, N12 is for single color; N20 for CCT; N30 for RGB and N40 for RGBW. For each model, there is one standard version and one high power version. The high-power version could delivery about 50% more power than standard. The remote controller is power with a CR2032 cell battery and could be paired to main unit very flexible, each main unit could be paired with maximum 5 remote controllers and each remote controller could be paired to any main unit. User could also cancel remote pairing easily. A 3-color indicator on the main unit displays all working status of the controller, such as signal receiving, remote pairing and protection.
Specifications
Nano RF Wireless Single Color LED Dimmer
| ||
| Model | N12 | N12-S |
| Electrical Specification | ||
| Working Voltage | DC 5-24V | |
| Rated Output Current | 1x11A | 1x16A |
| Remote Control | RF wireless remote controller | |
| Remote Control Frequency | 433.92MHz | |
| Remote Control Battery | CR2032 3V cell battery | |
| Remote Transmit Power | ||
| Remote Distance | >15 meters in open area | |
| Remote Controller Matching Mode | Each unit can be matched to 5 remote controllers / remote controller can be matched to any receiver |
|
| PWM Output Grade | 4000 Levels | |
| PWM Frequency | 1KHz | |
| Protection Function | Wrong wiring / Overload / Short circuit / Overheat | |
| Working Temperature | -30~60℃ | |
| IP Grade | IP-40 | |
| Components & PCB | SMD parts / 4-layer FR-4 pcb | |
| Functions | ||
| Brightness Level | 11 Levels | |
| Gentle Fading | Yes | |
| Power Off Memory | Yes | |
| Power & LED Connector | ||
| Power Connector | Slot screw terminal | |
| LED Connector | ||
| Dimension & Weight | ||
| Dimension | Main unit: 87x24x15mm, Remote: 122x35x9mm | |
| Net Weight | 52g | 52g |
