Mini R107 Single Color LED Controller

Mini R107 Single Color LED Controller thumbnail-1
Mini R107 Single Color LED Controller thumbnail-2
Mini R107 Single Color LED Controller thumbnail-3
Mini R107 Single Color LED Controller photo-1

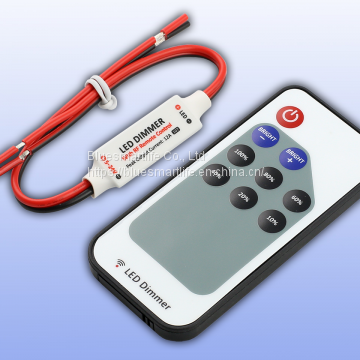

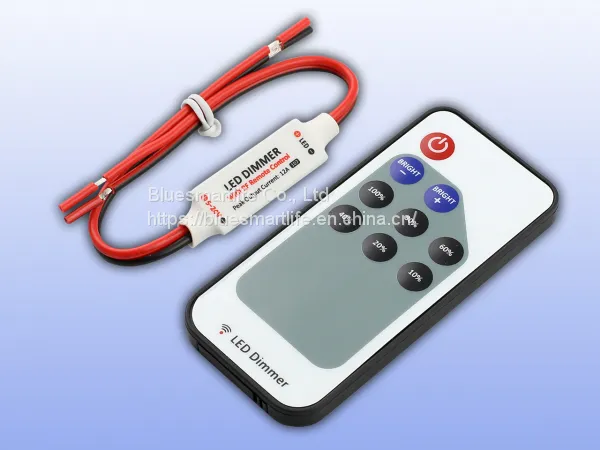

Mini R107 Single Color LED Controller photo-2

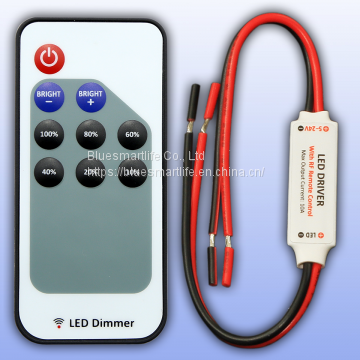

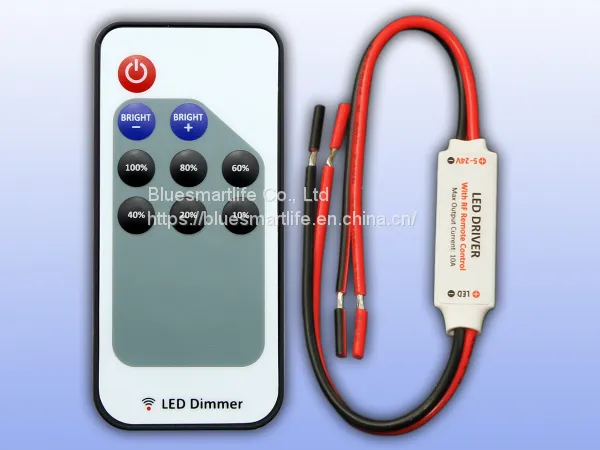

Mini R107 Single Color LED Controller photo-3
US$ 2 - 5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Bluesmartlife
Place of Origin:
China
Model Number:
R108
Contact Supplier Request Quote Chat Now
Bluesmartlife Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Bluesmartlife
Place of Origin China
Model Number R108
Type Remote Control
Voltage Other, 5-24V
Max. Load Power 144W@24V, 72W@12V

Highlight

The new R106‐R109 LED controllers are  updated from the original heat‐shrink tube  version. It has a solid ABS housing now and  new overheat protection feature is engaged.



Application

R106‐R109 LED controllers are designed to  drive RGB or single color LED strip, module, or  spot lights. With the radio frequency remote  controller, user can set up color, dynamic  mode and brightness. The controller main unit is extreme slim with a dimension of 38 x 14 x  6.5mm, which make the installation very easy.  With the patent RF remote control  technology, the remote controller can be  flexible paired to main unit by user, user can  control one main unit by several remote  controllers or control several main unit by one  remote.  The controller can work with DC 5V to 24V  power supply and rated output current is 3 x  2A for RGB and 5A for single color. Also the  controller can protect against over heat, which  significantly reduce defective rate.



Feature

Ultra slim size with solid ABS housing

Patent RF remote control technology

CE, R&TTE, FCC, RoHS certificated

DC 5V to 24V voltage range

Over heat protection

Plenty dynamic mode and static color

Multiple connector options

Specifications

R107 Mini RF Wireless LED Dimmer
Model R107-S R107-D
Connector Red / Black cable Female DC Jack
Electrical Specification
Working Voltage DC 5-24V
Rated Output Current 5A
Remote Control RF wireless card type remote controller
Remote Control Frequency 433.92MHz
Remote Control Battery CR2025 3V cell battery
Remote Transmit Power
Remote Distance >15 meters in open area
Remote Controller Matching Mode Each unit can be matched to 3 remote controllers
 / Free matching mode
PWM Control Level 64-Level
PWM Frequency 1.65KHz
Protection Wrong Polarity / Overheat
Working Temperature  -30~60℃
Components & PCB SMD parts / Double side FR-4 pcb
Functions
Brightness Level 64 Levels
Brightness Shortcut 6 Levels
Auto Recall Function Yes
Dimension & Weight
Dimension Main unit: 51x14x6mm; Remote:40x86x6.5mm
Cable Length 120mm
Net Weight 24g 30g


Product Tags: single color LED controller , RF LED controller , LED dimmer , LED light dimmer , LED strip dimmer , LED tape dimmer , LED mudule controller , single color LED light controller , single color LEd dimmer
