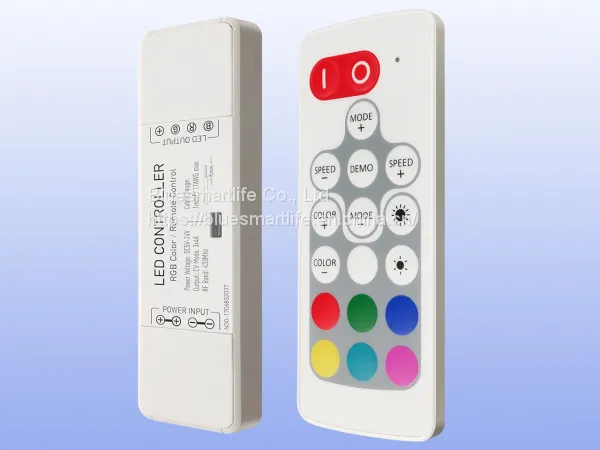

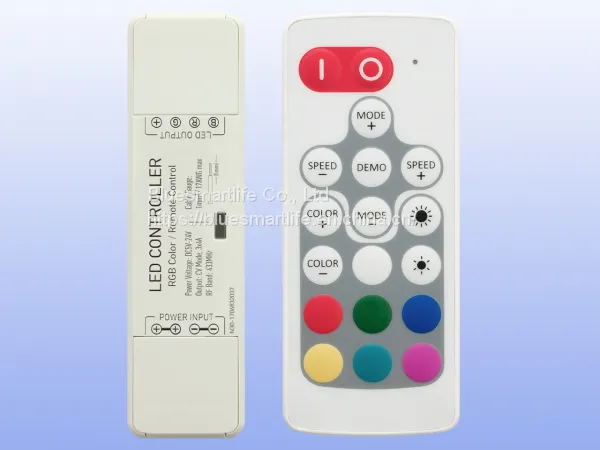

Nano RGB LED controller

Features

Compact design with screw terminals n

Easy using clip cap with cable hold function n

Magnet sticking RF remote controller  n

Full protection feature n

Single color to RGBW solution n

Ideal for stand-alone CV LED controlling

Highlight

Nano series LED controllers are our latest wireless RF remote control products. There are 6 models in this family, covering from single color to RGBW application on CV driving LED fixtures. With the new screw drive connector and clip-cap design, they are more universal for different installation.  The controller is very compact with length of 86mm, but the output power could be up to 380W at 24V power supply. With inherent full protection feature, the controllers are reliable and durable with different application. A strong magnet is equipped inside the remote controller, with an installation steel plate in the packing, user could ‘stick’ the remote controller anywhere for easier using.

Application

There’re 6 models in Nano series family: N10, N11, N12 is for single color; N20 for CCT; N30 for RGB and N40 for RGBW. For each model, there is one standard version and one high power version. The high-power version could delivery about 50% more power than standard. The remote controller is power with a CR2032 cell battery and could be paired to main unit very flexible, each main unit could be paired with maximum 5 remote controllers and each remote controller could be paired to any main unit. User could also cancel remote pairing easily.  A 3-color indicator on the main unit displays all working status of the controller, such as signal receiving, remote pairing and protection.

Specifications

Nano RF Wireless RGB LED controller
Model	N30	N30-S
Rated Output Current	3x4A	3x6A
Electrical Specification
Working Voltage	DC 5-24V
Remote Control	RF wireless remote controller
Remote Control Frequency	433.92MHz
Remote Control Battery	CR2032 3V cell battery
Remote Transmit Power	<10dBm
Remote Distance	>15 meters in open area
Remote Controller Matching Mode	Each unit can be matched to 5 remote controllers  / remote controller can be matched to any receiver
PWM Output Grade	4000 Levels
PWM Frequency	1KHz
Protection Function	Wrong wiring / Overload / Short circuit / Overheat
Working Temperature	-30~60℃
IP Grade	IP-40
Components & PCB	SMD parts / 4-layer FR-4 pcb
Functions
Dynamic Mode	43 modes
Dynamic Speed Level	10 Levels
Static Color	30 colors
Color Brightness Level	5 Levels
Demo Mode	Yes
Gentle Fading	Yes
Power Off Memory	Yes
Power & LED Connector
Power Connector	Slot screw terminal, max 17AWG each slot, two positive and two negative in parallel.
LED Connector	Slot screw terminal, max 17AWG each slot
Dimension & Weight
Dimension	Main unit: 87x24x15mm, Remote: 86.5x36x7.5mm
Net Weight	43g	43g
