Help CenterNWT-1301 Key Switch Force Tester
US$ 1299 - 1300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2005
Port of Shipment:
shenzhen
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NWT1001V10 Keypad and Button Switch Life TesterUS$ 798 - 799MOQ: 1 Piece -
NWT-3201 Plug-Pull Force TesterUS$ 1299 - 1300MOQ: 1 Piece
-
NWT-3101 Plug-pull Life TesterUS$ 1199 - 1200MOQ: 1 Piece
-
NWT-8101 Capacitive Pannel Switch TesterUS$ 1199 - 1200MOQ: 1 Piece
-
NWT-1301 Key Switch Force TesterUS$ 1299 - 1300MOQ: 1 Piece
【Product Introduction】

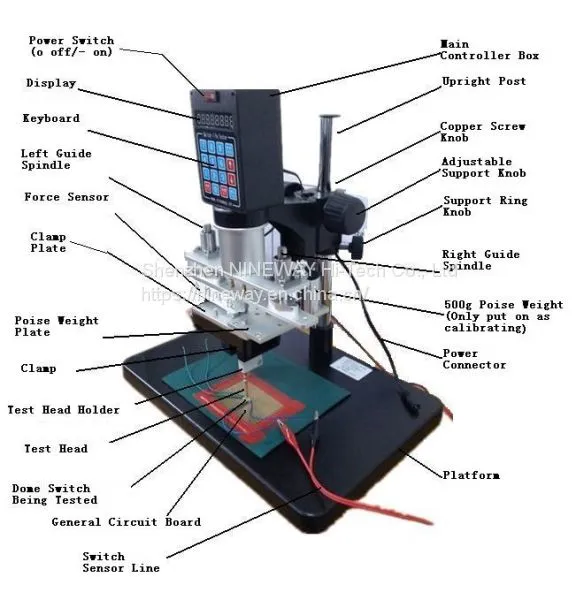

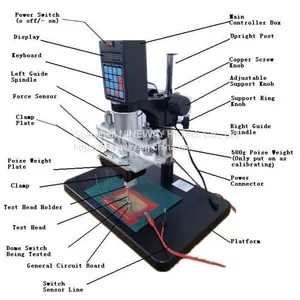

NWT-1301 is used to test actuation force for various kinds of key switches
Actuation force is minimum force to push switch just finishing contact
[Specification]
· 1. Max cycle distance: 1-8mm；
· 2. Test Speed: 12-23 cycles/min
· 3. Max linear Force: 2kg, Max displayed force up to 5kg
· 4. Force Resolution: 1g , which can be calibrated by 500g poise weight
· 5. Driving: Step Motor
· 6. Dimension: 380*260*400 mm
· 7. Weight: 6 kg
· 8. Power Supply: 12-23 cycles/min
· 9. Noise: 30 db
· 10. Power Consumption: 15 W
Manufacture: Shenzhen Nineway Hi-tech Co., Ltd
