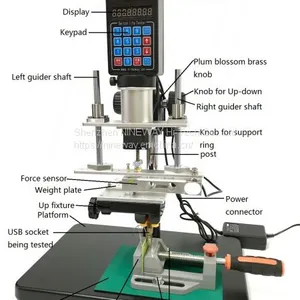

NWT-3201 plug-pull force tester is used for detectingplug and socket like USB connector, SD card and the card holder, and the any otherplug-pull socket force less than 5 kg etc.
Specification
2 2.1 Reciprocatingstroke: 1-40mm
2 2.2 Testing Speed: 12~23 times/minute (there are 3gears to choose, and factual times is related to stroke distance)
2 2.3 Max test force: 5 kg (Can be up to 10 kg if customizedon requirement of client)
2 2.4 balance weight is be used to calibrate force parameterof machine
2 2.5 Automatic getsaverage force for continues 3 time measure.
2 2.6 Driving mode: Stepping motor
2 2.7 Weight: 6kg
2 2.8 Devicedimension: 380mmX260mmX400mm
2 2.9 Power: 12V DC [adapter: input 220V/50HZ,output 12V/2A]
2 2.10 Noise: 35Db
2 2.11 Power Consumption: 10W
