Sewage treatment waste water well screens Vee wedge wire slotted screen

FOB Price

USD $15.6 - $85.8 / Meter

10 Meters(Min.Order)

Port Qingdao Port
Payment TermsT/T L/C Other
Delivery Detail10 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	OASIS	Place of Origin	China
Model Number	219mm stainless steel well screen	Type	Other, well filter
Certification	ISO9001	After-sales Service Provided	No overseas service provided
Warranty	OASIS	Medium Material	Other, Stainless steel

Product Description

Sewage treatment waste water well screens Vee wedge wire slotted screen

Product Name	Sewage treatment well screen
Brand	OASIS
OD	325mm
Slot	1mm
Length	2500mm
Material	316L

Sewage treatment well screen

Material: 304 302 304L 316 316L

2.diameter:33-600mm
3.minimum slot:0.05mm
4.Unit length:1-5.8m
5.STC thread or welded

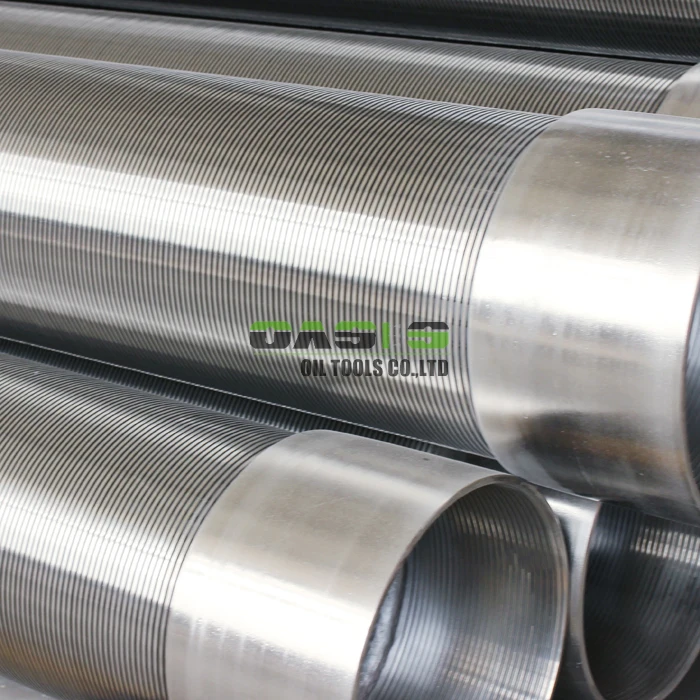

V-shape Water Well Screen is used for oil and water exploiting. They consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded, so V-shape Water Well Screen has sturdy constriction and good mechanical property.
The V-shape section plane can avoid blockage, and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so V-shape Water Well Screen can filter sand better.
Material: stainless steel and carbon steel
Diameter: 1-30inch
Minimum slot: 0.01mm
Wall thickness: 4mm or 6mm
Standard length: 5.8-6meters
Supply capacity: 6800meters per month

Application(Useage):

It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treat-ment, water sofrening treatment, the peteoleum industry.
