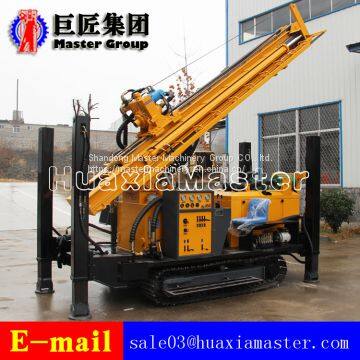

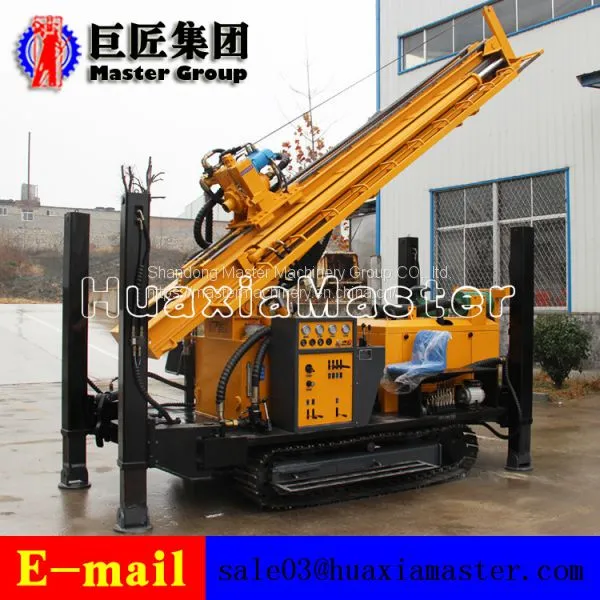

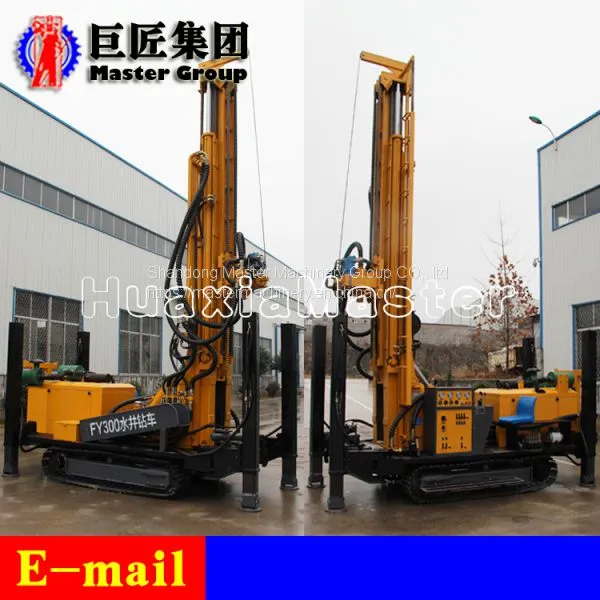

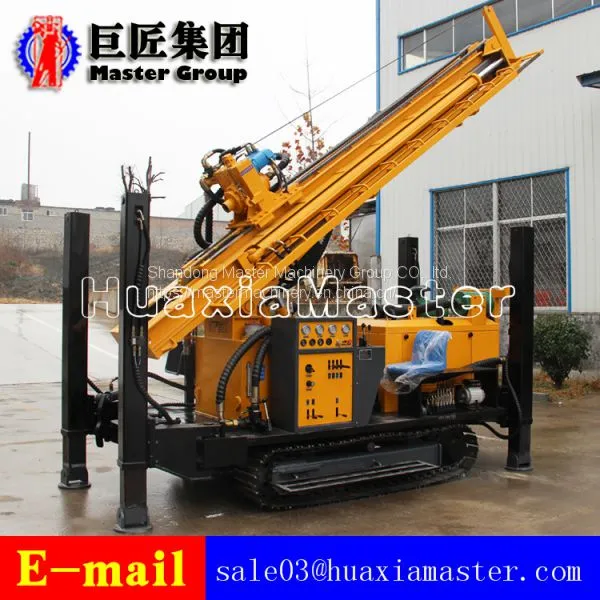

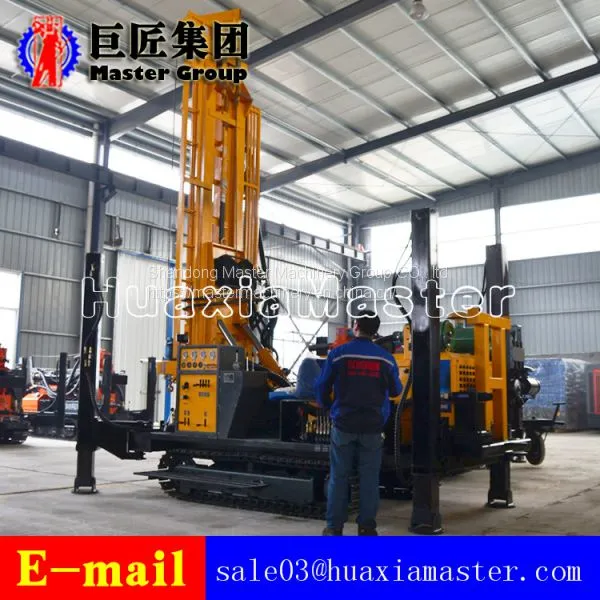

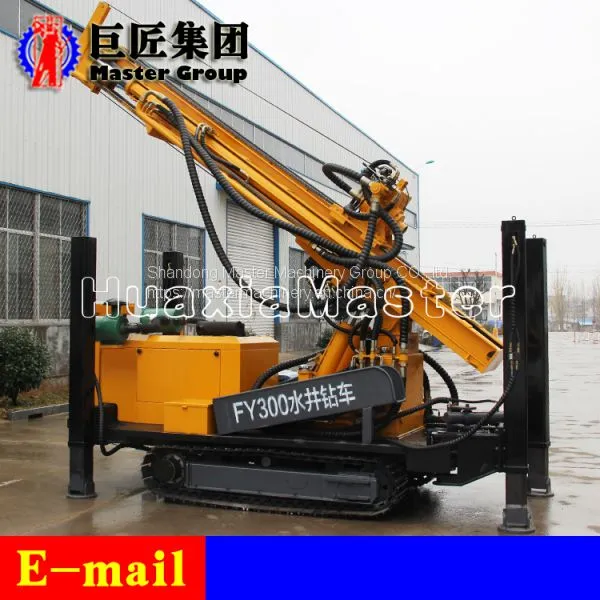

Help Center600 Meters Air Driven Power Hammer Boring Machine Water Well Drilling Rig For Sale
Related Products
-
HZ-200Y Diesel Power Hydraulic Press Rotary Diamond Rock Core Sample Machine For SaleUS$ 4000 - 8000MOQ: 1 Set -
Diesel Engine Wheeled Mobile Hydraulic Rotary 600M Water Well Drilling Rig On PromotionUS$ 6000 - 7500MOQ: 1 Set
-
Made In China YQZ-30 Hydraulic Rock Core Machine Diamond Core Drilling Rig For SaleUS$ 4000 - 8000MOQ: 1 Set
-
Diamond Core Drilling Rig Hydraulic Press Rock Sample Machine Drilling Rig For SaleUS$ 4000 - 8000MOQ: 1 Set
-
KQZ-180D Gas and Electricity Linkage Dive Drilling Machine for SaleUS$ 4000 - 6000MOQ: 1 Set
Keywords:water well drilling rig, pneumatic rock drill, pneumatic press, crawler drilling rig, drilling machine water
1.The applications of FY600 crawler type gasoline engine drilling rig
l civil engineering drilling
l geothermal drilling
l drilling with large diameter and deep drilling footage
l fast, flexible and efficient.
2.The specifications of FY600 crawler type gasoline enigne drilling rig
Model |
FY600 |
|
Gross weight |
T |
12 |
Dimension |
mm |
5400*2100*2850 |
Aperture |
mm |
140-350 |
Drilling depth |
m |
600 |
Feed stroke |
mm |
6600 |
Travel speed |
km/h |
2.5 |
Grade ability |
max. |
30° |
Rising height from ground |
mm |
250 |
Wind pressure |
mpa |
1.7-3.5 |
Air consumption |
m³/min |
17-35 |
Engine power |
kw |
115 |
Rotation speed |
rpm |
45-110 |
Rotation torque |
n.m |
8500-10050 |
Shandong Master Machinery Group Co.,Ltd.
Sales Manager:Laura
Whatspp: 008618865479503
Website:
Send Inquiry to This Supplier
