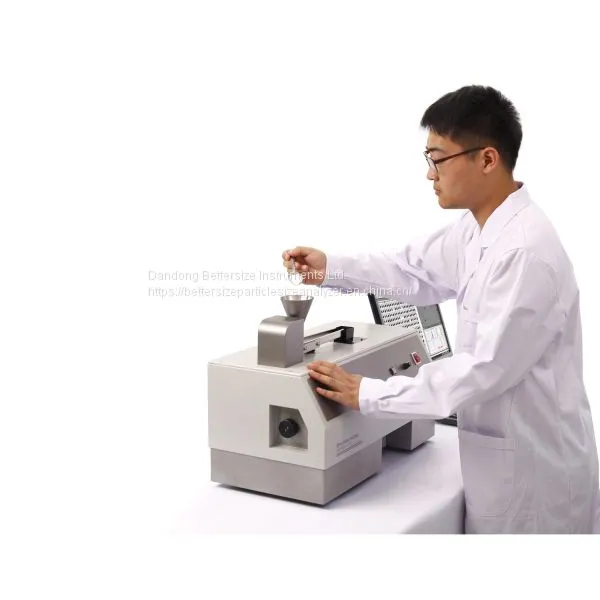

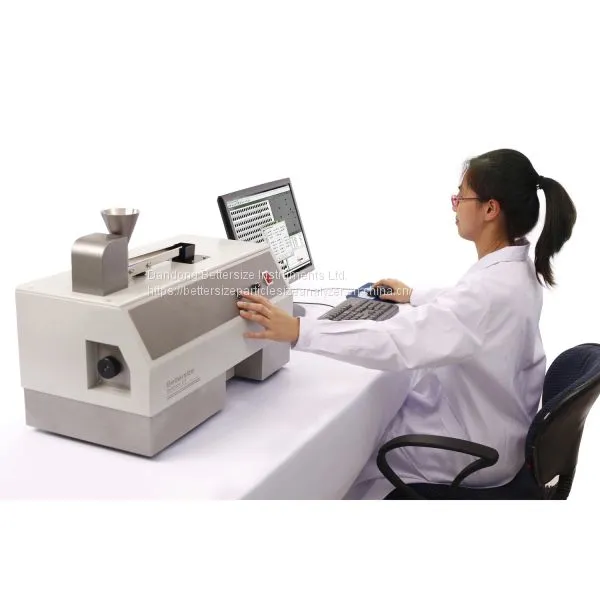

Dry Dispersion Dynamic Image Particle Size Analyzer

Product Description

BeVision D1 is a microscopic image particle size and shape analysis system. The dry dispersion aims at coarser and even millimeter range powder materials. The wet dispersion applies to micron range powder materials. High-speed CCD camera and multi-threading software of BeVision D1 allow quick identification of particles and obtain stable and accurate measuring results.

Features

- Both dry and wet dispersion measurement.

- Intelligent software can identify 10000 particles per minute. Automatic recognition of agglomerated powder to achieve accurate results.

-Analysis: particle size distribution, maximum particle size, content for a specific interval, aspect ratio, circularity and radius-thickness ratio.

- High-speed camera - 120 images per second, microsecond exposure time, avoid trailing phenomenon in moving particle.

- Sampler: the dry sampler uses electromagnetic vibration feeding, gravity-driven dispersion, which is suitable for coarse samples and agglomerated particles; the wet sampler uses an external circulating dispersion system with ultrasonic dispersion and centrifugal circulation.

Parameter

-Measurement Range: 30-10000 µm (dry dispersion)/2-3500 µm (wet dispersion)

-Magnifications: 9-300 times

-Repeatability: ≤1%

-Accuracy: ≤1%

-Particle Recognition Speed: ≥10000 particles/min

-High Speed CCD: 120 frm/ s

-Analytical Items:

(1) particle size: including particle size distribution, typical data, maximum particle size,  particle contents for a specific interval, particle contents above or below certain particle size ;

(2) particle shape : aspect ratio, circularity, particle images ;

-Export Items:

Including the original parameter(such as sample information, testing information,etc.), analytical data ( including the particle size distribution, aspect ratio, circularity, and typical data, etc), distribution graphics ( such as interval distribution histogram, cumulative distribution curves, etc.)

-Voltage: AC 220 V, 50/60 Hz

-Dimension, Weight: 610 mm x 300 mm x 440 mm, 26 kg

Packing

1. Using the thickened cartons;

2. Thick foam board and buffer air bags are used inside of the carton to protect the instrument.

3. Using the wooden cases made by the plywood outside the carton to further protect the instruments;

4. After the product is packaged, we will carry out the package drop test to further ensure the safety of the instrument for long distance transportation.

Our Services

Within One Year Warranty:

1. Free spare parts.

2. Bettersize sends engineer to maintain the instrunment(User is supposed to pay the round-trip tickets).

3. Send the instrument back for maintenance (Both sides share the freight).

Out of Warranty:

1. If  there is any breakdown resulting from misuse or out of warranty, the two sides should negotiate for the site & method of maintenance. Buyer is supposed to pay the expense.

2. Consumable items are not guaranteed.
