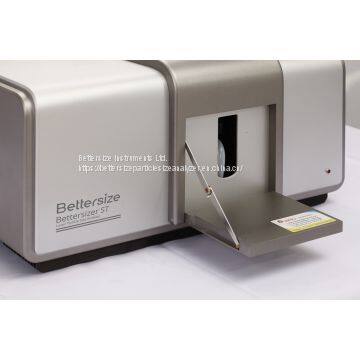

Bettersizer ST - Economical and Compact Laser Particle Size Analyzer

Product Description

Bettersizer ST is a fully automated wet dispersion particle size analyzer with smart operation system. Using DLOS with automated analysis procedure, Bettersizer ST provides stable and reliable testing

results with minimum user intervention. The compact footprint saves valuable work space for factories and laboratories.

Features

- Smart Analysis of Particle Size

- Mie Scattering Theory

- 86 Photodetectors

- Ultrasonic Wet Dispersion

- SOP Full-automatic Testing

- Dual Lenses Optical System

- Automatic Centering Function

- Automatic Circulation and Dispersion

- Accuracy Calibration Function

- Automatic Water Supply

- Real-time Test Result Monitor

- Automatic Water Level Monitor

- Dew Point Temperature Monitor

- Anti-corrosive Pump Design

- Multi-language Software System

- Test Report Conversion

Parameters

Measurement Range:0.1-1000 um

Sampling Method: Ultrasonic Wet Dispersion Built-in Automatic Circulation and Automatic Dispersion Sampling System (Can be upgraded to solvent type.)

Repeatability Error:≤0.5%

Accuracy Error:≤0.5%

Measuring Principle:Mie Scattering Theory

Measuring Way:SOP (Standard Operation Program)

Fastest Measuring Speed:≤10 s

Laser Light Source:Imported Semiconductor Laser

Optical Systems:Dual lenses , Automatic Centering , Automatic Testing

Dew Point Temperature Testing:yes, the instrument has this function.

Operating System:Win XP / Win 7/ Win 8/ Win 10

Connection Port:USB 2.0 or USB 3.0

Photodetector Quantity:86 pcs

Ultrasonic Disperser Power:50 W

Circulation Pool Capacity:600 ml

Circulating Flowrate:3000 - 8000 ml/min

Voltage:AC220V , 50/60Hz

Volume , Weight:660x420x320mm , 38 kg

Packing

1. Using the thickened cartons;

2. Thick foam board and buffer air bags are used inside of the carton to protect the instrument.

3. Using the wooden cases made by the plywood outside the carton to further protect the instruments;

4. After the product is packaged, we will carry out the package drop test to further ensure the safety of the instrument for long distance transportation.

Our Service

Within One Year Warranty:

1.Free spare parts.

2.Send engineer to maintain (User is supposed to pay the round-trip tickets).

3.Send back to maintain (Both sides share the freight fee).

Out of Warranty:

1.If there is any breakdown resulting from misuse or out of warranty, the two sides should negotiate for the place & method of maintenance. Buyer is supposed to pay the expense.

2.Consumable items are not guaranteed.

About Us

Dandong Bettersize Instruments Ltd was founded in 1995 and is the largest manufacturer of particle size instruments in China. Currently, there are nearly 150 employees. Having achieved 43 patents (including 15 invention patents); 16 software Copyrights and one trademark. Overseas agents: the USA, Germany, South Korea, Russia, India, Brazil, Argentina, Vietnam, the Czech republic, Mexico, Poland, Pakistan, Malaysia, Indonesia, Turkey, Italy, Taiwan, Hong Kong... Domestic users are distributed in 32 provinces and cities across China and International users are located in 50 countries on four continents, with a total of more than 10000 users, and the quantity is still increasing greatly.
