1.Product Description:
Automatic Analysis of Powder Characteristics

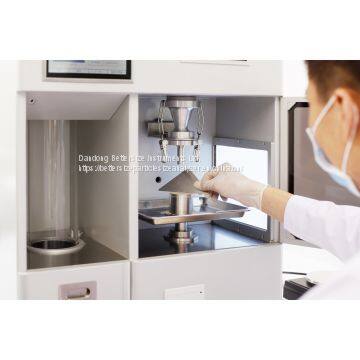

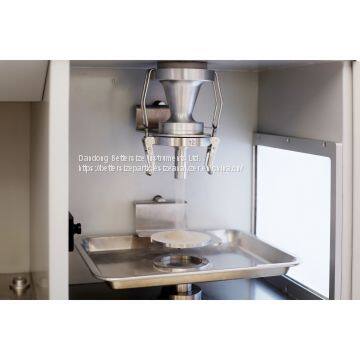

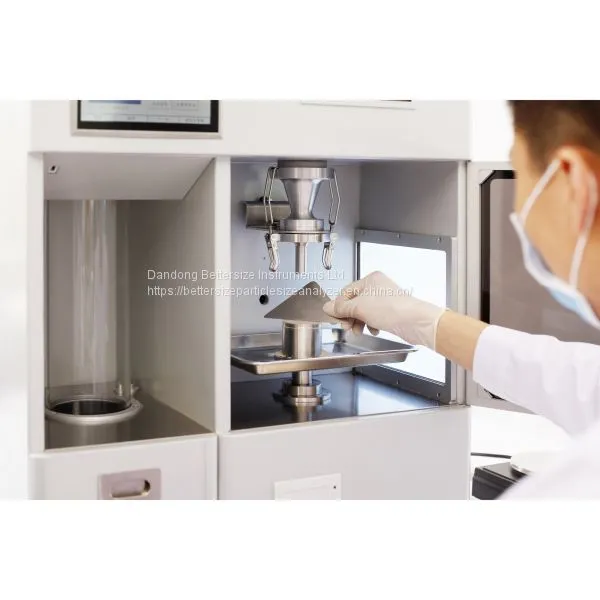

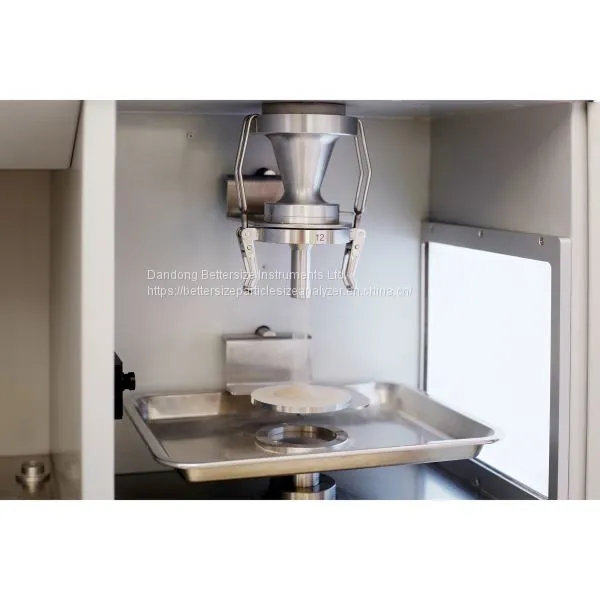

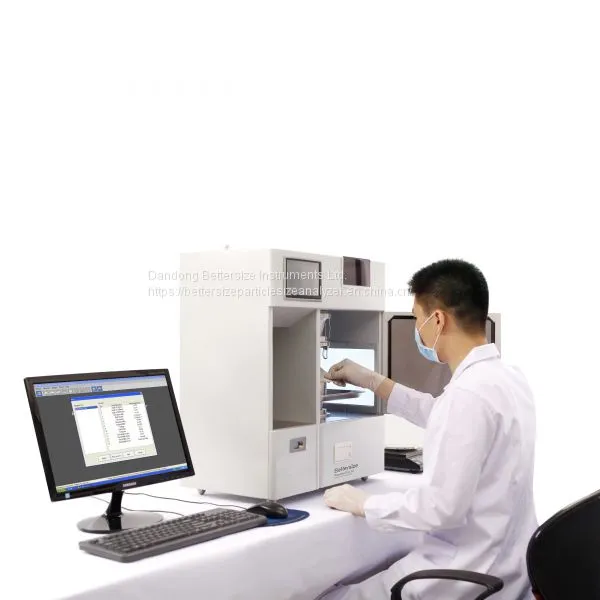

PowderPro A1 is a smart powder characteristics tester to measure repose angle, collapse angle and other powder characteristics. It uses image technology and automatic control including touch screen control and a mobile App connectivity. PowderPro A1 is an essential tool to understand and research powder materials.
2.Measurement Object:
Total 14 items: angle of repose,angle of fall,angle of difference,angle of spatula,voidage,uniformity,cohesiveness,bulk density,tapped density,compressibility,dispersibility,flowability index,floodability index,sieve size.
3.Features:
- Automatic measurement: images are captured with CCD and are processed to obtain the angle of response, collapse angle, flat plate angle and other parameters.
- Patented rotary vibration technology to ensure smooth surface of the powder and to improve measurement accuracy.

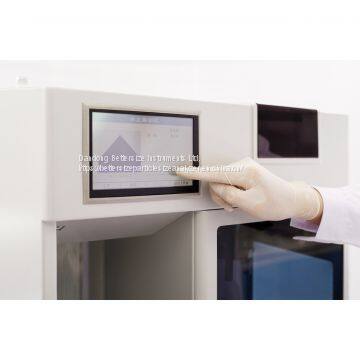

-Multiple control units meet different needs: users can control the instrument with a touch screen, computer or through the mobile phone application.
-Measured parameters: angle of response, angle of collapse, flat plate angle, sliding angle, tap density, the dispersion degree of bulk density, sieve size.
- Calculeted parameters: angle of difference, compressibility, voidage, flowability index, jet index.
4.Parameter:
Angle Range:0-90°
Angle Testing Method:Image method. Image of Rest Angle, collapse Angle or flat Angle is taken by CCD, and accurate angle value is obtained by software identification.
Repeatability Error:≤3%
Tap Density Frequency:50-300 times/min (continuously adjustable).
Tap Density Amplitude:3mm or 14mm
Standard:Chinese Standard:
GB/T16913-2008 4.5
GB/T1479.1-2011
GB/T5162-2006
American Standard: ASTM D6393-14
United States Pharmacopeia: USP32-NF27
European Pharmacopeia: EP7.0 07/2010:20934
Control Terminal: 2 kinds, namely tablet PC and PC. Various control methods, test process automation, standardization.
Voltage:AC220V , 50/60Hz ,200W
Volume , Weight: 580x350x650 mm , 37 kg
5.Packing:
1)Using the thickened cartons;
2)Thick foam board and buffer air bags are used inside of the carton to protect the instrument.
3)Using the wooden cases made by the plywood outside the carton to further protect the instruments;
4)After the product is packaged, we will carry out the package drop test to further ensure the safety of the instrument for long distance transportation.
6.Our Service:
Within One Year Warranty:
1.Free spare parts.
2.Send engineer to maintain (User is supposed to pay the round-trip tickets).
3.Send back to maintain (Both sides share the half freight).
Out of Warranty:
1.If there is any breakdown resulting from misuse or out of warranty, the two sides should negotiate for the place & method of maintenance. Buyer is supposed to pay the expense.
2.Consumable items are not guaranteed.
7.Company Information:
Dandong Bettersize Instruments Ltd was founded in 1995 and is the largest manufacturer of particle size instruments in China. Currently, there are nearly 150 employees. Having achieved 43 patents (including 15 invention patents); 16 software Copyrights and one trademark. Overseas agents: the USA, Germany, South Korea, Russia, India, Brazil, Argentina, Vietnam, the Czech republic, Mexico, Poland, Pakistan, Malaysia, Indonesia, Turkey, Italy, Taiwan, Hong Kong... Domestic users are distributed in 32 provinces and cities across China and International users are located in 50 countries on four continents, with a total of more than 10000 users, and the quantity is still increasing greatly.
