General Information:

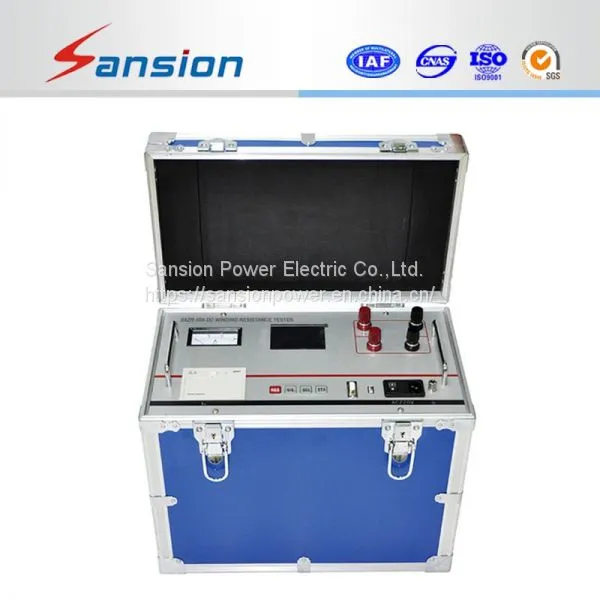

SXZR Series DC Winding Resistance Tester is designed specifically to measure DC resistance values of transformer windings and any DC resistance of an inductive device.
Features:
√ Controlled by high speed SCM, easy to use.
√ Selectable current positions, large measurement range, suitable for the DC resistance values measuring of large-medium transformers.
√ Full protection functions to ensure safety and availability.
√ Auto discharging and discharging indicator.
√ Intelligent power management technology, small consumption, less heating.
√ True color LCD screen.
√ Built-in thermal printer.
√ 1000 groups' data storage, no lost even power failure.
√ RS232 and USB interface, easy communicate with PC and U disk.
Specifications:
| Output current: | |
| Max.resolution: | 0.1μΩ |
| Measuring range: | 100μΩ~1Ω (20A) 500μΩ~2Ω (10A) 1mΩ~4Ω (5A) 2mΩ~8Ω (2.5A) 5mΩ~20Ω (1A) 10Ω-20KΩ ( |
| Accuracy: | ±0.2%(±2digits) |
| Working temperature: | 0~40ºC |
| Working humidity: | |
| Oversize: | L325mm X W240mmX H275mm |
| Weight: | 13KG cable box: 5KG. |
Warranty: One year quality guarantee after shipment.
