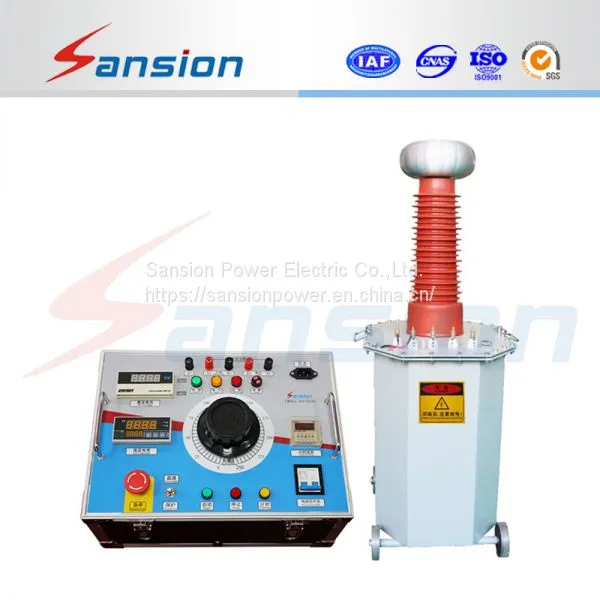

10kVA 100kV High Voltage Transformer AC DC Hipot Test Equipment
General information:
SXTC-M Series AC/DC Hipot Test Set is suitable for hipot dielectric withstand test on various power electric products, units, insulating material and etc.
Features:
√ Manual/Auto controlling.
√ Oil, dry, SF6 gas type transformer is seletable according to user's requirements.
√ High anti interference ability.
√ High voltage (HV) voltage, Low voltage (LV) current, time, three channels testing ways.
√ Real time monitoring HV voltage, LV current.
√ Full protection functions: over-current, zero-starting sound light alarm, power switch protection.
√ New type time rely, wider time range (1S ~ 99H).
√ New type current rely, more precise, more reliable.
√ 5kVA and above Testing Transformer with movable iron wheel. Light weight, small size, easy to move, superior performance.
√ The control tester can be designed to box type, table type, or cabinet type according to user's testing capacity:
5KVA or below, Box type
10KVA or above Table type
50KVA or above Cabinet type.
√ Add rectifying installation to support AC/DC function .(option)
Specifications:
√ Input voltage: AC 220(380)V (customized)
√ LV output: AC 0-250(430)V
√ LV current: 0-5/10/15/50A (customized)
√ Output capacity: 0-3/5/10/15 kVA (customized)
√ HV output: 0-50/100/150/200 kV (customized)
√ HV current: 0-50/100/150/200/500/1000/2000mA (customized)
√ Timing range: 0-9999S
√ Working temperature: -20ºC to 50ºC
√ Voltage precision: ≤1.5% ±1 digit (F.S)
√ Current precision: ≤1.5% ±1digit (F.S)
Main parameters of SXTC-M Control Unit:
| Model | Input Voltage (V) |
Capacity (KVA) |
Rated Output | HV voltmeter KV/V |
Oversize m3(L×W×H) |
|
| Voltage(v) | Current(A) | |||||
| SXTC-M05 | 220 | 0.5 | 200 | 2.5 | 50/100 | 20×30×20 |
| SXTC-M105 | 220 | 1.5 | 200 | 7.5 | 50/100 | 26×36×24 |
| SXTC-M3 | 220 | 3 | 200 | 15 | 50/100 | 26×42×24 |
| SXTC-M6 | 220 | 6 | 200 | 30 | 50/100 | 60×45×37 |
| SXTC-M6 | 220 | 6 | 200 | 30 | 50/100 | 53×40×60 |
| SXTC-M10 | 220 | 10 | 200 | 50/25 | (50/100)/100 | 53×40×65 |
| SXTC-M15 | 380 | 15 | 400 | 37.5 | (50/100/150)/100 | 53×40×70 |
| SXTC-M20 | 380 | 20 | 400 | 50 | (50/100/150)/100 | 53×43×84 |
| SXTC-M25 | 380 | 25 | 400 | 62.5 | (50/100/150)/100 | 53×45×90 |
| SXTC-M30 | 380 | 30 | 400 | 67.5 | (50/100/150)/100 | 65×55×115 |
| SXTC-M40 | 380 | 40 | 400 | 100 | (50/100/150)/100 | 70×60×115 |
| SXTC-M50 | 380 | 50 | 400 | 125 | (50/100/150)/100 | 70×60×115 |
The rated output current is 5 min continuous working.
More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation. Thank you!
