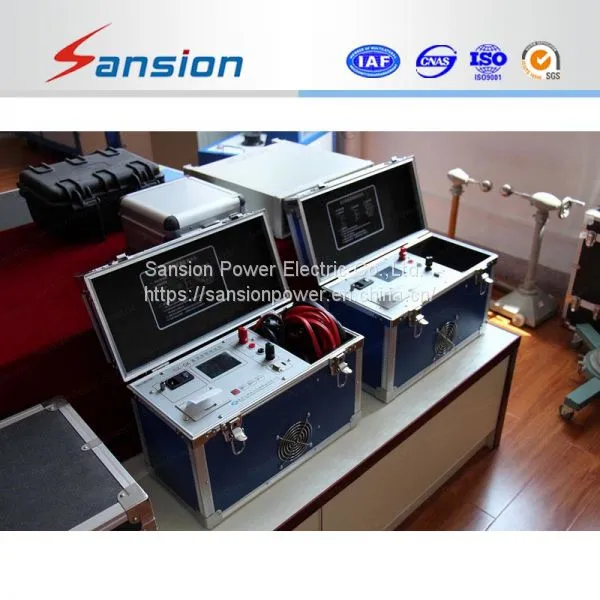

50A Transformer DC Winding Resistance Meter
General Information:
SXZR Series DC Winding Resistance Tester is designed specifically to measure DC resistance values of transformer windings and any DC resistance of an inductive device.
Features:
√ Controlled by high speed SCM, easy to use.
√ Selectable current positions, large measurement range, suitable for the DC resistance values measuring of large-medium transformers.
√ Full protection functions to ensure safety and availability.
√ Auto discharging and discharging indicator.
√ Intelligent power management technology, small consumption, less heating.
√ True color LCD screen.
√ Built-in thermal printer.
√ 1000 groups' data storage, no lost even power failure.
√ RS232 and USB interface, easy communicate with PC and U disk.
Specifications:
| Output current: | |
| Max.resolution: | 0.1μΩ |
| Measuring range: | 100μΩ~1Ω (20A) 500μΩ~2Ω (10A) 1mΩ~4Ω (5A) 2mΩ~8Ω (2.5A) 5mΩ~20Ω (1A) 10Ω-20KΩ ( |
| Accuracy: | ±0.2%(±2digits) |
| Working temperature: | 0~40ºC |
| Working humidity: | |
| Oversize: | L325mm X W240mmX H275mm |
| Weight: | 13KG cable box: 5KG. |
Warranty: One year quality guarantee after shipment.
More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation. Thank you!
