General information:
Also called: DC Resistance Meter, DC Meter, Transformer DC Resistance Tester, Inductive Load DC Resistance Tester.

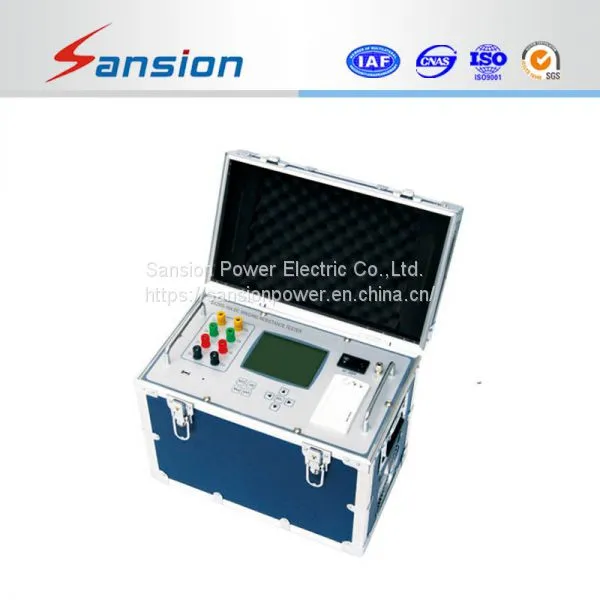

SXZRS-10A DC Winding Resistance Tester (Three Phases) is applied for DC resistance three phases measuring synchronously of large capacity transformer winding. It is also can regulate and tap connect the load regulating transformer directly without discharging.
Features:
√ Small size, light weight.
√ English interface, easy to operate.
√ Measuring fast and accurately.
√ Auto discharging and indicating, safe and reliable.
√ The neutral outgoing winding test at Y connection, the tester can adopt three phase synchronous measurement method, to test the DC resistance of A0, B0, and C0.
√ Counter potential protecting function.
√ 500 groups' storage.
√ Large LCD screen, build-in printer.
Specifications:
| Output current: | Three phase test: 2*10A, 2*5A, 2*2A |
| Single phase test:20A, 10A, 2A | |
| Measuring range | 2*10A:500μΩ~500mΩ 2*5A: 1mΩ~1Ω 2*2A: 2.5mΩ~2.5Ω 20A: 250μΩ~1Ω 10A: 500μΩ~2Ω 2A: 2.5mΩ~10Ω |
| Measuring precision | ±0.2%(±2digits) |
| Data storage | 500 groups |
| Max. resolution | 0.1μΩ |
| Power source | AC 220V±22V,50Hz±1 Hz |
| Working condition | Temperature: -10ºC~50ºC ≤85% RH, no condensation |
| Oversize | 420mm×250mm×340mm |
| Weight | 13kg |
Warranty: One year quality guarantee after shipment.
More details please kindly contact with Sansion Power.Thank you!
