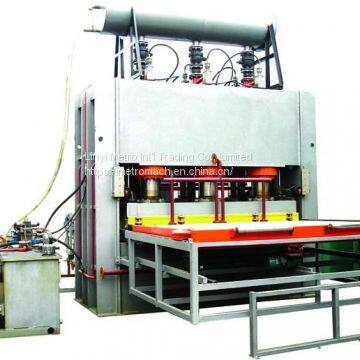

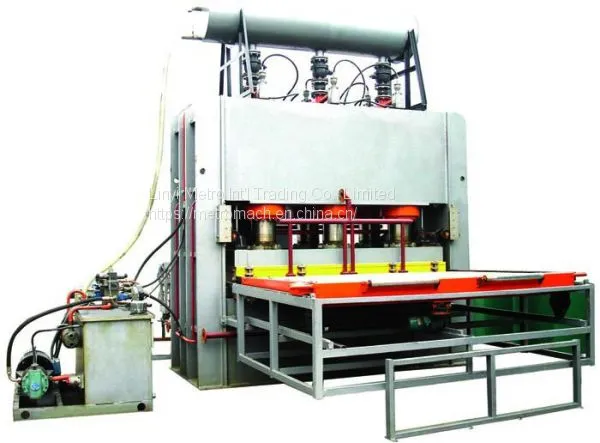

Help CenterHydraulic Short Melamine Lamination Press Machine for MDF Board
Related Products
-
Automatic Paper Sticking Lamination MachineUS$ 14000 - 18000MOQ: 1 Set -
Hydraulic Wood Veneer 9ft Spindle Rotary Peeling MachineUS$ 10000 - 20000MOQ: 1 Set
-
Hydraulic Wood Log Rounder 4ft Debarker MachineUS$ 6000 - 7000MOQ: 1 Set
-
Hydraulic Wood Log Rounder 8ft Debarker MachineUS$ 6000 - 10000MOQ: 1 Set
-
Bark Crusher Type Wood Log Rounder 4ft Debarker MachineUS$ 4000 - 9000MOQ: 1 Set
Double sides Short Cycle laminating hot press is mainly used to produce two sides decorated board. suitable for laminating melamine paper,wearable paper and balance paper in both sides of HDF board to produce laminate flooring.
1. Aging treatment: The steel used in our lamination machine was after aging treatment, that's make our material more uniform stress.
2. Frame mechanism: The closed frame is strengthened, which will ensure its working accuracy by appropriate design, reinforced mechanical properties and machining each surface.
3. Oil cylinder adopts the advanced sealing technology, cast-steel cylinder body, chill-iron plunger and good machining accuracy, all of which will extend the working life of cylinder.
4. Adopt PLC control and touch screen. easily set the time and pressure.
Technical Parameters
| Total pressure | Main cylinder Diameter | Number of cylinders | panel size |
| 1200Ton | φ320mm | 6pcs | 4x8ft/9ft, 5x8ft, 6x8ft, 6x9ft, 7x9ft etc |
| 1400Ton | φ340mm | 6pcs | |
| 1600Ton | φ320mm | 8pcs | |
| 1800Ton | φ340mm | 8pcs | |
| 2400Ton | φ400mm | 8pcs | |
| 2800Ton | φ420mm | 8pcs |
