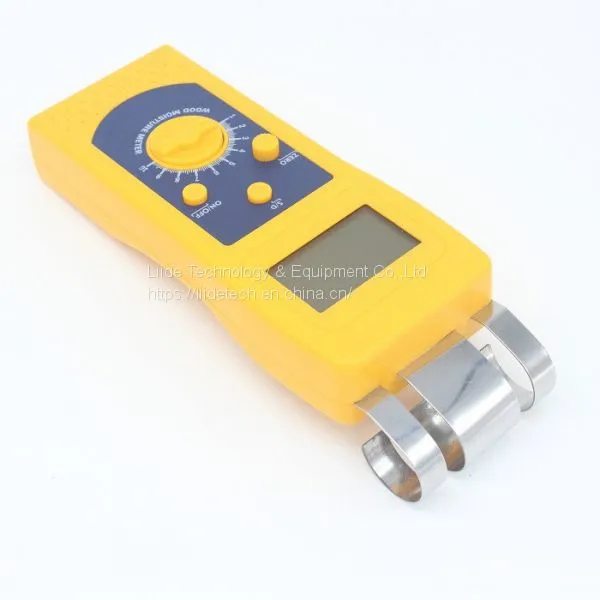

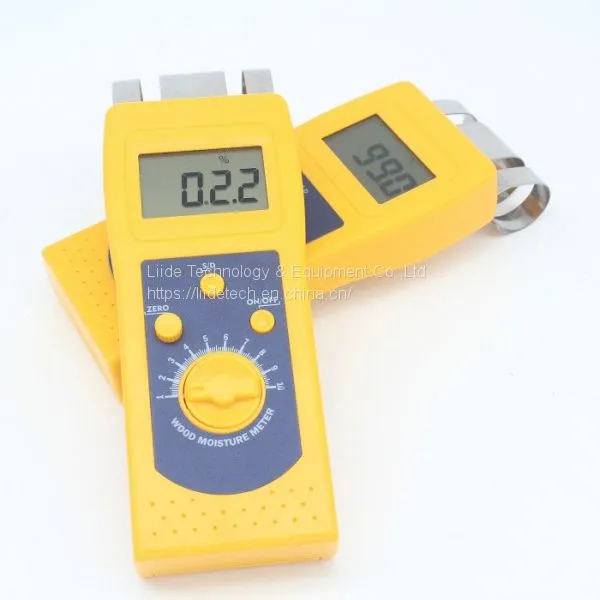

LM16W Portable Handhold Pinless Digital Wood Moisture Meter
1.Product Introduction
wood moisture meter is a digital moisture testing equipment with high-performance
based advanced technology. It is used to measure different kinds of woods, timber industry testing of water in the production process.
2. Operation Steps:
1) Ensure the tested object thickness is/over 50mm.
2) Holding the lower part of the instrument, keep it parallel to the tested object.
3) Press three sensor probes onto the tested object, when the data is stable, then it is the moisture of the tested object.Then instrument will show test date, too.
3.Product Feature:
High-frequency
LCD back light
High precision
Easy Operation
Quick response
High efficiency
Small size
Light in weight
Portable
4.Specifications:
Moisture Range 0.1%-80%
Operate temperature: -5°C-60°C
Humidity : 5%-90%RH
Working Principle : High-frequency electromagnetic induction
Scan Thickness : 50mm
Accuracy : ± 0.5%
Resolution : 0.1/0.01
Response time : 1s
Powder : 9V battery
Screen : Backlight Digital LCD Screen
Gear Table : 1 to 10
Dimensions : 200mm×65mm×27mm
Net Weight: 200 g
4.Application:
used in measurement of various
timber, wood, furniture and other objects without the wood surface or internal perforation.
5.Notice:

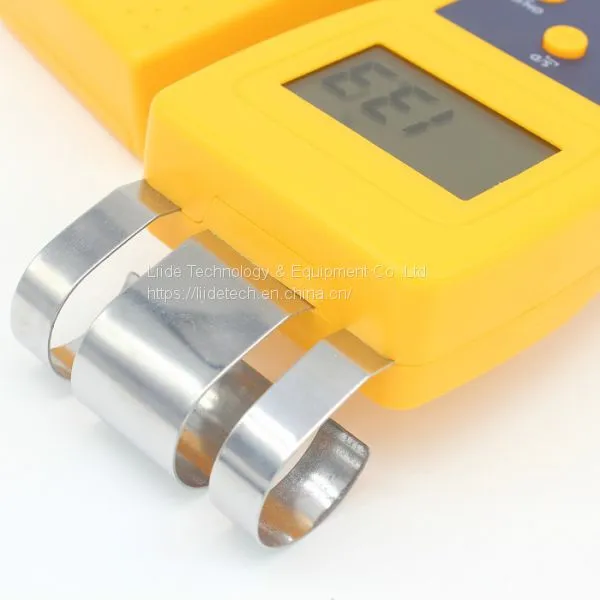

1) Please keep three probes gently pressed onto the surface of the tested object during measurement.
2) High frequency is with strong penetration, metal object may cause inaccurate measurement, so please keep the probe away from metal object or other inductive object during measurement.
3) When there is no display or zero point can not be adjusted within ±00.5, or date is not stable, please replace a new battery.
If replacing battery doesn’t work, please turn open the battery cover, find the zero knob, adjust the potentiometer in the hole to make the zero point within 00.5.
