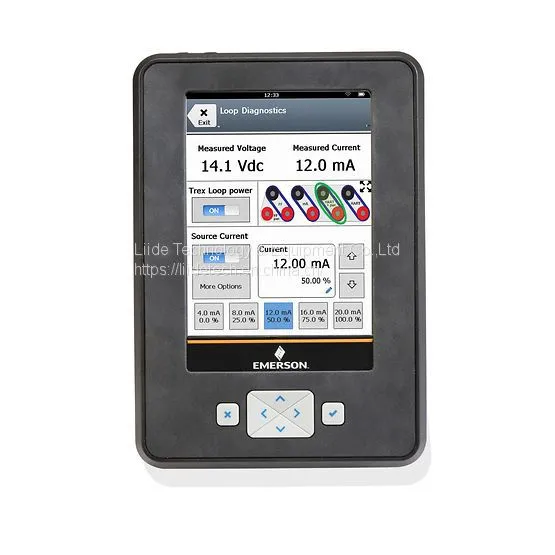

Emerson AMS TREX Communicator TREXCHPNAWS1S Hart communicator basic type
TREXCHPNAWS1S
Trex: base trex platform
Includes AC Adapter, USB Cable, Lead Set with connectors, Hand Strap, Quick Start Guide and Resource DVD. ValveLink Mobile application available at no charge once Trex unit is activated.
C: Device Communicator communication module
H: HART Application
P: Rechargeable Li-Ion Power Module
NA: No Approval
W: Wireless
Includes Bluetooth, WiFi, and NFC radios. Available only in countries where spectrum approval has been obtained.
S1: Standard Support (1 Year)
S: carrying case
Features:
Intrinsically Safe: ATEX; CSA (US/Canada); IECEx; FISCO.
Commission and validate devices faster.
Quickly fix issues in the field with advanced device diagnostics;
Configure and test valves inline;
Improve efficiency with a modern,intuitive user interface.
Specifications:
Microprocessor: 800 MHZ ARM Cortex A8/NXP
Memory Internal Flash: 2 GB NAND and 32 GB extended flash.
RAM: 512 MB DDR3 SDRAM.
Display: 5.7 in (14.5 cm) color VGA resistive touchscreen, 640 x 480 pixel.
Battery: Rechargeable Lithium- Ion Power Module.
Operating time: 8+ hours of typical use.
Charge time: 3-4 hours.
LED: 6 LEDs. Five LEDs for indicating the progress of charging. One LED to indicate the AC
adapter is charging the power module.
Battery charger: Barrel Round Plug Tip, Input voltage 90-264 VAC, 47-63 Hz, Cables included with US, EU, UK, and AU plugs.
Wirelss approvals: FCC, CE, RED and IC Approvals;Certified for use in over 100 countries;
Bluetooth 2.1, Range up to 10 m;
Wi-fi 802.11 b/g, range up to 33m;
Active NFC, range up to 20cm.
Usage: -20 to 55°C (-4 to 122°F)
Tested to survive a 1-meter drop test onto concrete
IP54
ATEX, CSA, IECEx
Models:
TREXCHPNA9S3S、TREXCHPNA9P1S、TREXCHPNA9P3S
TREXCHPNAWS3S、TREXCHPNAWP1S、TREXCHPNAWP3S
TREXCHPKL9P1S、TREXCHPKL9P3
TREXCHPKLWS1S、TREXCHPKLWS3S、TREXCHPKLWP1S
TREXLHPNAWS1S、TREXLHPNAP3S、TREXLHPKL9S1S
TREXLFPNA9P1S、TREXLFPNA9P3S
TREXLFPNAWP1S、TREXLFPNAWP3S
TREXLFPKLWS1S、TREXLFPKLWS3S、TREXLFPKLWP1S、TREXLFPKLWP3S
