Air-Driven High Pressure Pump
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
AILESEN
Place of Origin:
China
Model Number:
AHP3500
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
AILESEN
Place of Origin
China
Model Number
AHP3500
Application
Other, Hydraulic power
Fuel
Other, Clean hydraulic oil
Power
Hydraulic
Usage
Other, Water Or Hydraulic Oil
Theory
Reciprocating Pump
Standard or Nonstandard
Standard
Structure
Piston Pump
Pressure
Other, 350MPa

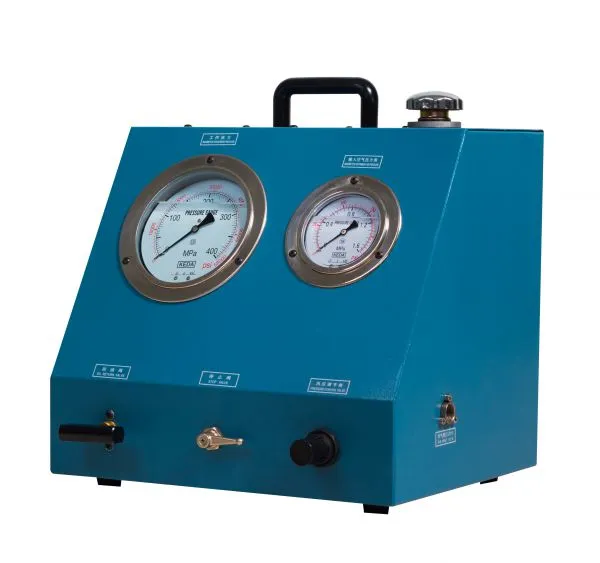

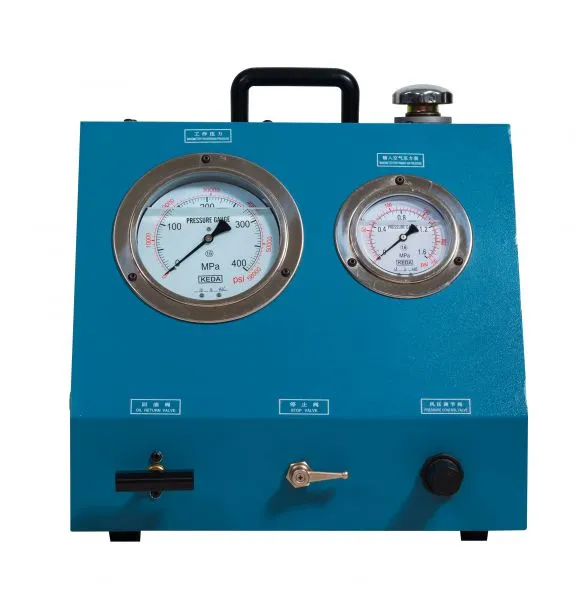

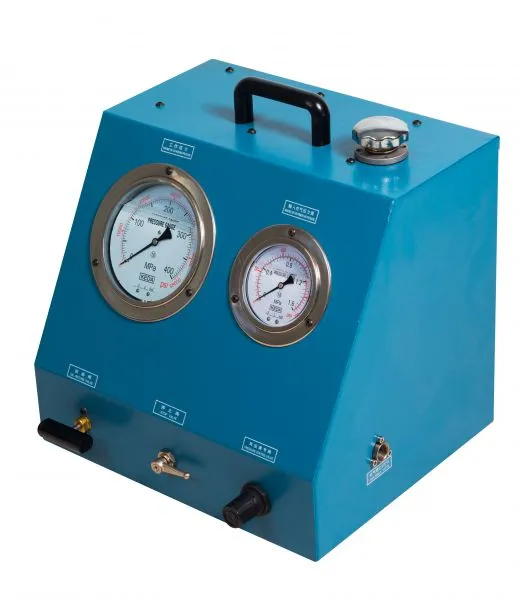

Air-Driven High Pressure Pump
Type:AHP3500
Applicable to MAN diesel engine 35-98 engine
Technical parameters：
Weight: Approx. 30 Kg
Dimensions: 490×430×480 mm
Oil output pressure: Max. 340 Mpa @ 0.6 Mpa air input
Pump working speed: Approx. 400 cycles/min @ 0.7 Mpa air input
Air consumption: Approx.1050 l/min @ 0.6 Mpa air input
Tank capacity: Approx. 8 L
Min. flow:
Approx. 0.7 l/min@ 0.7 Mpa air input and no output pressure
Air inlet: G1/2 standard internal thread
Pressure oil outlet: G1/4 standard internal thread
Manufacturer:AILESEN(CHANGZHOU)POWER TECHNOLOGY CO.,LTD
Email：412868638@qq.com
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2014
Annual Export Value
Below US$1 Million
Product Certifications
ISO9001
