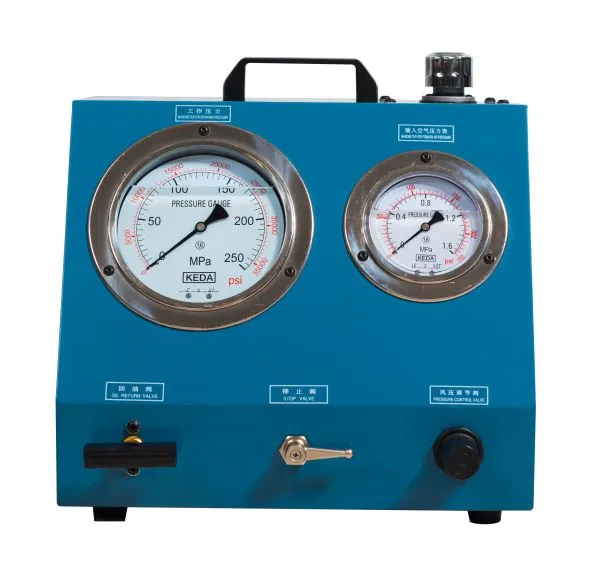

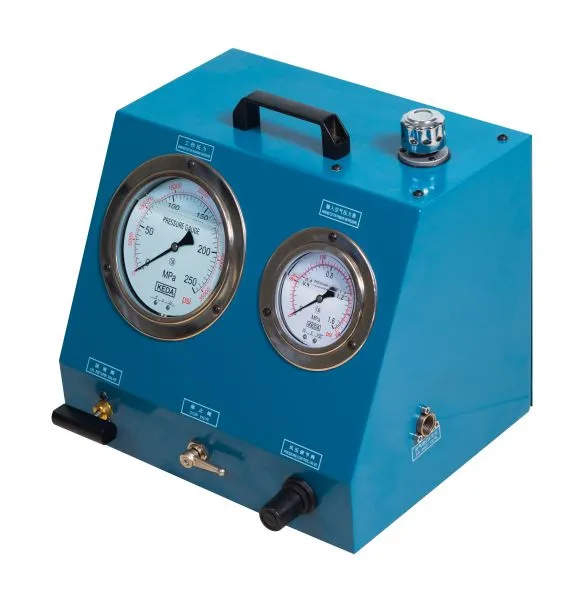

Introduction to pneumatic hydraulic pump
AHP2500
Technical parameters：
OUTPUT PRESSURE(Bar): |
MAX,2250 BAR AT8.0 BAR AIR INPUT. |
TANK CAPACITY（L）: |
APPROX.6 LITRES. |
PUMPING SPEED: |
APPROX.450 CYCLES/MIN.AT8.0 BAR AIR INPUT. |
AIR CONSUMPTION: |
500 LITRED/MIN.AT 8.0 BAR AIR INPUT. |
MAX,FLOW AT NO PRESSURE: |
APPROX. 0.25 LITRES/MIN.AT 8.0 BAR AIR INPUT. |
APPROX. 0.20 LITRES/MIN.AT 5.5 BAR AIR INPUT. | |
DISPLACEMENT PER CYCIE: |
0.8MM³-0.027 CU.IN. |
WEIGHT（Kg） |
24 KILOS EMPTY |
DIMENSIOND（mm） |
380*360*380MM |
AIR ACCESS PORT |
1/2B.S.P.STANDARD INTERNAL THREAD |
HIGH-VOLTAGE OUTPUT |
1/4B.S.P.STANDARD INTERNAL THREAD |
Manufacturer: changzhou ellasen power technology co. LTD
email：412868638@qq.com
