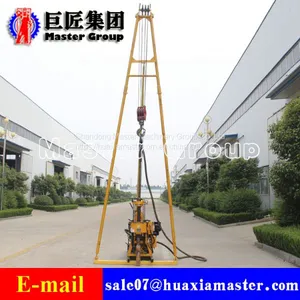

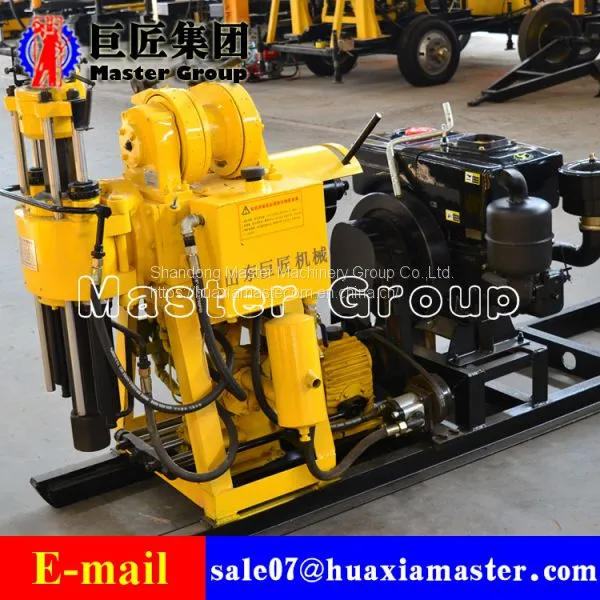

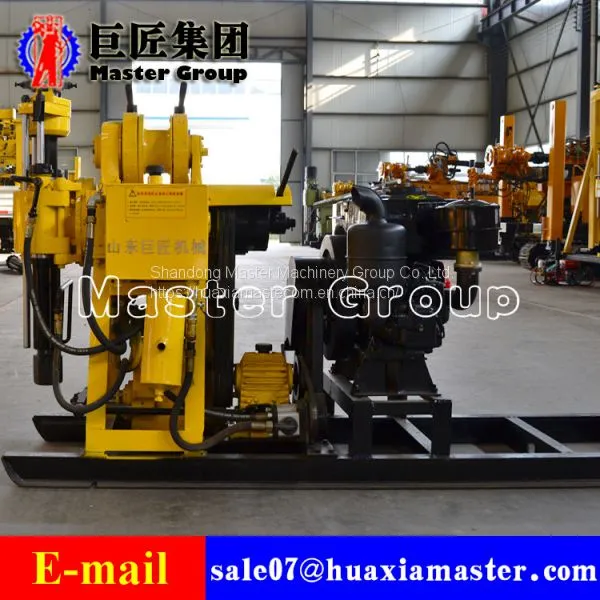

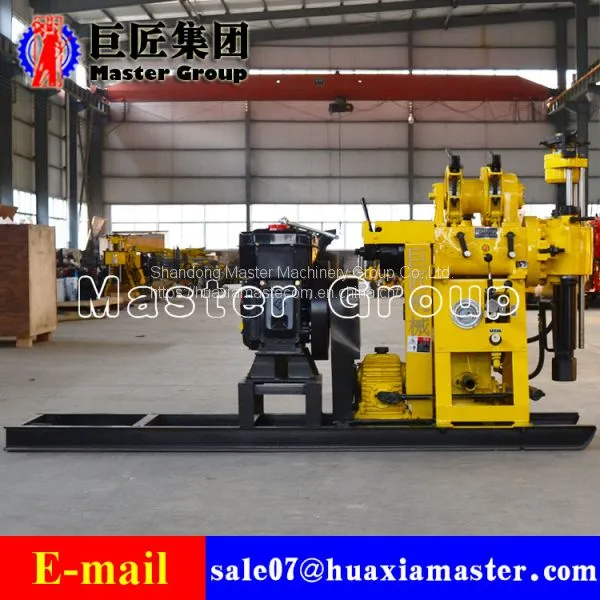

HZ-130Y Hydraulic Water Well Drilling Rig
- 100 Set / Sets per Month
- QingDao
- T/T L/C
- 9 days
- Adanced Electric Drills,Planers,Welding Machines,Pickaxes,Angle Grinder,Circular Saws,Marble Machine
- TPA DC/DC Converters power modules powered converter Convertisseur DC/DC abaisseur
- TPG DC/DC converters power supply module
- 20W 1.5KVDC Wide Voltage Input DC/DC Converters
- Power tools electric drill handheld machine
- Separated Hydraulic Down-the-hole Drilling Rig
Product Details
Brand Name: | HuaXia Master | Place of Origin: | China | Model Number: | Gasoline Engine Water Well Drilling Rig |
Application: | Gasoline Engine Water Well Drilling Rig |
Product Description
1. The applications of HZ-130Y water well drilling rig
Field irrigation well, civil use water well, ground temperature central air conditioning and so on; geological survey and exploration, basic exploration for roads and high-rise buildings, inspection holes for various concrete structures, river embankments, subgrade grouting holes.
1. The features of HZ-130Y water well drilling rig
l The hoisting machine is equipped with a holding frame to form a double-sided supporting star wheel structure,can withstand strong impact.
l Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.
l This machine adopts the conical clutch of national patent technology, which has the prominent characteristics of large transmission torque, convenient operation and no maintenance.
l Using 53 ×59 six party active drill rod, strong rigidity, large torque transmission.
3. Specifications of HZ-130Y water well drilling rig
HZ-130Y drilling rig | |
Drilling depth | 130m |
Maximum open hole diameter | 220mm |
End hole diameter | 75mm |
Drilling pipe diameter | 50mm |
Drilling angle | 90°-75° |
Weight | 750kg |
Power | Diesel engine 13.2kw |
Spindle | |
Spindle rotating speed | 142 285 570r/min |
Spindle stroke | 450mm |
Windlass | |
The maximum weight of a single rope | 1600kg |
Lifting speed of a single rope | 0.41 0.82 1.64m/s |
Drum diameter | 140mm |
Wire rope diameter | 13mm |
Drum capacity | 27m |
Mud pump | |
Model | Horizontal single cylinder double action |
Displacement ( diesel and electric, respectively) | 95L/ MIN,77L/MIN |
Maximum pressure | 1.2mpa |
Working pressure | 0.7mpa |
Water inlet diameter | 30mm |
Water outlet diameter | 20mm |
Triangle belt diameter | B1575mm |
