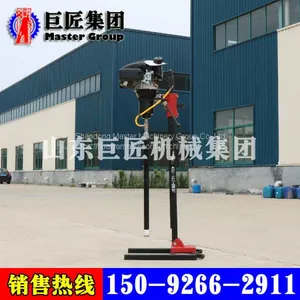

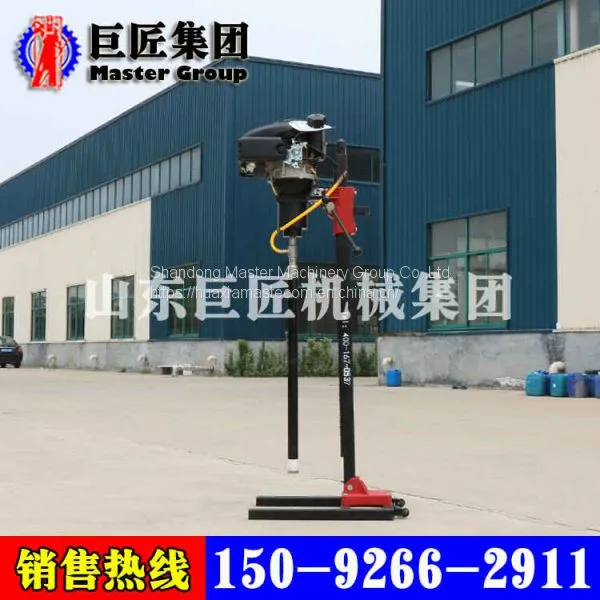

1. Brief introduction of BXZ-2L backpack drilling rig
BXZ-2L vertical knapsack core drilling rig is a removable core sample drilling rig. The rig is mainly used in mineral exploration, geochemical exploration, shallow sampling, geoscience research, geotechnical engineering, engineering investigation, oil field exploration, water conservancy engineering survey, highway engineering survey and so on.
The main features of BXZ-2L vertical backpack core drilling machine are compact structure, detachable, small volume, light weight, easy to carry; imported kohler brand gasoline engine with large horsepower and guaranteed drilling depth with drilling frame. Field operation is more convenient and safe.
2. Specifications of BXZ-2L drilling rig
BXZ-2L drilling rig | |
Engine brand |
Kohler |
House power |
7.75 HP |
Fuel tank capacity |
1400 ML |
Transmission mode |
gear-driven |
Starting mode |
recoil pull starter |
Clutch mode |
automatic clutch |
Coring mode |
rotary |
Rate of penetration |
540r /min |
Gear ratio |
7:1 |
Transmission mode |
CVT (continuously variable transmission) |
Drill pipe diameter |
32mm |
Drill pipe total length |
30m |
Drill hole diameter |
32-120mm |
Net weight |
52 kg |
Size |
550*450*420mm |
Packing measurement |
1050*600*550mm |
3. Configuration List of BXZ-2L backpack drilling rig
Item |
Parameter |
Unit |
Number |
Drill rig including stand |
BXZ-2L |
Set |
1 |
Drilling pipe including joint |
32 *800 mm |
pc |
38 |
Reducing nipple |
46 mm |
pc |
1 |
Coring barrel |
46 *700 mm |
pc |
1 |
Alloy bit |
46 |
pc |
1 |
Diamond bit |
46 |
pc |
1 |
Reducing nipple |
60 |
pc |
1 |
Coring barrel |
60*700 mm |
pc |
1 |
Alloy bit |
60 |
pc |
1 |
Diamond bit |
60 |
pc |
1 |

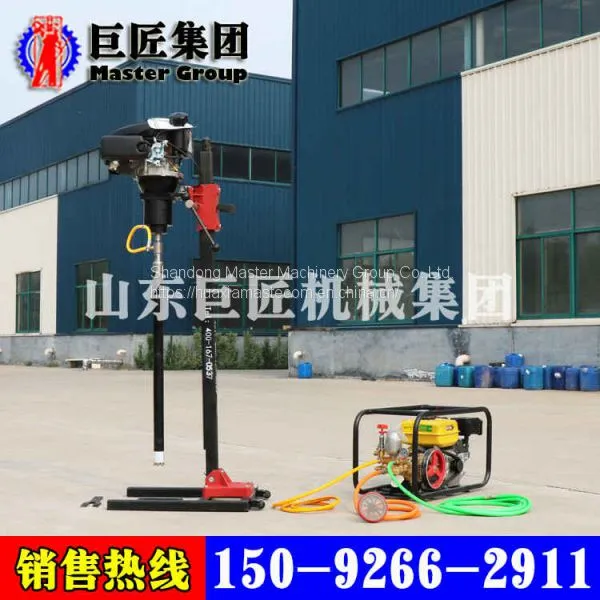

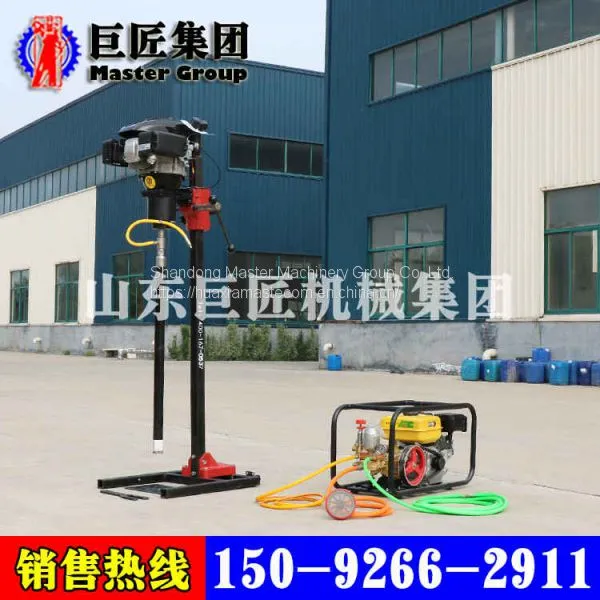

Mud pump (gasoline engine) |
set |
1 |
|
Inlet hose pipe |
20*1000 mm |
pc |
1 |
Inflow water filter |
pc |
1 |
|
Outlet hose pipe |
13*1000 mm |
pc |
1 |
Water supply pipe |
13*4500 mm |
pc |
1 |
Safety clamp |
grasp |
1 |
|
Pipe wrench |
grasp |
2 |
|
Safety plate |
pc |
1 |
|
Spark plug |
pc |
1 |
|
Ring gasket |
Set |
1 |
|
Water seal |
Set |
1 |
