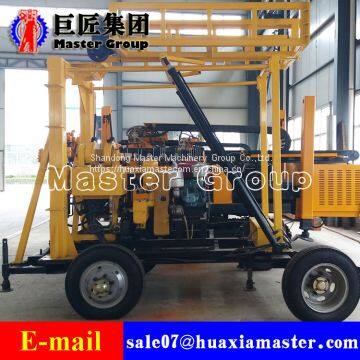

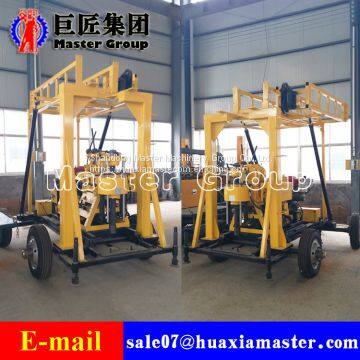

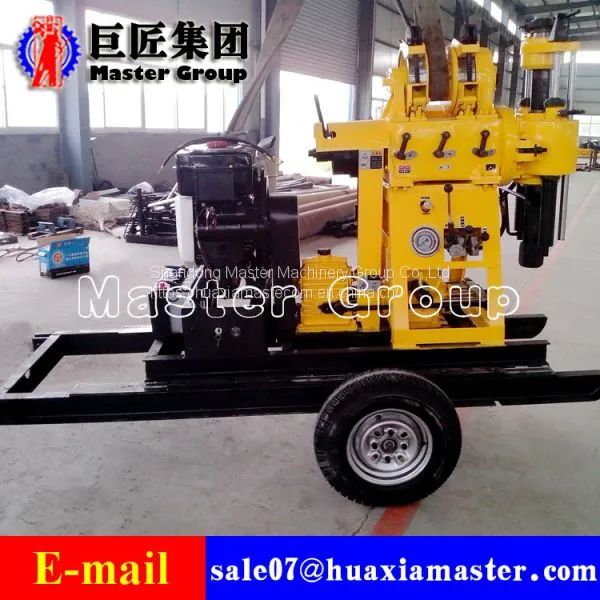

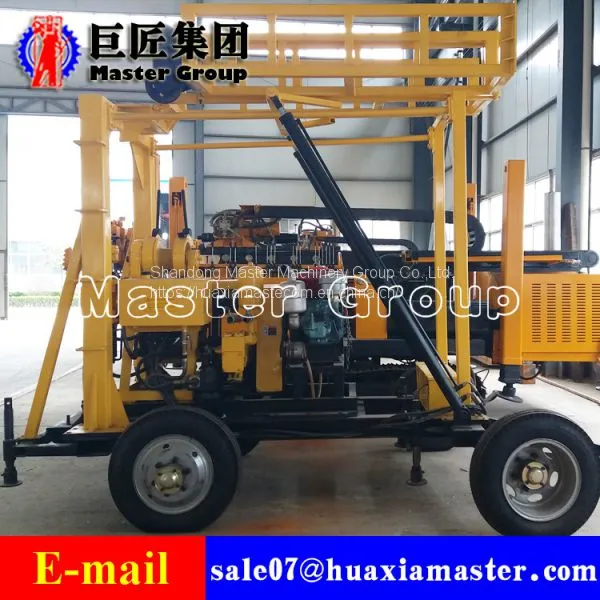

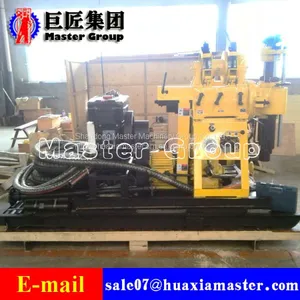

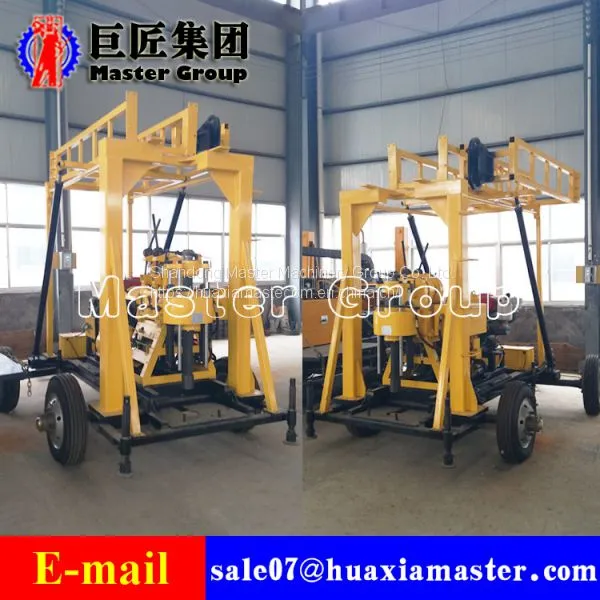

XYX-200 Wheeled Water Well Drilling Rig
- 100 Set / Sets per Month
- QingDao
- T/T L/C
- 9 days
- Adanced Electric Drills,Planers,Welding Machines,Pickaxes,Angle Grinder,Circular Saws,Marble Machine
- TPA DC/DC Converters power modules powered converter Convertisseur DC/DC abaisseur
- TPG DC/DC converters power supply module
- 20W 1.5KVDC Wide Voltage Input DC/DC Converters
- Power tools electric drill handheld machine
- Separated Hydraulic Down-the-hole Drilling Rig
Product Details
Brand Name: | HuaXia Master | Place of Origin: | China | Application: | wells drilling |
Product Description
1. The features of XYX-200 water well drilling rig
l It has oil pressure feed mechanism to improve drilling efficiency.

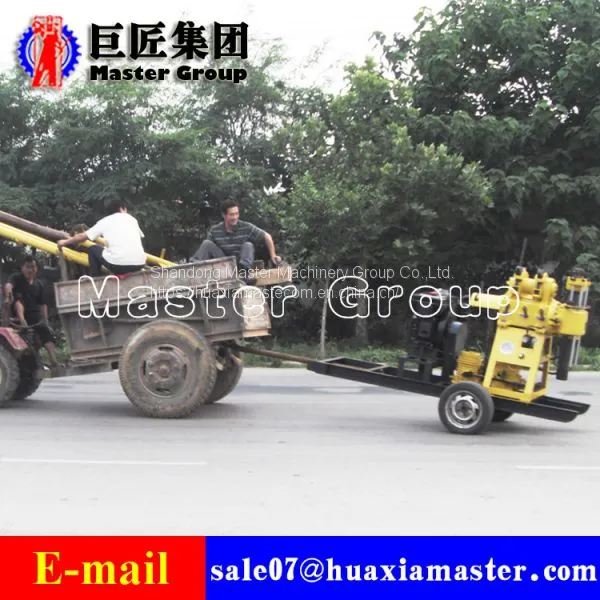

l Wheel walking mechanism,very convenient for transport and adjusting the drilling rig level.
l Pressure gauge display the condition of the bottom of the drill hole.
l The machine is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod. The working is high efficiency, convenient operation, safe and reliable.
2.The specifications of XYX-200 water well drilling rig
XYX-200 water well drilling rig | |
Drilling hole depth | 200m |
Maximum opening hole diameter | 300mm |
End hole diameter | 75mm |
Drilling pipe diameter | 60mm |
Drilling angel | 90°-75° |
Rig weight (without power) | 1300kg |
Triangular belt | B950×4 B1700×3 |
Active moving distance | 300mm |
Power | diesel engine/ motor 20hp/16.2kw |
Vertical spindle | |
Rotation speed | 64 128 287 557 r/min |
Stroke | 450mm |
Windlass | |
Maximum lifting power of a single rope | 2400kg |
Lifting speed of a single rope | 0.41/ 0.82/ 1.64m/s |
Wire rope diameter | 13mm |
Wire rope capacity | 35m |
Band-type break diameter | 260mm |
Band-type break belt width | 70mm |
Mud pump | |
Model | horizontal single cylinder double action |
Maximum displacement | diesel engine 170L/min Matching motor 150L/min |
Maximum pressure | 3mpa |
Work pressure | 1.5mpa |
Water inlet pipe diameter | 40mm |
Water outlet pipe diameter | 30mm |
Triangular belt | B1728mm |
Model | CBT—F—314 |
Triangular belt | B1100× 1 |
