Lora 868 MHz Antenna 868 MHz ISM Antenna with SMA Male Connector Rubber Duck Antenna for Applications

Lora 868 MHz Antenna 868 MHz ISM Antenna with SMA Male Connector Rubber Duck Antenna for Applications

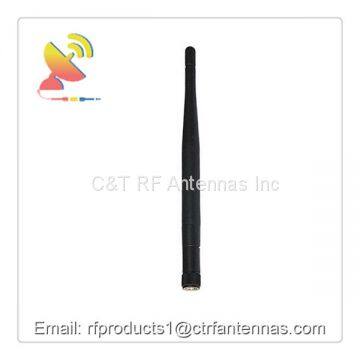

The is an 868 MHz rubber ducky antenna with SMA Male connector based on a 1/4 wave helical design, the 868 MHz is a cost-effective solution for Lora / ISM applications and should be mounted onto a device. The 868 MHz is currently available for customers.

Electrical Specifications:
Frequency: 868MHz
Impedance: 50 ohm
Polarisation: Vertical
Gain: 0 dBd, 2.0 dBi
Bandwidth: 20 MHz
VSWR:<2.0
Max. Power: 20 W

Mechanical Specifications:
Colour: Black

Size: 13x156mm
Height Approx: 156mm
Weight: 12 g
Materials ABS, copper
Operating temperature: -40C to +70C

External and SMA Mount Antenna

Cable: Null

Connector: SMA(Male)

IP67 Compliant

RoHS Compliant

Mounting: On device or transceivers and modems etc.

The use of 433 and 868 MHz

433 and 868 MHz enable C&T to communicate with numerous wireless devices from a broad range of different brands. Since the communication standards are relatively old there are many devices which use it, especially the more affordable devices. 868 MHz features several security devices. Note that these are just a few the relatively well-known brands. There are TONS of wireless devices out there which use these technologies – from robot lawn mowers to fireplaces and TV mounts and much, much more!

Our Services:

Customized antenna design service

3D Simulation pretest provided

High gain patch antenna solution

High performance embedded antenna solution

Performance and design optimized for embedded applications

Extensive Lab and field testing support

Wireless integrated service

Tag: 868MHz Omnidirectional antennas, Lora 169/433/868/915 MHz antennas, Omni 868MHz antennas,
