GSM Penta Band 3G/4G Directional Flat Panel Sector Antenna Tri Band 10dBi N-Type Female
Product Features:

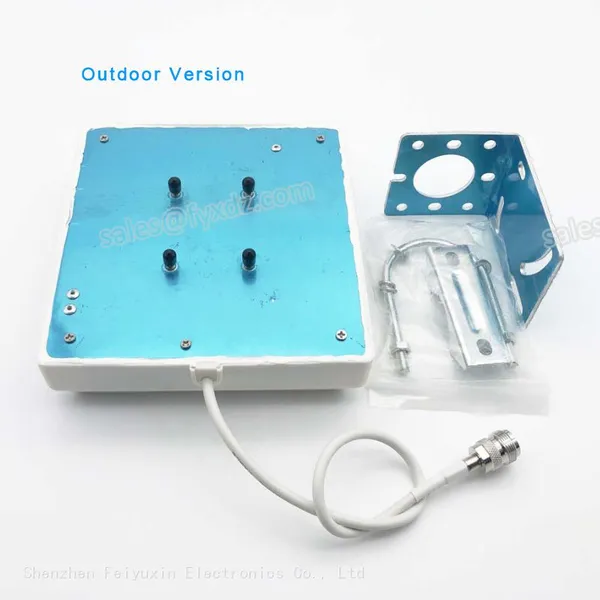

1. The antenna comes with an N Female pigtail cable as standard.
2. The panel sector antenna to be mounted on up to 2” diameter pole (mounting hardware/accessories/bracket included).
3. Supports all carriers using 700-2500 MHz for transmitting.
5. Working with 50 ohm cell signal booster systems.
Please Note:
1. Pole is not included.
2. This antenna will not operate by itself. It is one component of a cell signal booster system.
3. This lpda directional antenna is required to be connected with N/SMA type coaxial cable to a cellular amplifier system.
Product Specifications - GSM Penta Band Panel Sector Antenna
Electrical Specifications
Frequency Range (MHz): 806-960/1710-2500
The half power beam width: H:70/60° V:55/45°
Gain (dBi): 7/10
VSWR: ≤1.8
Input Impedance (Ω): 50
Polarization: Vertical
Max. Input Power: 50W
Lightning Protection: DC Ground
Mechanical Specifications
Input Connector: N Female or customized
Antenna Dimension(mm): 210x180x45
Radome Material: ABS
Radome Color: White
Mounting way: Pole Mount
Mounting hardware: Ф35-Ф50
Related Products - Directional / Omni-directonal Antennas and RF Cable
