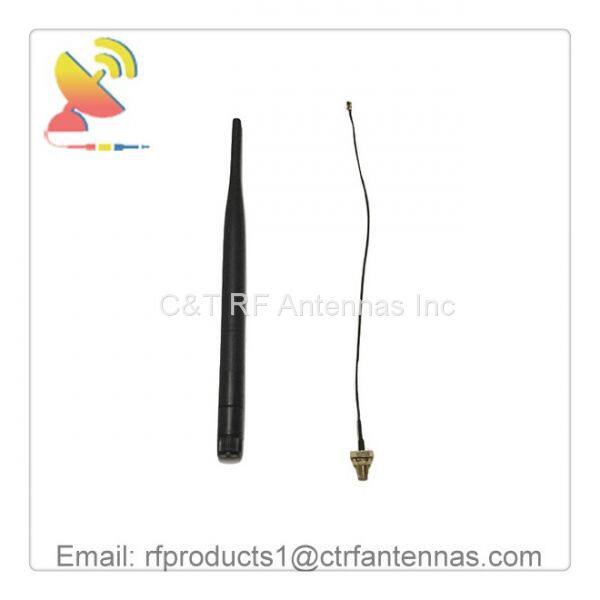

Omnidirectional rubber duck antenna 2.4GHz wifi antenna RF coaxial cable antenna jumper/adapter
This dipole rubber duck Wifi 2.4GHz antenna is supplied by C&T RF Antennas Inc.
RF Antenna 2.4G Wifi antenna electrical specifications:
Antenna Type: Omni dipole Wifi Antenna
Frequency: 2400-2483MHz
Peak Gain: 3dBi
Beam width:
H: 360°
V: 5°
VSWR: ≤1.8
Input impedance: 50Ω
Polarization: Vertical
Maximum power: 50W
Lightning protection: DC ground
Connector: SMA male
Material: Plastic ABS + PC + connector
Color: Black
Rubber Duck Antenna Size: 10x137mm
SMA to U.FL cable assembly specifications:
Connector A: Reverse SMA female
Connector B: U.FL
Cable Type: RG1.13
Coaxial Cable Length: 150mm
Mechanical specifications:
Working temperatures: -40 to 60°C
Storage temperatures: -40 to 65°C
Rubber duck antenna
2.4G wifi antenna applications:
2.4G WLAN system
Wi-Fi telecommunication system
Point-to-multipoint applications
Wireless LAN
2.4G WLAN system
IEE802.11
Data Transmission
Wireless AP/adapter/bridge/UAV Drone/Robotic etc
Coaxial cable Applications
RF Communications
Antenna extender
Antenna adapter
Commercial,
Industrial
Applications
Application:
WIFI / CDMA / RFID / GSM / WiMAX / BLUETOOTH / WLAN
Direction and multi-point applications
Public wireless hotspots
Wireless Video System
Welcome to send your BOM list for our quotation.
Welcome to C&T RF Antennas Inc
C&T RF Antennas Inc is a professional RF Antenna designer and supplier of innovative multi-band antenna products, standard, and custom RF coaxial cables and associated RF accessories. Our antennas are designed for IoT, M2M, telematics, telemetry and monitoring applications using both licensed and unlicensed frequency bands.
Our product portfolio includes internal and external antennas designed to fit into a range of portable, mobile and fixed devices as well as an extensive range of antenna solutions for indoor and outdoor use.
Our products are deployed in applications using LTE, 4G, GPS/GLONASS, WiFi, VHF, UHF and many other wireless technologies.
Innovative Solutions for Wireless communications
The C&T RF Antennas Inc is able to offer a wide range of RF Antennas and RF Coaxial Cable Assemblies.
Quality and Performance
Reliability and Durability
Competitive Price
Reliable and Honest Partnership
Innovative and Attractive Design
Rapid Design and Delivery
Advantage:
1, RoHS Compliant, rich experience, prove the technique
2, Low V.S.W.R. / Low Loss Design / High Gain
3, High Efficiency and Sensitivity
4, Factory supply, good price, fast delivery time
5, OEM/ODM is available
6, ISO:9001 certifications, R&D
Tag:wifi antenna 802.11ac, wifi antenna 802.11n, wifi antenna 90 degrees,
