Home > Electrical & Electronics > Antenna > Communication Antenna > Omnidirectional Rubber Duck Antenna 2.4GHz Wifi Antenna Wifi Antennas Best Buy

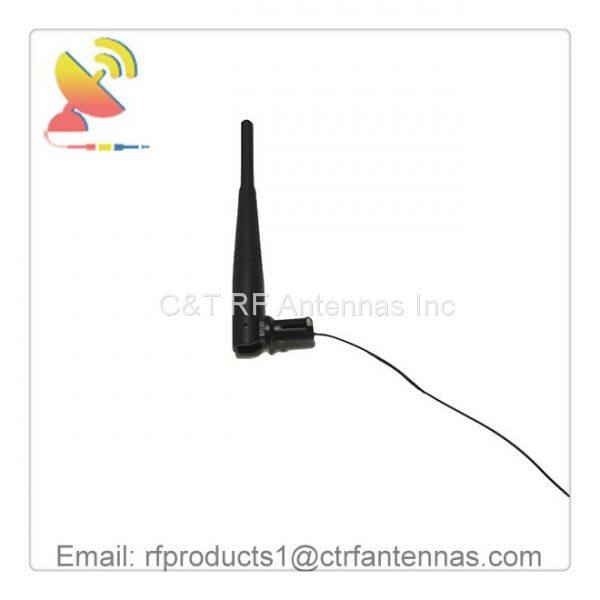

Omnidirectional Rubber Duck Antenna 2.4GHz Wifi Antenna Wifi Antennas Best Buy

Omnidirectional Rubber Duck Antenna 2.4GHz Wifi Antenna Wifi Antennas Best Buy photo-1

Omnidirectional Rubber Duck Antenna 2.4GHz Wifi Antenna Wifi Antennas Best Buy photo-2

US$ 0.1 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

C&T

Place of Origin:

China

Model Number:

C&T-AD-UFL-2450

Contact Supplier Request Quote Chat Now

C&T RF Antennas Inc

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

10 days

Product Details
Company Profile
Contact Us

Brand Name C&T

Place of Origin China

Model Number C&T-AD-UFL-2450

Omnidirectional rubber duck antenna 2.4GHz wifi antenna wifi antennas best buy

This dipole rubber duck Wifi 2.4GHz antenna is supplied by C&T RF Antennas Inc.

Electrical specifications:

Frequency Center	2400-2500 Mhz
V.S.W.R	2.0
Gain (dBi)	2 dBi
Polarization	Vertical
Connector	U.FL or Customize
Radiation pattern	Omnidirectional
Working Temperature ( DegreeC)	-40℃~ +75℃
Impedance (ohms)	50
Maximum Power (W)	50
Dimension (mm)	10x105
Operation Temperature ( DegreeC)	-40℃~ +75℃
Net Weight (gm)	15
Cable Type	RG1.13
Cable Length	100mm, or custom
Radome Material	Plastic ABS

Welcome to send your BOM list for our quotation.

The Rubber Duck antenna series are weatherproof and waterproof high gain antennas that provide an excellent choice for outdoor and indoor use, provide a wide coverage with an omnidirectional pattern installation and can be mounted on the outside of a housing. Our rubber duck antenna is omnidirectional "rubber duck" antenna, flexible "rubber duck" antenna, compact and easy to store, with the choice of MMCX, RPMMCX, RPSMA, RPTNC, and other custom plugs, we also offer a variety of options customized solutions for the external wireless antenna, connectors, pigtail, and mounting bracket.

RF Antenna knowledge

1. Antenna Gain

Gain is one of the most important parameters of the antenna system, the definition of antenna gain and omnidirectional antenna or half-wave dipole antenna related. Omnidirectional radiation is assumed that in all directions and radiation power of the radiator, the antenna gain in a given direction is the field strength in that direction.

2. The antenna input interface

In order to improve the reliability of passive intermodulation and RF connector, enter the base station antenna interface using 7/16DIN-Female, before the antenna is used, the port should cover, so as not to form oxides or entering impurities.

3. Antenna size and weight

In order to facilitate antenna storage, transportation, installation, and safety, to meet the electrical indicators, the antenna dimensions should be as small as lightweight as possible.

4. Wind loads

The base station antennas are usually mounted on tall buildings and towers, especially in coastal areas, the annual wind speed and requires the antenna work at 36m / s when without destroying the 55m / s when.

5. The working temperature and humidity

The base station antenna should be at ambient temperature -40 ℃ - + work within a range of 65 ℃. The base station antenna relative humidity should be within the range of 0-100% of a normal working environment.
