Low Cost PLC Controller Programmable Logic Controller for Electrical Equipments

Low Cost PLC Controller Programmable Logic Controller for Electrical Equipments thumbnail-1
Low Cost PLC Controller Programmable Logic Controller for Electrical Equipments photo-1
US$ 298 - 310 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MOCHUAN
Place of Origin:
China
Model Number:
MU2V-2828MT
Contact Supplier Request Quote Chat Now
Wuxi Mochuan Drives Technology Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI QINGDAO GUANGZHOU
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MOCHUAN
Place of Origin China
Model Number MU2V-2828MT

Low Cost PLC controller programmable logic controller for electrical equipments

Attention Please

pay attention.jpg

CERTIFICATE:

1. Description: plc controller

2. Report No.:1105218

3. Applicable Standard(s): IEC61131-2:2007; IEC6100-3-2:2009+AI:2009; IEC61000-3-3:2008



OUR MAIN MARKET:

1. WELCOME ALL MARKET TO JOIN US, NO MATTER WHERE ARE YOU COME FROM.

2. OUR 70% MARKET IS FROM EUROPE AND AMERICAN.

3, YOU WILL NOT BE THE FIRST ONE TESTING ITS PRFORMANCE AND STABILTIY.



WORLD-WIDE CUSTOMER COMMENTS & FEEDBACK:

1. Here is some of comments from our world-wide customers.

2. You can check all the comments at our company profit.

3. Please visit

4. Click" company profit, then choose" Rating Reviews" OR" Transaction History".

5. Then you can see all comments from our clients.

(Please note: all our customer comments is real one, NOT FAKE!!! NOT FAKE!!! NOT FAKE!!!)



TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE.

We never got any complain.



feedback client.jpg

MU2V Technical

Noted Please: IMPORTANT to help you confirm and select correct plc item, even this part have a little long and take some time. Thanks for your patience.




 MU2V MU2H MU1H
I/O Point 16/16, 28/28 16/16, 32/32 08/06, 12/08, 16/14, 24/16, 36/24
Max Logical I/O 512 512 256
Max Special Function Module 8 8 0
Program Capacity 32K 24K 12K
Pulse Output

8*200KHZ

(support 4 differential output)

3*100KHZ

(transistor output)

2*100Khz

( transistor output)
One-phase Counting Channel

8*200Khz

(support 4 differetial input)

2*50HZ

4*10Khz

2*50Khz

4*10Khz
Tow-phase Counting Channel 4*200Khz 1*25Khz, 2*5Khz 1*20Khz, 2*10Khz
Sum of Counter Frequency 800Khz 100Khz 80Khz
PLC N:N support
RTC support(power down keeping at least 3years)
Constant Scanning Mode support
Digital Filter 0.8, 1.6, 3.2, 6.4, 12.8, 25.6, 51.2, adjustable
Feature Description
Programming Software Free MCprogrammer
Program Security donwload/upload/program/password
Programming language ladder, instruction, SFC
Communication Protocol programming protocol, Modbus, CAN, and free port, MXlink
Expansion Module I/O extension module,AD/DC, thermal resistance, thermal couple, pulse, weighting, etc



MU2V Series Struction:

2V enlouser .jpg



MU2V series Main Module:

Item MU2V-1616MT/1/CAN MU2V-2828MT/1/CAN
General Specification
Running Mode scan round/interruput
Instruction basic instruction 31
step instruction 2
applied instruction 264
Program Capacity 32K steps
Programming Cable mochuan
Pulse Output 8*200Khz(transistor output), support 4channel differential output
Power Supply Output 24VDC
Input/Output Specification
I/O Point 16/16 28/28
Expanded I/O Points 512
Working Volt A85~264V/DC24V
Output Type transistor
Insulation Method mechanistic
Max Load
ON/OFF Response Time Y0~Y1
Register Specification
Timer 100ms T0~T209(0.1~3276.7s)
10ms T210~T251(0.01~327.67s)
1ms T252~T255(0.001~32.767s)
Counter 16bit 16bit increase: 0~199
32bit 32bit increase & descrease: 200~C234
High-speed Counter single phase single counting input(32bit) C235~245
single phase two counting input(32bit) C248~C250
two phase two counting input(32bit) C251~C255
Data Register D0~D32767
Part Data Register V0~V63
Indexed Register Z0~Z63
Specifical Data Register SD0~SM511
State Register S0~S11023
Interrupt Sepcification
Internal Timer Interrupt 3
External Interrupt 16
High-Speed Counter Interrupt 8
High-Speed Counter Interrupt 12
POT Output Finished Interrupt 8
Power Off Interrupt 1
Communication Speification
Communication Port PORT0: RS232; PORT1:RS485; Extended RS232/485/CAN/Ethrent
Security Specification
Basic project file/program/upload/download/monitor
High-Level forbidded formatting/forbidden upload/number limit of password retries
Dimensions
Size(L*W*H)mm 158*90*83 226*90*83
MU2V Feature

Multi Axle Control:

MU2V series PLC support totally 8x200kHZ pulse input and output, 4 road differential input output, 2/3/4 axle linear interpolation and 4 axle circular interpolation.

PLC MU2V feature.jpg

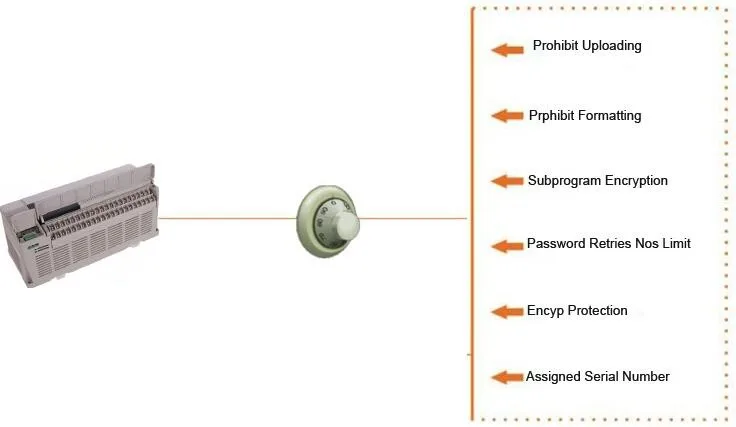

Reliable Security:

1. all main program and subprogram can be separately encrypted to prevent proporietaty-technology reveal;

2.limit the numbers of password retires to avoid inllegal decrytption;

3. program upload/download/monitor can be set different password;

4. supply forbidden formatting and uploading;

5. support downloading compiling file without user program, which is for batch production and on-site maintenance;

6. User assign PLC serial number, only could run in correspondent PLC.



Integrates PID function:MU2V series main module integrates temperature control function, matched with MU2H series TC, PT module, Max 32 road TPID could not made supporting the self-determming function of TPID parameter.

TPID



Super Extension System: max expansion to 512 points and 8 special function module which could meet multi environments project needs.




Free Software

MCProgrammer meet IEC61131-3 international standard.

.jpg



Three Programming Language: ladder, instruction list, SFC which could be interconverted. As for convertion between ladder and instruction list, annotion could be kept.


Application

PLC application.jpg

What&How Mochuan is?

company

Wtih more than 15-years domestic market developing since 2002 and around 3-years foreign business since 2015 development, and the sufficential support and cooperations from all our valuable customers.



Mochuan Drives has been integrating manufacturer and engineering company in PLC, HMI, VFD, IE4 AC PMSM Motor and posistion switch sensor. Our one-stop service has the honor to serve more than 100 industries in China and more 200 foreign customers.



Our Value message is QUALTY IS OUR CULTURE.

90% of our production equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUCTS.



With us your MONEY in safe, Your BUSINESS in safe".

WELCOME TO BE ONE OF OUR TOP "VIP" CUSTOMERS"

WE BELIEVE THAT" THE QUALITY IS THE SOL OF AN ENTERPRISE".

visit photo







FAQ



Q1: How many the Maximum points can up of your plc?

The main module at least 14points, maximum 60points can extend to 512points.



Q2: How many voltage are of your plc? Whether the voltage can be customized according customers?

The input voltage AC110V~240V, DC24, or according to customers.



Q3: What is guarantee of your plc controller?

All series PLC to provide 18months warranty and lifetime maintenance.



Q4: What information should provide, if wanna get a quotation?

You could tell us your requirements and usage or our models.
