small cheap capacitive canbus plc tft lcd touch screen hmi for industry
| Item | M007 | M010 | MC5070 | MC5097X | MC5170 | MC5220 | |
| Bottom Software | Linux | ||||||
| Compatible OS for Programming Software | WIN7/10/XP | ||||||
| CPU | Cortex-A8 600MHz | Cortex-A8 800MHz | |||||
| Touch | Glass+Glass projective multi-touch capacitive HMI | ||||||
| Display | Screen Size | 7'' 16:9 TFT LCD,IPS | 9.7'' 4:3 TFT LCD,IPS | 7'' 16:9 TFT LCD, full view | 9.7'' TFT LCD, full HD, wide view | 17'' TFT LCD, full HD, wide view | 22'' TFT LCD, full HD, wide view |
| Resolution | 1024x600 | 1024x768 | 1024x600 | 1024x768 | 1280x1024 | 1902x1080 | |
| Colors | 24-bit colors | 16-bit colors | |||||
| Brightness | 450cd/m² | 350cd/m² | 450cd/m² | 350cd/m² | 250cd/m² | ||
| Backlight | LED | ||||||
| Backlight life | 50,000 hours | ||||||
| Storage | Flash | 128M | 256M | ||||
| RAM | 128M | 256M | |||||
| SD Card | support | ||||||
| RTC | Built-in | ||||||
| Ports | USB Port | 1USB Host2.0; 1USB Device 2.0 | |||||
| Audio | optional | ||||||

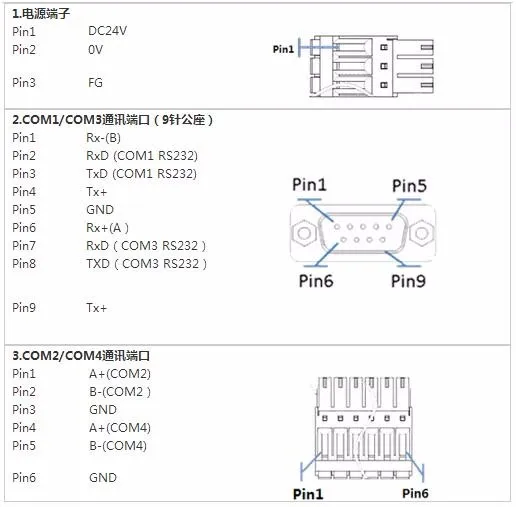

| Serial Port |
COM1:RS232/485/422 COM2/4:RS485 COM3:RS232 |
COM1/2:RS232/485/422 COM3/4:RS232 |
COM1/2:RS232/485/422 COM3:RS232 |
||||
| Ethernet | 10M/100M Ethernet | ||||||
| Power | Power Supply | DC24, Input range:DC9V~28V | DC24V, Input range: DC18V~28V | ||||
| Power | |||||||
| Power isolation | Protected from thunderstrike and surging | ||||||
| Power Down | |||||||
| Seimc resistance | 10~25Hz( X/Y/Z 2G/20Min) | ||||||
| Dimensions | Shell | ABS+PC | aluminum front panel and steel back panel | ||||
| Dimension/mm | 185.1x131.1x30 | 247x197x31.5 | 194.3x132x41 | 247x197x31 | 392x325x62.5 | 530x338x61 | |
| Mounting Size/mm | 178x125 | 230x180 | 185x123 | 230x180 | 370x304 or wall mounting | 502x302 or wall mounting | |
| Weight/kg | 650g | 1000g | 1000g | 1100g | 3850g | 5300g | |
| Environment | Protection | Front PI65(with NAME panel), Back IP20 | |||||
| Operate Temperature | -10~60℃ | -20~70℃ | -10~60℃ | ||||
| Storage Temperature | -20~70℃ | -30~80℃ | -20~70℃ | ||||
| Humidity | 10~90%RH( No Condensation) | ||||||
| CE Certification | Complied with EN61000-6-2:2005; EN61000-6-4:2007 | ||||||
| RoHs | Surge Immunity:±1KV, EFT:±2KV; ESD:4KV, Air:8KV | ||||||
| Programming Software | Above Mochuan Studio V1.0 | ||||||
Supporting Multi-Touch Zooming and Gesture:
1. projected capacitive multi-touch glass+glass hmi with nimble touch and high light transmittance.
2. multi-zooming makes the pictures and technical data presented as your favorite.
Projected capacitive, multi-touch glass+glass, nimble touch, anti-scratching, no drifting.
1. IPS full view TFT LCD, high resolution, high brightness, clear under sunshine.
2. Extraordionary thermostability stands higher tempeturing difference than the normal.
PCB Coating Protection: Enhance the strength of damp proof, dust prrof, corrision resistance in harsh environment.
Powerful Cortex-A8 Processors:
1. With 600MHz CPU, more efficient operation is reliable, such as 15times speed of displaying JPEG, 10 times speed of reading&writing PLC data, shortest boot time, and highest switching speed.
2. The complicated grahics could be presented eifitically due to 160,000,000 color.
Multi-Language:
could build various language environment, and support up to 12 various language for choice presented at one time.
Anti-Disengaging Installation Design:
High Temperature Resistance:
Dust standard has a breakthrough by competent for all kinds of working environment. After using fanless mainboard, temperature resistance increases 50%.
Shipping terms of canbus touch screen
1. Fedex/DHL/UPS/TNT for samples, door to door;
2. By air or by sea for batch goods for FCL, airport/port receving;
3. Customers specifying freight forwarders for negotiable shipping nethods.
4. Delivery time: 3~7 working days for samples, 5~25 working days for batch goods.
Payment Terms of canbus touch screen
1. Payment : T/T, Western Uion, MoneygRAM, Paypal( 30% deposits, 70% balance before delivery); trade assurance from aliaba
2. MOQ: 1 set;
Wtih more than 15-years domestic market developing since 2002 and around 3-years foreign business since 2015 development, and the sufficential support and cooperations from all our valuable customers.
Mochuan Drives has been integrating manufacturer and engineering company in PLC, HMI, VFD, IE4 AC PMSM Motor and posistion switch sensor. Our one-stop service has the honor to serve more than 100 industries in China and more 200 foreign customers.
Our Value message is QUALTY IS OUR CULTURE.
90% of our production equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUCTS.
With us your MONEY in safe, Your BUSINESS in safe".
WELCOME TO BE ONE OF OUR TOP "VIP" CUSTOMERS"
WE BELIEVE THAT" THE QUALITY IS THE SOL OF AN ENTERPRISE".
1. Do you provide the engineer to program the project file per user's tech requests?
For simple tech requests, of course, it is ok, and for free. But for a complicated one, or a full set of project file including canbus touch screen and PLC, some fee should be charged.
2. Do your canbus touch screen support all brand PLC?
The canbus touch screen support alsmost all foreign and Chinese PLC.
3. If one brand PLC is not in your supported list, what is your sdolution?
There are two solutions: the first one is to give us your detailed PLC drives tech data, then the tech depart program it into our canbus touch screen the second is to make it throguh Modbus communication.
4. Do you have a recommended power supply?
The power supply of canbus touch screen is DC24V. So a external DC24V switch power supply is needed to buy by users. It is a general device, which is very easy to buy in the electronic market.
5. Do your canbus touch screen support Modbus TCP/IP and Modbus RTU?
Of course, yes, it could be seen in our programming software-Mochuan Studio. If you need, please contact us for its screenshot.
6. What's the difference between your canbus touch screen and pc?
One biggest difference is that our canbus touch screen is to monitor industrial machine's running state through a programmed project file, and do not support APP, Video&audio input&output.
