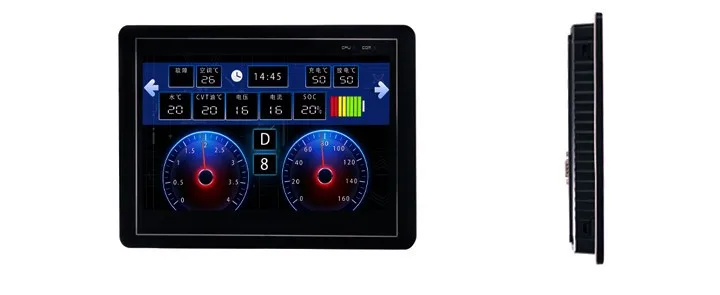

RS485 touchscreen 7 inch waterproof industrial pc hmi panel
| RS485 touchscreen 7 inch waterproof industrial pc hmi panel | |||||||
| Item | MC4043C | MC4070C | MC4070CE | MC4070iE | MC4097C | MC4097iE | |
| Compatible OS for Programming Software | WIN7/10/XP | ||||||
| CPU | 600MHz ARM Cortex-A8 | ||||||
| Touch Screen | 4 wires resistive touch screen | ||||||
| Display | Screen Size | 4.3'' TFT LCD | 7'' TFT LCD | 9.7 TFT LCD | |||
| Resolution | 480x272 | 800x480 | 1024x768 | ||||
| Colors | 24-bit colors | 16-bit colors | |||||
| Brightness | 420cd/m² | 360cd/m² | 350cd/m² | ||||
| Backlight | LED | ||||||
| Backlight Life | 5000hours | ||||||
| RTC | Built-in | ||||||
| Storage | Flash | 128M | |||||
| RAM | 128M | ||||||
| SD Card | N/A | supporting | N/A | supporting | |||

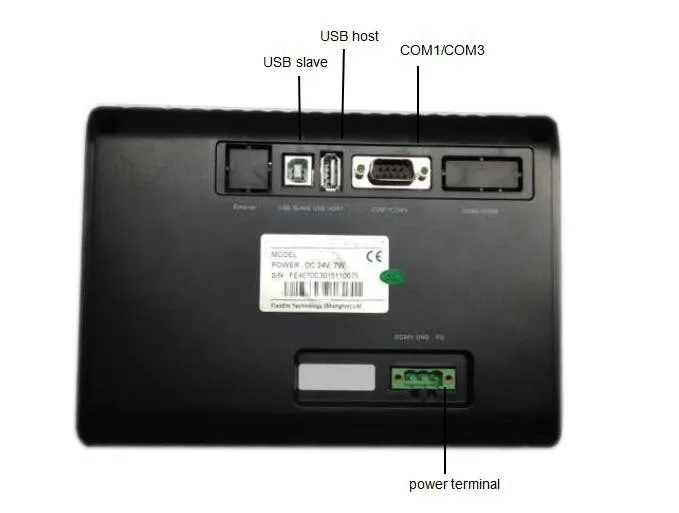

| Ports | Ethernet | N/A | 10M/100M | N/A | 10M/100M | ||
| USB Port | USB Host2.0*1; USB Device 2.0*1 | ||||||

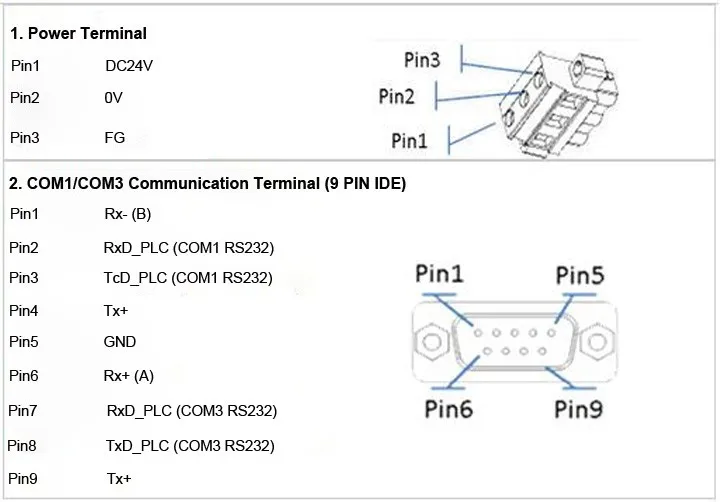

| Serial Port |
COM1:RS232/485/422 COM3:RS232 |
COM1/2:RS232/485/422 COM3/4:RS232 |
COM1:RS232/485/422 COM3:RS232 |
COM1/2:RS232/485/ 422;COM3/4:RS232 |
|||
| Download Project | U-disk/USB Device | U-disk/USB Device/SD card/Ethernet | USB Host/USB Device | U-disk/USB Device/SD card/Ethernet | |||
| Power | Power Supply | DC24V, Input range:DC9V~28V | DC24V,Input range:DC18V~28V | DC24V, Input Range:DC9V~28V | DC24V, Input range:DC18V~28V | ||
| Power | |||||||
| Power Down Allowed | |||||||
| Power Isolation | protected from thunderstrike and surging | Isolated power supply, protected from thunderstrike and surging | Protected from thunderstrike and surging | Isolated power supply, protected from thunderstrike and surging | |||
| Vibration Endurance | 10~25Hz( X/Y/Z 2G/30Min) | ||||||
| Dimensions | Shell | ABS | |||||
| Dimension/mm | 128x102x32 | 204x145x44.5 | 276x213x39 | ||||
| Mounting Size/mm | 120x93 | 192x138 | 259x201 | ||||
| Weight/g | 500g | 650g | 800g | 1000g | |||
| Environment | Cooling | Natural air cooling | |||||
| Protection | Front PI65( with NEMA Panel), Back IP20 | ||||||
| Temperature | 0~50℃ | ||||||
| Humidity | 10~90%RH( No Condensation) | ||||||
| CE Certification | Complied with EN61000-6-2:2005, EN61000-6-4:2007 | ||||||
| RoHs | Surge Immuity:±1KV, EFT:±2KV, ESD:4KV, Air:8KV | ||||||
| Programming Software | Above Mochuan Studio V1.0 | ||||||

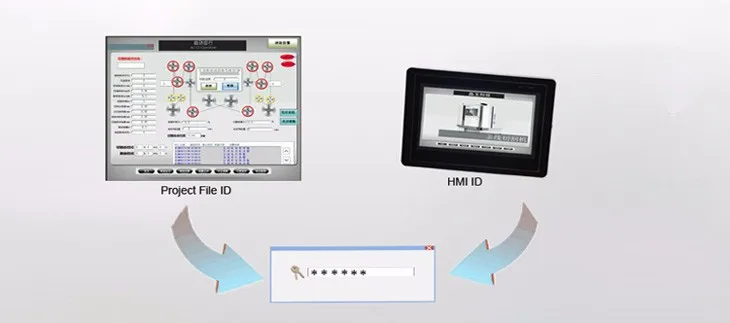

Security Management of Project File:
Including decompilation, project file code, and ID. When ID could not match HMI's, project file will not work.
Operating Records:
1. record all the operating steps, including day, time, content, etc and clearly control fault operation
2. could be stored as CSV file to analysis operating records
3. could be printed to paper statement.

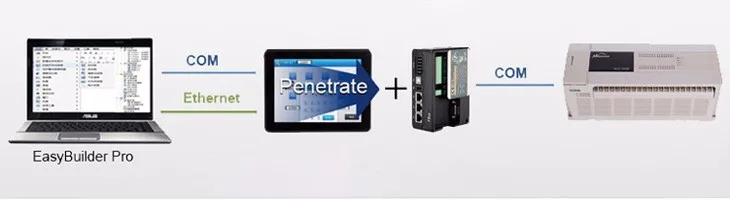

Penetrate Communication:
1. Directly upload/ download plc program, reverse program, monitor plc state, etc. through HMI and F-Box
2. It is reliable through serial interface or Ethernet penetration
3. Supporting PLC: Delta DVP, Fetek FB, LS XEC/XGI, Mitsubishi FX0s/ FX1n/FX3u, Omron CJ/CS, etc.
Multi-Language:
could build various language environment, and support up to 12 various language for choice presented at one time.

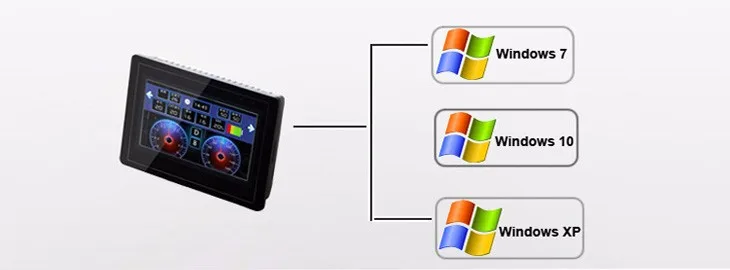

Compatible OS System of Programming Software-Mochuan Studio: Win7/ Win10/ Winxp:
Shipping terms of outdoor hmi
1. Fedex/DHL/UPS/TNT for samples, door to door;
2. By air or by sea for batch goods for FCL, airport/port receving;
3. Customers specifying freight forwarders for negotiable shipping nethods.
4. Delivery time: 3~7 days for samples, 5~25days for batch goods.
Payment Terms of outdoor hmi
1. Payment : T/T, Western Uion, MoneygRAM, Paypal( 30% deposits, 70% balance before delivery); trade assurance from aliaba
2. MOQ: 1 set;
Wtih more than 15-years domestic market developing since 2002 and around 3-years foreign business since 2015 development, and the sufficential support and cooperations from all our valuable customers.
Mochuan Drives has been integrating manufacturer and engineering company in PLC, HMI, VFD, IE4 AC PMSM Motor and posistion switch sensor. Our one-stop service has the honor to serve more than 100 industries in China and more 200 foreign customers.
Our Value message is QUALTY IS OUR CULTURE.
90% of our production equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUCTS.
With us your MONEY in safe, Your BUSINESS in safe".
WELCOME TO BE ONE OF OUR TOP "VIP" CUSTOMERS"
WE BELIEVE THAT" THE QUALITY IS THE SOL OF AN ENTERPRISE".
With three-year developing with each customer's great and kind cooperation each time, Mochuan Drives's foreign business and market has been blooming and thriving, epecially in India, Russia, United States, Canada, United Kingdom, Austrilia, etc..
1. Do you provide the engineer to program the project file per user's tech requests?
For simple tech requests, of course, it is ok, and for free. But for a complicated one, or a full set of project file including outdoor hmi and PLC, some fee should be charged.
2. Do your touchscreen 7 inch waterproof industrial pc hmi support all brand PLC?
The outdoor hmi support alsmost all foreign and Chinese PLC.
3. If one brand PLC is not in your supported list, what is your sdolution?
There are two solutions: the first one is to give us your detailed PLC drives tech data, then the tech depart program it into our outdoor hmi; the second is to make it throguh Modbus communication.
4. Do you have a recommended power supply?
The power supply of outdoor hmi is DC24V. So a external DC24V switch power supply is needed to buy by users. It is a general device, which is very easy to buy in the electronic market.
5. Do your touchscreen 7 inch waterproof industrial pc hmi support Modbus TCP/IP and Modbus RTU?
Of course, yes, it could be seen in our programming software-Mochuan Studio. If you need, please contact us for its screenshot.
6. What's the difference between your touchscreen 7 inch waterproof industrial pc hmi and pc?
One biggest difference is that our outdoor hmi is to monitor industrial machine's running state through a programmed project file, and do not support APP, Video&audio input&output.
For catalogue, user manual, software, demo etc,please refer to"download" from home page of www.mochuan.en.alibaba.com thanks in advance!
