Easy View 4-wire Industrial 7" Modbus Programmable Hmi Touch Screen

Easy View 4-wire Industrial 7
Easy View 4-wire Industrial 7
US$ 102 - 115 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MOCHUAN
Place of Origin:
China
Model Number:
MC4070C
Contact Supplier Request Quote Chat Now
Wuxi Mochuan Drives Technology Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGAHAI QINGDAO GUANGZHOU
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MOCHUAN
Place of Origin China
Model Number MC4070C

 easy view 4-wire industrial 7" modbus programmable hmi touch screen



Product Description
Technical Data and All Size of programmable touch screen
Item  MC4043C MC4070C MC4097C MC4097IE
Bottom Software Linux
Compatible Labtop OS of programming software WIN7/ WIN10/ WINXP
CPU Cortex-A8 600MHz Cortex-A8 800MHz
Touch Screen 4 wire resistive touch screen
Display     Screen Size 4.3" TFT LCD 7" TFT LCD 9.7" TFT LCD
Resolution 480x272 800x480 1224x768
 Colors 16,000k(24 bit)  16 bit
 Brightness  300 cd/m2 420 cd/m2
 Backlight  LED
Storage       Flash  128M
 RAM  128M
 SD Card N/A supporting
Ports  USB Port USB Host 2.0*1, USB Device 2.0*1
 Serial Port   COM1: RS232/RS485/RS422   COM1/COM2: RS232/RS485/RS232

   COM3: RS232

  COM3/COM4: RS232
Download Project U-Disk/ USB Device USB Host/ USB Device U-Disk/USB-Device/SD Card/ Ethernet
Power      Power Supply    24V DC, input range: 9~28V DC   DC24V, input range: DC18~28v
Power
power isolation   protected from thunderstrike and surging    isolated power supply, protect from thunderstrike and surging
Power Down Allowed
Seismic resistance   10 ~ 25 Hz (X, Y, Z direction 2G/30 minute)
Dimensions     Shell  ABS
 Dimension/mm  128x102x32  204x145x44.5  276x213x39
 Mounting Size/mm  120x93  192x138 259x201
 Weight/kg 0.52  0.65  1.2
 Environment    Protection front IP 65(with NEMA panel), back IP20
 Temperature  Storage: -20℃~60℃; Working: 0℃~50℃
 Humidity   10 ~ 90%RH( No Condensation)
 CE Certification    EN61000-6-2:2005, EN61000-6- 4:2007 Standard
 RoHs   compplied, surge immunity: ±4KV, EFT: ±4KV, ESD: 4KV, Air: 8KV
 Programming Software   above Mochuan Studio V1.0

hmi prices.jpg

hmi price.JPG




Product Feature

Windows resistive hmi.jpg



Security Management of Project File:

Including decompilation, project file code, and ID. When ID could not match HMI's, project file will not work.

HMI human machine interface.jpg



Operating Records:

1. record all the operating steps, including day, time, content, etc and clearly control fault operation

2. could be stored as CSV file to analysis operating records

3. could be printed to paper statement.

resistive HMI.jpg

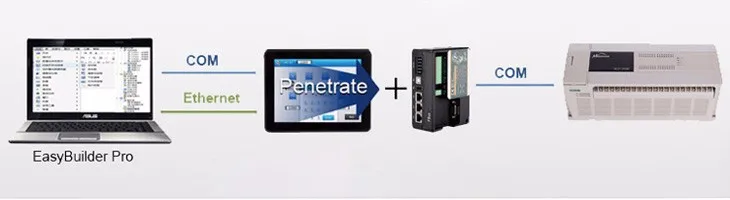

Penetrate Communication:

1. Directly upload/ download plc program, reverse program, monitor plc state, etc. through HMI and F-Box

2. It is reliable through serial interface or Ethernet penetration

3. Supporting PLC: Delta DVP, Fetek FB, LS XEC/XGI, Mitsubishi FX0s/ FX1n/FX3u, Omron CJ/CS, etc.

hmi panel pc monitor.jpg



Multi-Language:

could build various language environment, and support up to 12 various language for choice presented at one time.

multi-language hmi panel pc.jpg



Compatible OS System of Programming Software-Mochuan Studio: Win7/ Win10/ Winxp:

China industrial hmi.jpg

Application

HMI application

Packaging & Shipping

package

Shipping terms of programmable touch screen

 1. Fedex/DHL/UPS/TNT for samples, door to door;

 2. By air or by sea for batch goods for FCL, airport/port receving;

 3. Customers specifying freight forwarders for negotiable shipping nethods.

 4. Delivery time: 3~7 days for samples, 5~25days for batch goods.



 Payment Terms of programmable touch screen

 1. Payment : T/T, Western Uion, MoneygRAM, Paypal( 30% deposits, 70% balance before delivery); trade assurance from aliaba

 2. MOQ: 1 set;



FAQ

1. Do you provide the engineer to program the project file per user's tech requests?

 For simple tech requests, of course, it is ok, and for free. But for a complicated one, or a full set of project file including programmable touch screen and PLC, some fee should be charged.



2. Do your programmable touch screen support all brand PLC?

The programmable touch screensupport alsmost all foreign and Chinese PLC.



3. If one brand PLC is not in your supported list, what is your sdolution?

There are two solutions: the first one is to give us your detailed PLC drives tech data, then the tech depart program it into our programmable touch screen; the second is to make it throguh Modbus communication.



4. Do you have a recommended power supply?

The power supply of programmable touch screen is DC24V. So a external DC24V switch power supply is needed to buy by users. It is a general device, which is very easy to buy in the electronic market.



5. Do your capacitive programmable touch screen support Modbus TCP/IP and Modbus RTU?

Of course, yes, it could be seen in our programming software-Mochuan Studio. If you need, please contact us for its screenshot.



6. What's the difference between your programmable touch screen and pc?

One biggest difference is that our hmi is to monitor industrial machine's running state through a programmed project file, and do not support APP, Video&audio input&output.
