Help Center37mm Diameter Sanitary Ware DC Gear Motor With 24V / Customized Voltage Range GM37-3429SA
Related Products
-
Metal Gearbox DC Gear Motor 6V , 12 Volt Gear Reduction Motor for Household Application GM37-385SAUS$ 7.2 - 7.8MOQ: 2000 Pieces -
High Precision Gear Motor 25mm RoHS / ISO / TS16949 Certificated GM25-395SAUS$ 7.2 - 7.8MOQ: 2000 Pieces
-
Sanitary Ware Whisk Use 6V / 9V /12V DC Gear Reduction Motor 322mA Rated Load Current GM25-370CHUS$ 7.2 - 7.8MOQ: 2000 Pieces
-
Small DC Gear Motor for Kitchen Appliances , Mental High Torque DC Motor GM25-330CHUS$ 5.6 - 6.3MOQ: 2000 Pieces
-
Low Noise Coffee Machine Whisk Gear Motor With 0.1 - 10.0W Output GM25-300SHUS$ 5.6 - 6.3MOQ: 2000 Pieces
Detailed Product Description
| Voltage Range: | 24V Or Customized | Material: | Metal Gear High Precision Gear |
|---|---|---|---|
| Diameter: | 37mm | No Load Speed: | 5RPM |
| No Load Current: | 25mA | Rated Load Torque: | 28890g.cm |
| Rated Load Speed: | 3.9RPM | Rated Load Current: | 90mA |
| Gear Ratio: | 490:1 |
5V / 6V / 12V / 24V 37mm sanitary ware Metal Gear-box motorDC Gear Motor
Typical Applications
Household application
electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
- Automotive products
conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
- Medical equipments
blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
- Electric power tools
electric drill, screwdriver and etc.
- cosmetic tool
eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
- Office automation equipments
OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
- Toys and models
radio control model, automatic cruise control, ride-on toy and etc.
- Industrial automation
display, flow control valves and etc.
- Precision instruments
monitor, optics instruments,automatic vending machine and etc.
- DC Gear-Box Motor
- Diameter : Φ37.0mm
- Output : APPROX 0.1~20.0W
- Noise Level : Less than 50dB
- Low noise, stable performance, quality assurance
Specifications
The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements
| Reduction Ratio | 1 : 10 | 1 : 30 | 1 :50 | 1 : 70 | 1 : 90 | 1 : 150 | 1 : 210 | 1 : 270 | 1 : 490 | / | / | / | |
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | Max Instant Torque of Gear Box | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | Gear Ratio | ||||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | |||||
| GM37K-3429SA-12595Y-30 | 22.0-25.0 | 24.0V | 81 | 0.025 | 63 | 0.090 | 173 | 1768 | 2.16 | 788 | 8040 | 30 | |
| GM37K-3429SA-12595Y-90 | 22.0-25.0 | 24.0V | 27 | 0.025 | 21 | 0.090 | 520.0 | 5305 | 2.16 | 2364 | 24120 | 90 | |
| GM37K-3429SA-12595Y-210 | 22.0-25.0 | 24.0V | 11 | 0.025 | 9 | 0.090 | 1213.8 | 12380 | 2.16 | 5517 | 56280 | 210 | |
| GM37K-3429SA-12595Y-490 | 22.0-25.0 | 24.0V | 5 | 0.025 | 3.9 | 0.090 | 2832 | 28890 | 2.16 | 2941 | 30000 | 490 | |

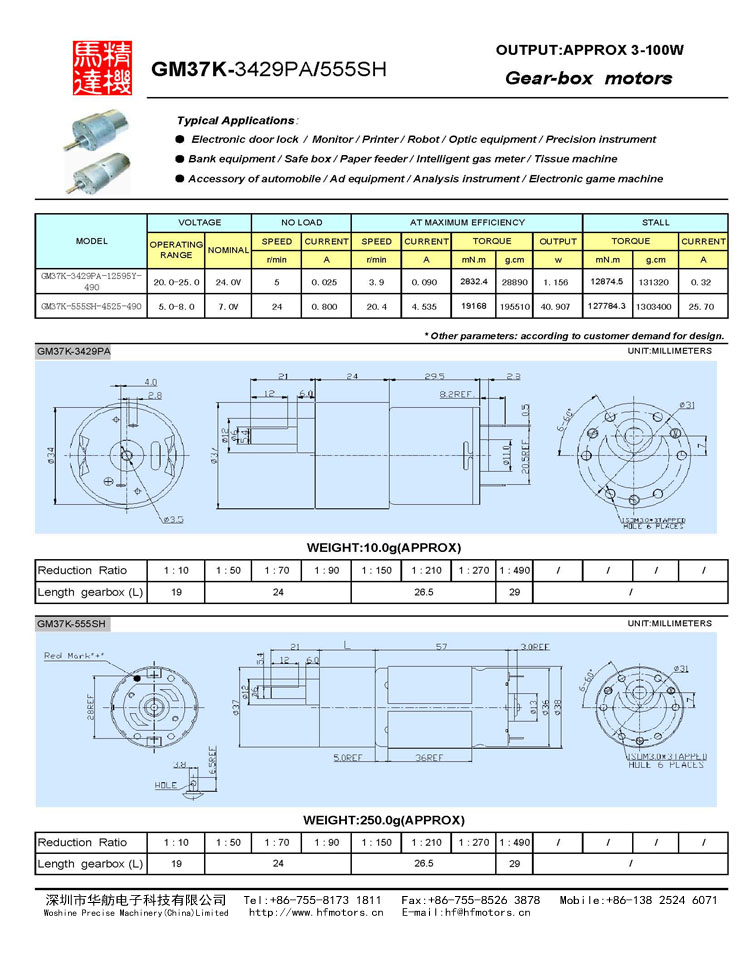

Drawing
Product Details Show
Competitive Advantage
- 16 years experience in manufacturing motor and gearbox motor
- Experienced Staff: average 12 years experience in R&D , ODM & OEM
- International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 20-25 working days after payment
- Quality Approvals
- Small Orders Accepted
- Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc
Quality Cotrol Test
- Reliability Test & Laboratory
- Noise Test
- Water-proof Test
- Life Test
- Impact Test
- Storage Test
- Salt Spray Test
- Environmental Related Substance
