52kg Light Weight Mini Excavator Tracks 45 Links With High Running Speed

Shanghai Puyi Industrial Co., Ltd
52kg Light Weight Mini Excavator Tracks 45 Links With High Running Speed thumbnail-1
52kg Light Weight Mini Excavator Tracks 45 Links With High Running Speed thumbnail-2
52kg Light Weight Mini Excavator Tracks 45 Links With High Running Speed thumbnail-3

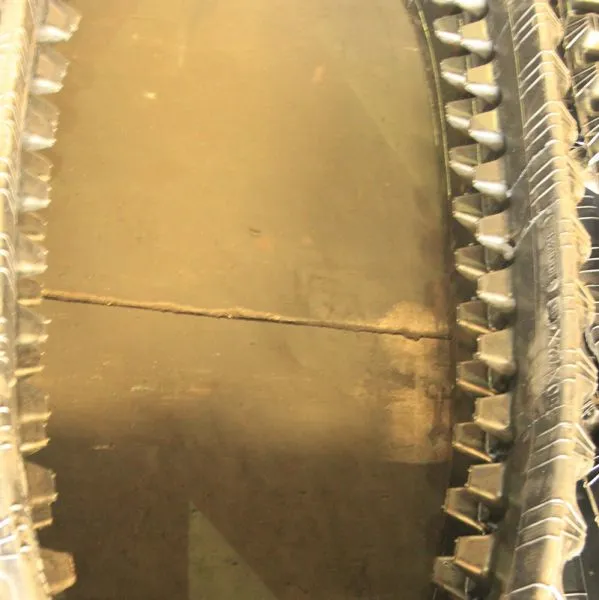

52kg Light Weight Mini Excavator Tracks 45 Links With High Running Speed photo-1

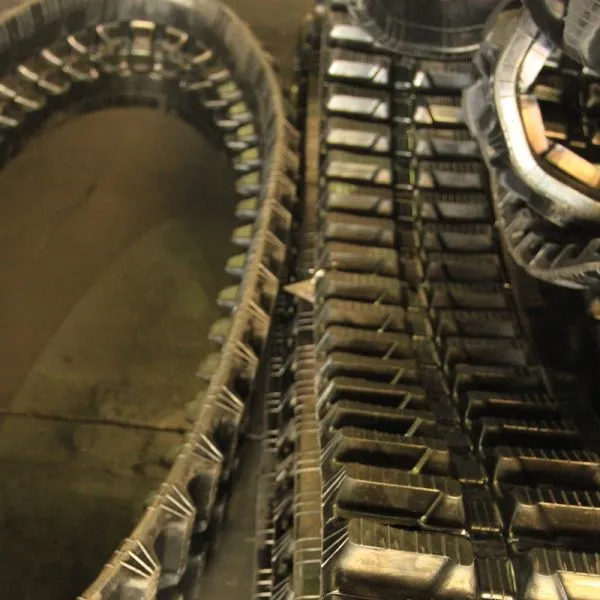

52kg Light Weight Mini Excavator Tracks 45 Links With High Running Speed photo-2

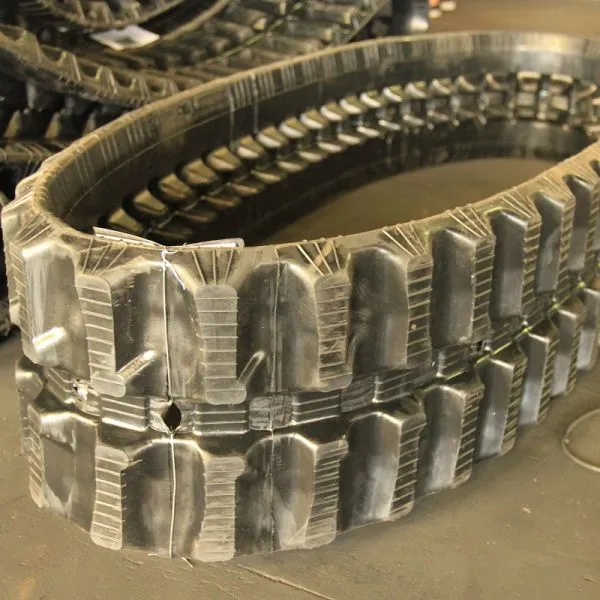

52kg Light Weight Mini Excavator Tracks 45 Links With High Running Speed photo-3
US$ 50 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
POOYERT
Place of Origin:
China
Model Number:
250 x 72x 45
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name POOYERT
Place of Origin China
Model Number 250 x 72x 45
rubber track size 250 X 72 X 45 for mini excavator / dumper / caterpillar / bobcat / dynapac



1.Product Information

1.Name of commodityRubber Track 250 x 72x 45 for mini excavators
2.Width250mm
3.Pitch72mm
4.Links45
5.Total Length3240mm
6.Weight52kg
7.MaterialRubber & Steel
8.Steel cord typeContinuous inner steel cord with joint free
9.WarrantyGuarantee one year under normal use




2.Application


BrandOriginal SizePOOYERT Size1RollerPOOYERT Size2Roller
KC120 (KUBOTA)250x72x45250x72x45A1230x72x45A1
KC140 (KUBOTA)250x72x45250x72x45A1230x72x45A1
DUMPER 1500 (AVANT TECNO)250x72x45250x72x45A1

320 (BOBCAT)250x72x45250x72x45B1

X220 (BOBCAT)250x72x45250x72x45A1

X320 (BOBCAT)250x72x45250x72x45A1

X322 (BOBCAT)250x72x45250x72x45A1

MS010 (CATERPILLAR)250x72x45250x72x45A1230x72x45A1
CC800 (CHIKUSUI)250x72x45250x72x45A1230x72x45A1
GC640 (CHIKUSUI)250x72x45250x72x45A1230x72x45A1
XT850 (DITCH WITCH)250x72x45250x72x45A1

D15 (DYNAPAC)250x72x45250x72x45A1230x72x45A1
FC15 (DYNAPAC)250x72x45250x72x45A1230x72x45A1
VC15 (DYNAPAC)250x72x45250x72x45A1

VD15 (DYNAPAC)250x72x45250x72x45A1230x72x45A1
EB14 (ECOMAT)250x72x45250x72x45A1230x72x45A1
EB14.4 (ECOMAT)250x72x45250x72x45A1230x72x45
EB16.4 (ECOMAT)250x72x45250x72x45A1230x72x45A1
210HVS (EUROCAT)250x72x45250x72x45A1

210HVS (EUROCAT)250x72x45250x72x45A1

M135 (GEHLMAX)250x72x45250x72x45A1230x72x45A1
MB1135 (GEHLMAX)250x72x45250x72x45A1

MB1135S (GEHLMAX)250x72x45250x72x45A1230x72x45A1
MB145 (GEHLMAX)250x72x45250x72x45A1230x72x45A1
MB165 (GEHLMAX)250x72x45250x72x45A1230x72x45A1
N06 (HANIX)250x72x45250x72x45A1230x72x45A1
N060 (HANIX)250x72x45250x72x45A1230x72x45A1
N120 (HANIX)250x72x45250x72x45A1230x72x45A1
N120R (HANIX)250x72x45250x72x45A1230x72x45A1
104TL (LIBRA)250x72x45250x72x45A1230x72x45A1
120 (LIBRA)250x72x45250x72x45A1230x72x45A1
M1 (MACMOTER)250x72x45250x72x45A1230x72x45A1
M1 MINIROPA 15 (MACMOTER)250x72x45250x72x45A1230x72x45A1
M1S (MACMOTER)250x72x45250x72x45A1230x72x45A1
M2 (MACMOTER)250x72x45250x72x45A1230x72x45A1
MB1355 (MACMOTER)250x72x45250x72x45A1230x72x45A1
MB135S (MACMOTER)250x72x45250x72x45A1230x72x45A1
MINIROPA M1 (MACMOTER)250x72x45250x72x45A1230x72x45A1
WIEBA15 (MACMOTER)250x72x45250x72x45A1230x72x45A1
YEW5D1 (MINICARRIER)250x72x45250x72x45A1230x72x45
YFW5 (MINICARRIER)250x72x45250x72x45A1230x72x45
MS010 (MITSUBISHI)250x72x45250x72x45A1230x72x45A1
N06 (NISSAN)250x72x45250x72x45A1

N060 (NISSAN)250x72x45250x72x45A1

N120 (NISSAN)250x72x45250x72x45A1

N120R (NISSAN)250x72x45250x72x45A1230x72x45A1
N120R (NISSAN)250x72x45250x72x45A1230x72x45A1
CITY (ORENSTEIN E KOPPEL)250x72x45250x72x45A1230x72x45A1
CITY2.1 (ORENSTEIN E KOPPEL)250x72x45250x72x45A1230x72x45A1
RH1 (ORENSTEIN E KOPPEL)250x72x45250x72x45A1230x72x45A1
RH1.1 (ORENSTEIN E KOPPEL)250x72x45250x72x45A1230x72x45A1
RH1.15 (ORENSTEIN E KOPPEL)250x72x45250x72x45A1230x72x45A1
RH1.2 (ORENSTEIN E KOPPEL)250x72x45250x72x45A1230x72x45A1
RH2 (ORENSTEIN E KOPPEL)250x72x45250x72x45A1230x72x45A1
RH2.1 (ORENSTEIN E KOPPEL)250x72x45250x72x45A1230x72x45A1
RN1.1 (ORENSTEIN E KOPPEL)250x72x45250x72x45A1230x72x45A1
RN2.1 (ORENSTEIN E KOPPEL)250x72x45250x72x45A1230x72x45A1
FZ150 (PAZZAGLIA)250x72x45250x72x45A1230x72x45A1
FZ160 (PAZZAGLIA)250x72x45250x72x45A1

HR02 (SCHAEFF)250x72x45250x72x45A1

HR2 (SCHAEFF)250x72x45250x72x45A1230x72x45A1
N120 (SCHAEFF)250x72x45250x72x45A1230x72x45A1
TC960D3 (TAKEUCHI)250x72x45230x72x45A1


3.Production process


Raw Material: Natural rubber / SBR rubber/ Kevlar fiber / Metal / Steel cord

Step: 1.Natural rubber and SBR rubber mixed together with special ratio then they will be formed as

rubber block

          2.Steel cord coverd with kevlar fibe

          3.Metal parts will be injected with special compounds which can improve their performance

          3.The rubber block , kevlar fiber cord and metal will be put on the mould in ordered

          4.The mould with materials will be deliver in to the big production machine, the machinery use high

temperature and high volume press to make all the material together.



4. Packing

The goods will be packed by wrapping film then bundle on the wooden pallet by strong rope in order to make sure the safe transportation.


5.Parameter for more size
Width*Pitch length(mm)Number of LinksWidth*Pitch length(mm)Number of LinksWidth*Pitch length(mm)Number of Links
130*7228-53300*52.5K72-84400*72.5KW68-92
150*6028-49300*52.5KW72-92400*7468-76
150*7229-40KB300*52.572-92400*75.5K74
170*6030-40KB300*52.5N72-98B400*8652-55
180*6030-40JD300*52.5N72-98400*9042-56
180*7230-58300*53K80-84Y400*14236-37
180*72K30-37300*5570-86400*14436-41
B180*72K34-51300*55.5K76-82Y400*144K36-41
B180*72A30-51300*71K72-55420*10050-58
H180*7230-50300*109N25-42450*7176-88
190*6030-40K300*10937-41DW450*7176-88
190*7234-39300*109WK35-42450*73.576-84
200*7234-47B300*8478-52450*7680-84
200-*72K37-47T300*86K48-52450*81N72-80
230*4860-84320*52.572-98450*81W72-78
230*48K60-84B320*52.568-98KB450*81.572-80
230*7242-56320*5470-84K450*83.572-74
230*72K42-56B320*8649-52B450*8453-56
230*9630-48320*9052-56B450*8652-55
230*10130-36320*10038-54450*9058-76
250*47K84320*100W37-65KU450*9058-76
250*48.5K80-88Y320*106K39-43T450*100K48-65
250*52.5K72-78350*52.570-92K450*16338
250*7247-57350*54.5K80-86485*92W74
B250*7234-60B350*55K77-98500*9076-82
B250*72B42-58350*5680-86500-9272-84
E250*7237-58350*75.5K74500*92W78-84
250*9635-38350*9042-56500*10071
250*10935-38350*10046-60K500*14635
260*55.5K74-80350*10840-46600*10076-80
Y260*9638-41350*10941-44600*12556-64
260*10935-39Y370*107K39-41700*10080-98
280*7245-64400*72.5N70-80750*15066
Y280*106K35-42400*72.5W68-92800*12580
300*52.5N72-98Y400*72.5K72-74

6.Company introduction

Our firm established in 2000, with almost 20 years production and administration experience. With register capital around 2 billion yuan. Through 18 years develop, our company has producted various rubber tracks and related rubber product for our clients. Our goods share with good quality and exported to more than 100 countries and region.
