Help CenterH.264 1 in 1 hd Video Encoder MPEG-2 HD/SD and MPEG-4 AVC/H.264 HD/SD Video Encoding
Related Products
-
Udp Multicast hd Encoder for IPTV Digital HeadendUS$ 1 - 500MOQ: 1 Piece -
8 in 1 Iptv hd Over ip H.264 Encoder 8 SPTS (12/16/20/24 SPTS) IP or 1MPTS Output Over UDP/RTPUS$ 1 - 4000MOQ: 1 Piece
-
Digital 8/12/16/20/24 Channel Cable tv Digital MPEG4 AVC/H.264 hd To IP encoder 8 in 1US$ 1 - 4000MOQ: 1 Piece
-
Real Time Live Streaming Provideo hd To IP Encoder H.264 Sdi Mpeg1 Mpeg4 IptvUS$ 1 - 4000MOQ: 1 Piece
-
2018 Best Selling Hotel TV system hd to H264 Mpeg4 ip Encoder HardwareUS$ 1 - 4000MOQ: 1 Piece
Outline

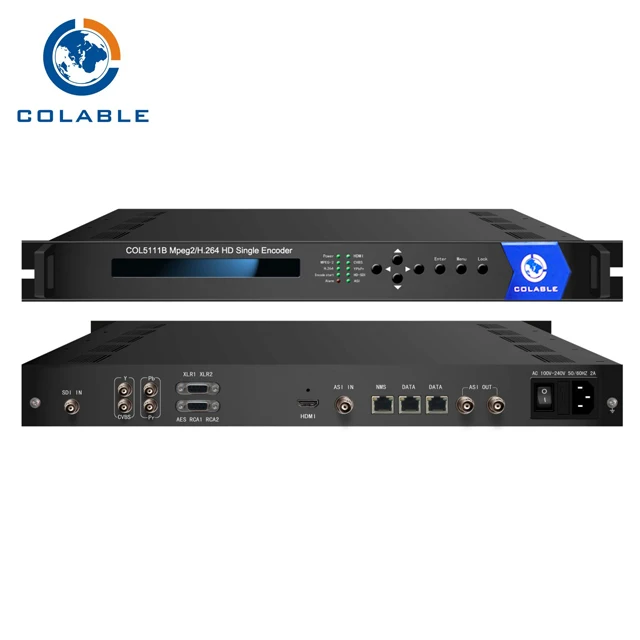

COL5111B MPEG-2/H.264 HD Encoder is the new broadcasting audio & video encoding and
multiplexing device with powerful functionality. It is equipped with multiple video input interfaces
(SDI, CVBS, YPbPr and HDMI) and audio input interfaces (AES, RCA and XLR).
It supports both MPEG-2 and MPEG-4 AVC/H.264 HD/SD video encoding and MPEG1 Layer II,
HE-AAC and LC-AAC audio encoding. Multiplexing function is also embedded to select the ASI
input programs and output stream through ASI/IP port in the same time.
Features
1.MPEG-2 HD/SD and MPEG-4 AVC/H.264 HD/SD video encoding
2.Support 1080I,720P, 480I, 576I and various PIP video resolution
3.MPEG1 Layer II, HE-AAC (v1&v2) and LC-AAC audio encoding
4.Support 2 stereo or 4 Mono audio encoding
5.Support AC3 pass through (for SDI in only)
6.Support digital video + analog audio input and encode
7.Support CC (closed caption), EIA 608 and EIA 708(for SDI in only)
8.Applicable for one Seg/ISDB-T utilization ( 2 streams output simultaneously:1 for one-seg
and 1 for main stream)
9.IP (MPTS/8*SPTS) Output; ASI Output
10.Support UDP/RTP media transmission protocols & multicast/unicast output
11.LCD / keyboard control and web management

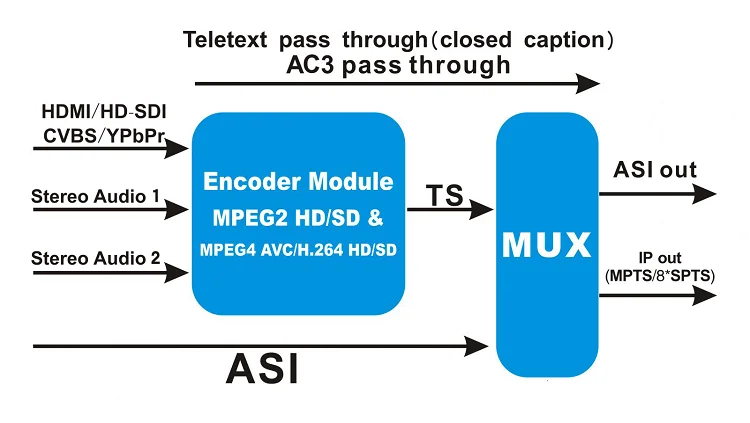

Principle Chart
Technical Specifications
Input |
1×SDI, 1×CVBS, 1×YPbPr and 1×HDMI input |
|||
2×XLR, 2×RCA and 1×AES inputs | ||||
1×ASI input, BNC interface | ||||
Video |
Resolution |
Input |
Output |
|
1080i(at)60 |
1920×1080, 1440×1080, 1280×1080i |
|||
1080i (at)59.94 | ||||
1080i (at)50 | ||||
720p(at)59.94 |
1280×720, 960×720p |
|||
720p(at)50 | ||||
576i |
720×576, 704×576, 640×576, 544×576, 528×576, 352×576 |
|||
480i |
720×480, 704×480, 640×480, 544×480, 528×480, 352×480 |
|||
Encoding |
MPEG-2 HD/SD; MPEG-4 AVC/H.264 HD/SD |
|||
Bit-rate |
0.25Mbps~60.5Mbps |
|||
Rate Control |
CBR/VBR |
|||
GOP Structure |
Auto, IP, IPB, IPBB, IPBBB, IPBBBB, IPBBBBB |
|||
Aspect Ratio |
4:3; 16:9; 1:1; 2.35:1 |
|||
Chroma |
4:2:0; 4:2:2 (Applied to all resolution under MPEG2 compression) |
|||
Advanced Pretreatment |
De-interlacing, noise reduction, sharpening |
|||
Video (one-seg) |
Resolution |
96×96, 128×96, 128×128, 192×192, 352×240, 352×288, 416×240 |
||
Encoding |
MPEG-2; H.264; Auto (follow the main stream format: MPEG-2 or H.264) |
|||
Bit-rate |
0-1.0 Mbps |
|||
Aspect Ratio |
4:3; 16:9; Auto (follow the main stream) |
|||
Audio |
Encoding |
MPEG-1 Layer II, HE-AAC (v1&v2), LC-AAC; AC3 passthrough (for SDI in only) |
||
Sampling rate |
48KHz |
|||
Resolution |
24-bit |
|||
Bit-rate |
32Kbps~384Kbps |
|||
Multiplexing |
1 ASI input multiplexed with local 1 channels TS |
|||
Delay |
1400ms - 5000ms |
|||
Stream output |
2×ASI output ports, BNC interface |
|||
MPTS/8*SPTS over UDP/RTP, 10/100 Base-T Ethernet interface (UDP/RTP multicast/unicast) | ||||
System function |
LCD/keyboard and web management |
|||
Language: English | ||||
Ethernet software upgrade | ||||
General |
Dimensions |
482mm×405mm×44.5mm (W × D × H) |
||
Approx weight |
4.5Kg |
|||
Temperature |
0~45℃(Operation), -20~80℃(Storage) |
|||
Power requirement |
AC110V±10%, 50/60Hz AC 220V±10%,50/60Hz |
|||
Power consumption |
21W |
|||
Application
FAQ
1. Q: What is the payment way you can accept?
A: L/C, TT, Western Union, Credit Card etc.
2. Q: What’s the Lead time for your products?
A: Usually 2-3 working days for headend, 2-4wks for STB or other user end products.
3. Q: What delivery way you adopt?
A: Usually we suggest sample or small order by express or air, big order or big size
goods by sea. We cooperate with many express companies (DHL , UPS, FedEx, EMS etc.)
and famous global carriers with high discount for freight.
