Outline

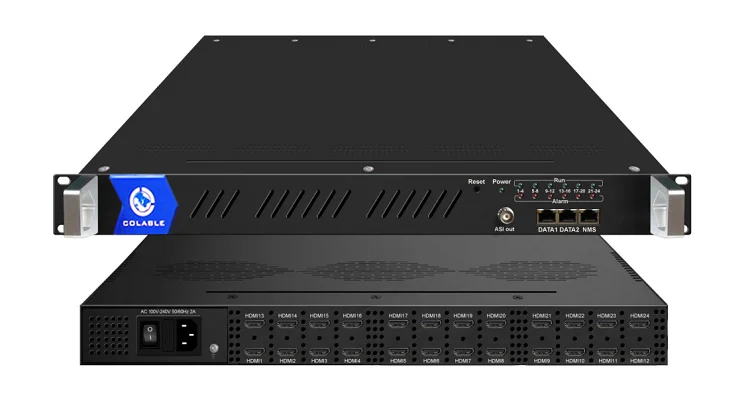

COL5181H H.264 HD IP Encoder is a professional HD audio & video encoding and multiplexing device.
It has 8 HDMI (12/16/20/24 HDMI optional) video input interfaces, supporting MPEG-4 video encoding and
MPEG 1 Layer 2 audio encoding. This device can simultaneously encode 8(12/16/20/24 HDMI optional)
channel HD audio & video; moreover, it has an IP output port can support 1MPTS and 8SPTS (12/16/20/24
SPTS) IP out. In conclusion, its high integrated and cost effective design makes the device widely used in
varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting etc.
Features
1. 8/12/16/20/24× HDMI video inputs with 8/12/1620//24 SPTS and 1 MPTS output through Data 1 or Data 2
2. Support MPEG4 AVC/H.264 video encoding format
3. MPEG1 Layer II audio encoding format, support audio gain adjustment
4. Support 1 ASI output (optional) as copy of MPTS
5. Support IP output over UDP and RTP
6. Support QR code, LOGO, OSD insertion
7. Support “Null PKT Filter” function
8. Support PID Remapping
9. Support PCR accurate adjusting
10. Support PSI/SI editing and inserting
11. Control via web management, and easy updates via web
12. Lowest cost per channel, breakthrough price
Principle Chart
Technical Specifications
Input |
8 HDMI inputs ( 12/16/20/24 input optional) |
|||
Video |
Resolution |
input |
1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, |
|
output |
1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, |
|||
Encoding |
MPEG-4 AVC/H.264 |
|||
Bit-rate |
1Mbps~13Mbps each channel |
|||
Rate Control |
CBR/VBR |
|||
GOP Structure |
IP…P (P Frame adjustment, without B Frame ) |
|||
Audio |
Encoding |
MPEG-1 Layer 2 |
||
Sampling rate |
48KHz |
|||
Resolution |
24-bit |
|||
Bit-rate |
64kbps,128Kbps,192kbps,224kbps,256kbps, 320kbps,384kbps |
|||
Multiplexing |
Maximum PID Remapping |
180 input per channel |
||
Function |
PID remapping ( automatically or manually) |
|||
Accurate PCR adjusting | ||||
Generate PSI/ SI table automatically | ||||
Stream output |
8 SPTS (12/16/20/24 SPTS) IP or 1MPTS output over UDP/RTP, 1*1000 Base-T Ethernet interface ASI output(optional) as copy of MPTS |
|||
System function |
Network management(WEB) |
|||
Chinese and English language | ||||
Ethernet software upgrade | ||||
Miscellaneous |
Dimension(W×L×H) |
482mm×410mm×44mm |
||
Approx weight |
8kg |
|||
Environment |
0~45℃(work);-20~80℃(Storage) |
|||
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
|||
Power consumption |
70W |
|||
Colable Electronics Co., Ltd is locate in City Chengdu, Sichuan province, main science
and technology R&D center of west China, also one base on Radio and TV broadcasting
industry.
We are specializing on TV broadcasting for about ten years, with network building among
domestic and overseas. Our projects relate to different areas, such as city or village cove
rage, hotel, hospital, university, casino etc. Colable electronics is expert transforming tele
vision system from analogue to digital, or building new digital system in most cost-effective
way. That is the reason why our customers choose us.
Our main products include, satellite decoder (both free and scrambled styles MPEG2/4/
H.264 SD & HD encoder; TS multiplexer, scrambler, QAM/QPSK/COFDM modulator, CAS
& SMS, EPG, DVB-C/S/T set top box, MMDS transmitter, antenna, etc.
Products Qulity: Most of our products get CE approved:set top box have report from State Ad
ministration for Entry Exit Inspection and Quarantine.
Technical Support: Our R&D department is composed br the most experienced engineer with
young university graduate,bring new energy continuously. Customers will be informed at first ti
me as long as our software upgrade or new management software version come out .
Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit.
Usually we use the speediest DHL/UPS/Fedex for small order delivery,and we have long term
cooperated carriers for common air & sea delivery with cheap price and high speed.
Guarantee:All products will have life-long skill support ,head ends for free repair within 3 years.
