Outline

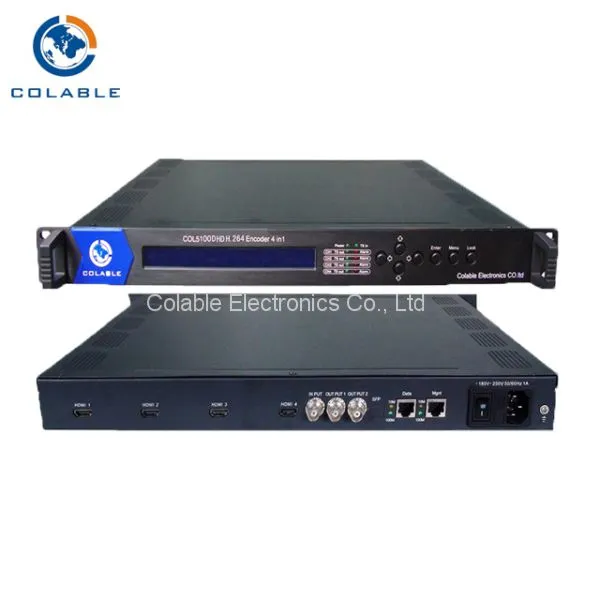

The COL5100D HD H.264 Encoder 4 in 1 has 4 channel HDMI input interfaces,
supporting MPEG4AVC/H.264 High Profile code format. It is a professional HD
audio & video encoding and multiplexing device with powerful functionality. This
device can simultaneously encode 4 channel HD programs, moreover, it has an
ASI input and can multiplex the input TS with the 4 encoded SPTS to generate
a MPTS output. Also, the PSI/SI information can be inserted into MPTS output.
In conclusion, its high integrated and cost effective design makes the device wi
dely used in varieties of digital distribution systems.
Features
1. Audio MPEG1 Layer 2, AAC(optional)
2. 4 channel HDMI(SDI) inputs, 1 ASI input supports multiplexing
3. H.264/AVC High Profile Level 4.0 video encoding support, advanced video
pretreatment algorithm
4. Real- time effective output bit-rate monitoring
5. 720P, 1080I,1080P HD video format support
6. MPTS/4SPTS ASI output
7. LCD / keyboard operating
8. SNMP Network Management support
9. MPTS and 4 channel SPTS over UDP unicast/multicast output
Technical Specifications
Input | 4×HDMI (SDI) inputs | |
1×ASI input, BNC interface | ||
Video | Resolution | 1920*1080_59.94P, 1920*1080_50P |
1920×1080_59.94i, 1920×1080_50i | ||
1280×720_59.94p, 1280×720_50p | ||
720x576_50i, 720x480_59.94i | ||
Encoding | MPEG4 AVC/H.264 High Profile Level 4.0 for HD | |
Bit-rate | 0.8Mbps~19Mbps (each channel) | |
Rate Control | CBR/VBR | |
GOP Structure | IBBP | |
Advanced Pretreatment | De-interlacing, noise reduction, sharpening | |
Audio | Encoding | MPEG-1 Layer 2 |
Sampling rate | 48KHz, 44.1KHz,32KHz | |
Resolution | 24-bit | |
Bit-rate | 64Kb/s~384Kb/s each channel | |
Multiplexing | 1×ASI input multiplexed with 4 encoding channel SPTS | |
Stream output | 2×ASI outputs, BNC interface | |
MPTS and 4 SPTS over UDP,1000 Base-T Ethernet interface (UDP unicast / multicast) | ||
System function | LCD/keyboard operating, SNMP support Chinese-English control interface | |
Ethernet software upgrade | ||
General | Dimensions
| 480mm×456mm×45mm |
Approx weight | 5Kg | |
Temperature range | 0~45℃(Operating), -20~80℃(Storage) | |
Power Requirements | AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | |
Power consumption | 25W | |
Colable Electronics Co., Ltd is locate in City Chengdu, Sichuan province, main science
and technology R&D center of west China, also one base on Radio and TV broadcasting
industry.
We are specializing on TV broadcasting for about ten years, with network building among
domestic and overseas. Our projects relate to different areas, such as city or village cove
rage, hotel, hospital, university, casino etc. Colable electronics is expert transforming tele
vision system from analogue to digital, or building new digital system in most cost-effective
way. That is the reason why our customers choose us.
Our main products include, satellite decoder (both free and scrambled styles MPEG2/4/
H.264 SD & HD encoder; TS multiplexer, scrambler, QAM/QPSK/COFDM modulator, CAS
& SMS, EPG, DVB-C/S/T set top box, MMDS transmitter, antenna, etc.
Products Qulity: Most of our products get CE approved:set top box have report from State Ad
ministration for Entry Exit Inspection and Quarantine.
Technical Support: Our R&D department is composed br the most experienced engineer with
young university graduate,bring new energy continuously. Customers will be informed at first time
as long as our software upgrade or new management software version come out .
Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit.
Usually we use the speediest DHL/UPS/Fedex for small order delivery,and we have long term
cooperated carriers for common air & sea delivery with cheap price and high speed.
Guarantee:All products will have life-long skill support ,head ends for free repair within 3 years.
FAQ
1. Q: What is the payment way you can accept?
A: L/C, TT, Western Union, Credit Card etc.
2. Q: What’s the Lead time for your products?
A: Usually 2-3 working days for headend, 2-4wks for STB or other user end products.
3. Q: What delivery way you adopt?
A: Usually we suggest sample or small order by express or air, big order or big size
goods by sea. We cooperate with many express companies (DHL , UPS, FedEx, EMS etc.)
and famous global carriers with high discount for freight.
