1080p hd Iptv Encoder Video With Wifi H.264 For Youtube U-stream

Name: 1080p hd Iptv Encoder Video With Wifi H.264 For Youtube U-stream
Brand: Colable
SKU: 159101635
Availability: InStock

US$ 1 - 2000 MOQ: 1 Piece

Key Specifications

Brand Name:

Colable

Place of Origin:

China

Model Number:

COL5100

Colable Electronics Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

chengdu

Delivery Detail:

3 days

Brand Name Colable

Place of Origin China

Model Number COL5100

1080p hd iptv encoder video with wifi h.264 For Youtube U-stream

Product Description

Outline

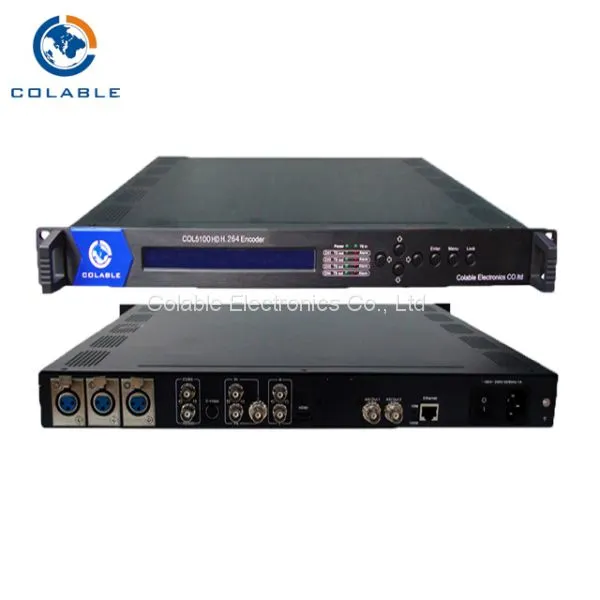

COL5100 HD H.264 Encoder adopts the most advanced H.264 audio encoding algorithm. This device can encode

and transmit high-quality audio & video under the low bit-rate. Also can support AAC (optional), it has several analog

and digital video input interfaces (CVBS, YPbPr, SDI, and HDMI), and audio input interfaces (RCA, XLR, HDMI, AES

and EUB). Its high integrate and cost effective design gives users excellent digital video encoding solution.

Features

1. MPEG1 Audio Layer 2 ,HE_AAC(v2) and LC-AAC audio encoding (optional)

2. CVBS, S-Video, YPbPr analog video input support

3. H.264/AVC High Profile Level 4.0 and H.264/AVC High Profile Level 3.0 encoding support,

advanced video pre-processing algorithms

4. HDMI, HD/SD-SDI digital video input support

5. AES/EBU, HDMI, HD/SD-SDI digital audio input support

6. XLR (balance), RCA (unbalance) analog audio input support

7. PAL, NTSC SD video format support

8. 720P, 1080I,1080P HD video format support

9. NMS and SNMP support

10. UDP/RTP media transmission protocols & unicast/multicast output support

Technical Specifications

Video input			1 × Analog CVBS, BNC interface
			1 ×S-Video Analog YPbPr input, BNC interface
			1 × YPbPr video input, BNC interface
			HD/SD-SDI, BNC interface
			HD interface
Audio input			Analog stereo audio(balanced), XLR interface
			Analog stereo audio(unbalanced), BNC interface
			AES / EBU digital audio, XLR interface
			HD/SD-SDI embedded audio
Video	Resolution		1920x 1080p(at)59.94Hz, 1920 x 1080p(at)50Hz
			1920×1080i (at)59.94Hz, 1920×1080i (at)50Hz
			1280×720p(at)59.94Hz, 1280×720p (at)50Hz
			720×480i (at)59.94Hz, 720×576i (at)50Hz
	Encoding		AVC/H.264 High Profile Level 4.0 for HD AVC/H.264 High Profile Level 3.0 for SD
	Bit-rate		0.8Mbps~20Mbps
	Rate Control		CBR/VBR
	GOP Structure		IBBP
	Advanced Pretreatment		De-interlacing, noise reduction, sharpening
Audio	Encoding		MPEG-1 Layer 2 (HE-AAC V2 and LC-AAC are optional)
	Sampling rate		48KHz
	Resolution		24-bit
	Bit-rate		32Kb/s~384Kb/s
Stream output			2×ASI outputs, BNC interface
			SPTS over UDP/RTP, 10/100Base-T Ethernet interface (UDP/RTP unicast / multicast)
System function			LCD/keyboard operating, NMS support Chinese-English control interface
			Ethernet software upgrade
General		Dimensions	480mm×456mm×45mm
		Approx weight	5Kg
		Temperature range	0~45℃(Operation), -20~80℃(Storage)
		Power requirement	AC110V±10%, 50/60Hz AC 220V±10%,50/60Hz
		Power consumption	17.6W
