Refrigeration water chiller CW-5200 is designed, developed and produced by Guangzhou Teyu Electromechanical Co., Ltd(also known as S&A), a professional Chinese manufacturer of industrial water chillers with 16 year experience.
The production plant of S&A covers an area of 18,000 square meters, enabling the annual production capacity of 60,000 units of water chillers.

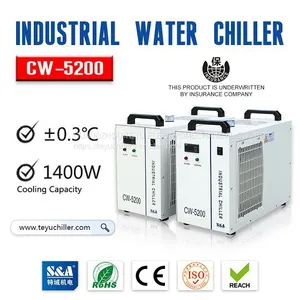

S&A industrial air cooled chiller CW-5200 is refrigeration type water chiller which can provide effective cooling for the equipment which needs to be cooled. S&A water chiller CW-5200 is characterized by the cooling capacity of 1400W and the precise temperature control of±0.3℃ and passes rigid factory test with CE,RoHS and REACH approval.
S&A laser water chiller CW-5200 uses environmental refrigerant R-410a as refrigerant, greatly protecting the environment. The black handles of water chiller CW-5200 can help users lift the chiller very easily due to its compact design.
It has 2 temperature control modes as constant temperature control mode and intelligent control mode which can meet different needs of different users. Under intelligent control mode, the water temperature of CW-5200 water chiller will be self adjusted according to the ambient temperature, really setting users’ hands free.
S&A water chiller CW-5200 has multiple alarm functions, including compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.
S&A chillers have passed ISO, CE,RoHS and REACH approvals and the warranty is 2 years.
CW-5200 video: /Article/03SAwaterchillerCW5200_1.html
chiller CW-5200 specfications:
Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-134a / R-410a
Pump power: 0.03KW/0.05KW/0.1KW; Tank capacity:6L
Max. lift:10M-25M; Max. flow: 10L/min- 16L/min
N.W: 26Kgs; G.W: 29Kgs;
Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H)
About S&A Brand
S&A(TEYU) was founded in 2002. After 16 years of developing and producing industrial water chillers, the headquarter covers an area of 18,000 square meters, and has about 250 employees.
Why choose S&A
Product Advantages:
1. With 11 patent certificates，CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warranty
2.±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;
3. Establish logistic warehouses at USA and Europe;
Manufacturing Advantages:
1.Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;
2. Annual output 60,000 units, product exports rate above 60%；
3. Standard bulk production, standard parts rate up to 80% ；
4. With excellent laboratory testing system, simulates actual working environment for chiller.
