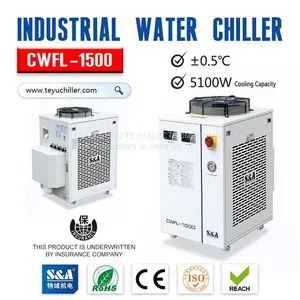

S&A laser water chiller CWFL-1500 specially designed for cooling fiber laser

Laser water chiller CWFL-1500 is designed, developed and produced by Guangzhou Teyu Electromechanical Co., Ltd(also known as S&A), a professional Chinese manufacturer of industrial water chillers with 16 year experience.

The production plant of S&A covers an area of 18,000 square meters, enabling the annual production capacity of 60,000 units of water chillers.

S&A dual temp. water chiller CWFL-1500 is specially designed for cooling 1500W fiber laser.

S&A refrigeration water chiller CWFL-1500 is characterized by the cooling capacity of 5100W and±0.5℃ stability with temperature control range of 5-35℃. It uses environmental refrigerant R-410a as refrigerant, greatly protecting the environment.

S&A industrial water chiller CWFL-1500 has dual temperature control systems and dual waterways, which can provide effective cooling for the laser device and the optics at the same time, greatly saving cost and space.

It is equipped with 3 filters which are able to filter the impurities and ion, greatly avoiding the blockage in the waterways and protecting the laser equipment.

S&A refrigeration water chiller CWFL-1500 has 2 temperature control modes as constant temperature control mode and intelligent control mode which can meet different needs of different users. Under intelligent control mode, the water temperature of CWFL-1500 water chiller will be self adjusted according to the ambient temperature, really setting users’ hands free.

It has multiple alarm functions which can provide great protection to the equipment, including compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.

Water chiller parameter:

 Voltage:220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a

Pump power: 0.55KW; Tank capacity:15L

Max. lift:45M; Max. flow: 70L/min

N.W: 86Kgs; G.W: 96Kgs;

Dimension : 78 X 47 X 89 cm  (L X W X H); Packing dimension: 87 X 60 X 109 cm(L X W X H)

About S&A Brand

S&A(TEYU) was founded in 2002. After 16 years of developing and producing industrial water chillers, the headquarter covers an area of 18,000 square meters, and has about 250 employees.

Why choose S&A

Product Advantages:

1. With 11 patent certificates，CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warranty

2.±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;

3. Establish logistic warehouses at USA and Europe;

Manufacturing Advantages:

1.Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;

2. Annual output 60,000 units, product exports rate above 60%；

3. Standard bulk production, standard parts rate up to 80% ；

4. With excellent laboratory testing system, simulates actual working environment for chiller.
