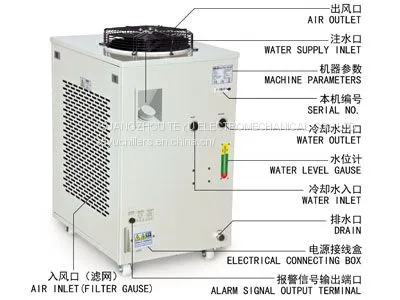

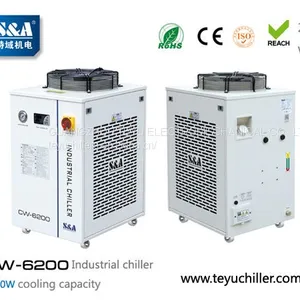

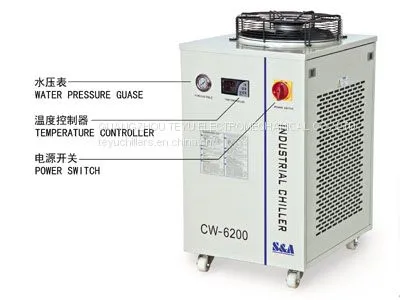

S&A water chiller system CW-6200 with 5.1KW cooling capacity
CW-6200 series is high-precision compression refrigeration water chiller producing by S&A company. S&A has complete material purchasing ecosystem and independent R&D on sheet metal, evaporator, condenser and cores parts of chiller. Strictly execute ISO production management system, using mass modularized standard produces, and standard parts rate up to 80% which are the source of quality stability. Annual production capacity of 60,000 units, focus on large, medium and small power chiller production and manufacture.
Features of CW-6200:
1. 5100W cooling capacity; optional environmental refrigerant;
2. ±0.5℃ precisely temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
5. Multiple power specifications; CE, RoHS and REACH approval;
6. Long working life and simple operation;
7. Optional heater and water filter.
CW-6200 parameter:
Voltage:220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a
Pump power: 0.05KW/0.1KW/0.37~0.75KW; Tank capacity:15L
Max. lift:12M/25M/28~53M; Max. flow: 13L/min- 70L/min
N.W: 69Kgs; G.W: 79Kgs;
Dimension : 67 X 47 X 89 cm (L X W X H); Packing dimension: 74 X 60 X 109 cm(L X W X H)
About S&A Brand
S&A(TEYU) was founded in 2002. After 15 years of development, the headquarter covers an area of 18,000 square meters, and has about 250 employees.
Why choose S&A
Product Advantages:1. With 11 patent certificates，CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warrenty
2.±0.1℃ high precision temperature control, stable cooling performance,support ModBus-485 communication;
3. Establish logistic warehouses at USA and Europe;
Manufacturing Advantages:1.Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;
2. Anual ouput 60,000 units,product exports rate above 60%；
3. Standard bulk production,standard parts rate up to 80% ；
4. With excellent laboratory testing system, simulates actual working environment for chiller.
