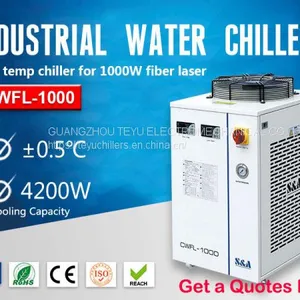

Closed loop water chiller unit CWFL-1000 is specially designed for cooling 1000W fiber laser cutting machine and produced by Guangzhou Teyu Electromechanical Co., Ltd (also known as S&A), a professional China-based water chiller manufacturer with 16-year experience.
S&A dual water circuit recirculating water chiller CWFL-1000 is refrigeration type water chiller which has high & low temperature control system capable of cooling the fiber laser device and the QBH connector/optics at the same time, which is cost saving and space saving.
In order to facilitate the users’ reading of water temperature and ambient temperature, S&A closed loop water chiller unit CWFL-1000 is equipped with two digital temperature controllers T-506 which can also display multiple alarm functions, such as compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.
S&A dual water circuit recirculating water chiller CWFL-1000 is ISO, CE,RoSH,REACH compliant and under 2-year warranty.
CWFL-1000 closed loop water chiller unit video:
/fiber-laser-system-air-cooled-water-chiller-cwfl-1000_n95
CWFL-1000 dual water circuit recirculating water chiller specification:
Voltage:220V; Frequency: 50/60Hz; Refrigerant: R-22 /R-410a
Pump power: 0.05KW; Tank capacity:15L
Max. lift: 45M; Max. flow: 70L/min
N.W: 83Kgs; G.W: 93Kgs;
Dimension : 78 X 47X 89 cm (L X W X H); Packing dimension: 87 X 60 X 109 cm (L X W X H)
About S&A Brand
S&A(TEYU) was founded in 2002. After 16 years of developing and producing industrial water chillers, the headquarter covers an area of 18,000 square meters, and has about 250 employees.
Why choose S&A
Product Advantages:
1. With 11 patent certificates，ISO, CE, RoHS and REACH compliant; Conforms to air transport requirements; 2 years warranty
2.±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;
3. Establish logistic warehouses at USA and Europe;
Manufacturing Advantages:
1. Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;
2. Annual output 60,000 units, product exports rate above 60%；
3. Standard bulk production, standard parts rate up to 80% ；
4. With excellent laboratory testing system, simulates actual working environment for chiller.
