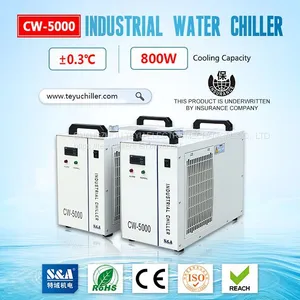

Help CenterS&A Refrigeration Water Chiller CW-5000 With Compact Design and Stable Cooling Performance
Related Products
-
S&A Water Cooling Unit CW-5200 With CE, RoHS and REACH ApprovalUS$ 583 - 750MOQ: 10 Pieces -
S&A Recirculating Air Cooled Chiller CW-6000 With±0.5℃stabilityUS$ 971 - 1200MOQ: 10 Pieces
-
S&A Refrigeration Water Chiller CWFL-1000 With Dual WaterwaysUS$ 1462 - 1600MOQ: 10 Pieces
-
S&A Laser Water Chiller CWFL-1500 Specially Designed for Cooling Fiber LaserUS$ 1620 - 1800MOQ: 10 Pieces
-
Portable Water Chiller CW 5000 for CO2 LaserNegotiableMOQ: 10 Pieces
Recirculating water chiller CW-5000 is designed, developed and produced by Guangzhou Teyu Electromechanical Co., Ltd (also known as S&A), a professional Chinese manufacturer of industrial water chillers with 16-year experience.
The production plant of S&A covers an area of 18,000 square meters, enabling the annual production capacity of 60,000 units of water chillers.
S&A air cooled chiller CW-5000 is very popular among European countries and North America with the annual sales amount of 30,000 units due to its compact design, stable cooling performance, long working life and ease of use.
S&A water chiller CW-5000 features the cooling capacity of 800W and the precise temperature control of±0.3℃ with the temperature control range of 5-35℃. It has been widely applied in cooling CNC spindle, CO2 laser, welding machine and so on.
It has 2 temperature control modes as constant temperature control mode and intelligent control mode which can meet different needs of different users. Under intelligent control mode, the water temperature of CW-5000 water chiller will be self adjusted according to the ambient temperature, really setting users’ hands free.
S&A air cooled chiller CW-5000 has multiple alarm functions, including compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.
S&A chillers have passed ISO, CE,RoHS and REACH approvals and the warranty is 2 years.
CW-5000 video: /Article/02SAwaterchillerCW5000_1.html
CW-5000 water chiller parameter:
Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-134a
Pump power: 0.03KW/0.051KW/0.1KW; Tank capacity:6L
Max. lift:10M-25M; Max. flow: 10L/min- 16L/min
N.W: 24Kgs; G.W: 27Kgs; Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H)
About S&A Brand
S&A(TEYU) was founded in 2002. After 16 years of developing and producing industrial water chillers, the headquarter covers an area of 18,000 square meters, and has about 250 employees.
Why choose S&A
Product Advantages:
1. With 11 patent certificates，CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warranty
2.±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;
3. Establish logistic warehouses at USA and Europe;
Manufacturing Advantages:
1.Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;
2. Annual output 60,000 units, product exports rate above 60%；
3. Standard bulk production, standard parts rate up to 80% ；
4. With excellent laboratory testing system, simulates actual working environment for chiller.
