HCVAC-MAKE YOUR WORLD MORE BEAUTIFUL
Cosmetic cap UV line vacuum metallizing machine,plastic cap vacuum coating machine,plastic cap vacuum coating plant (ZZ-)
(suitable for plastic,glass,resin,metal,wood ect)
The equipment adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
Characteristic: reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.
Applied industry: Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys, tableware, sanitary ware, shoe heel, ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, TPU, etc.
Electroplating effects: general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, seven colors;
Coating color: gold, silver, red, blue, green, purple, multi color, and so on. (Whatever color you want,you could spray the top oil to make colorful)
Technical parameter:
Mode Dimension | ZZ-1214 | ZZ-1416 | ZZ-1618 | ZZ-1820 |
1200*1400mm | 1400*1600mm | 1600*1800mm | 1800*2000mm | |
Film Type | Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc. | |||
Power source Type | Thermal evaporation power, ion bombard power, RF power | |||
Vacuum chamber structure | Vertical double/single door, horizontal single door, pump system postposition | |||
Ultimate vacuum | 8.0*10-4Pa | |||
Vacuum system | Diffusion pump +Roots pump +Mechanical pump +Holding pump | |||
Pump time | Pump from atmosphere to 5.0*10-2,6 minutes | |||
Workpiece motion mode | Public rotation/Frequency control | |||
Control mode | Manual/Automatic all-in-one mode, Touching screen+PLC | |||
Remark | We can design the dimension of the vacuum chamber according to customer’s demand. | |||
We can design the dimension of the vacuum chamber according to your requirements. We can also design and configure the vacuum unit and electric controlling system according to your requirement.

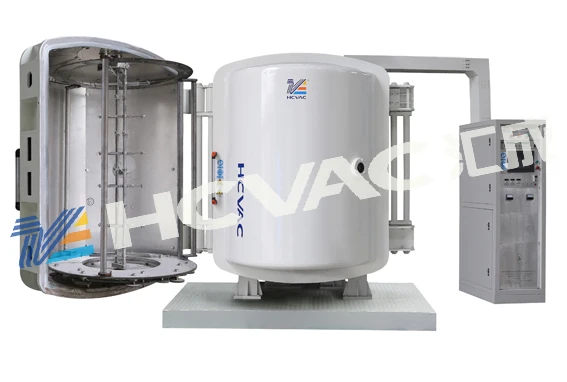

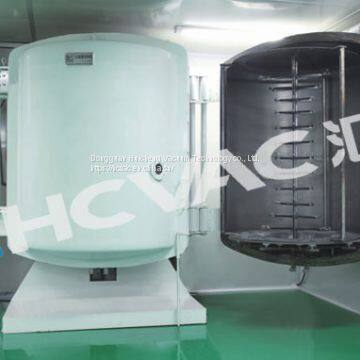

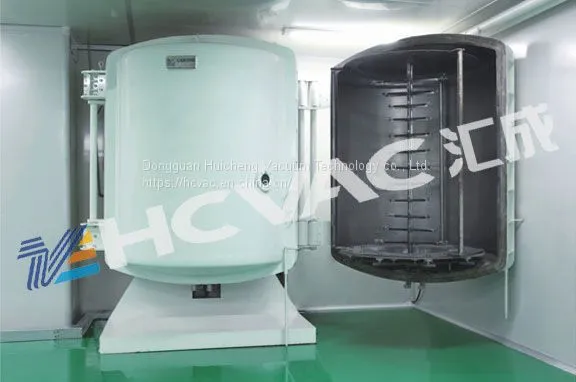

This is our machine:
Stainless steel chamber:
Carbon steel chamber:
UV curing line:

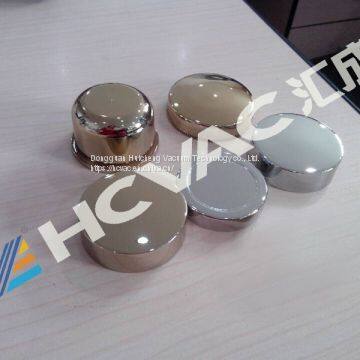

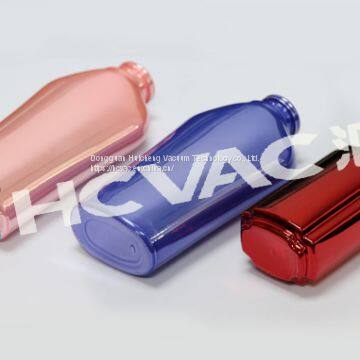

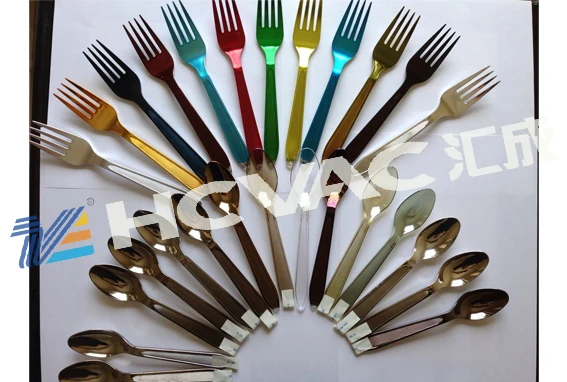

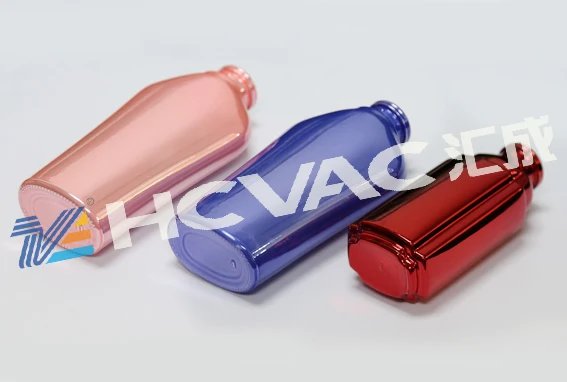

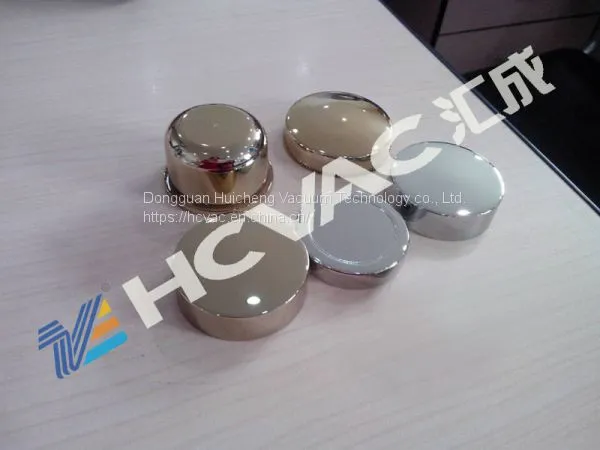

Sampled coated by our machine
Aluminum coating
After aluminum coating in our machine,you could spray whatever color paint to make colorful
Reflective coating
Quality management
Some of our honours
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
Easy to implement
To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the part’s history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
For more information, please feel free to contact us or visit our website: !
