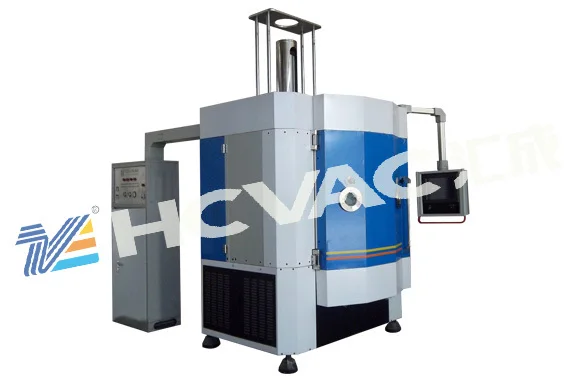

Bathroom tapware, kitchen taps, shower head, faucet pvd vacuum coating machine

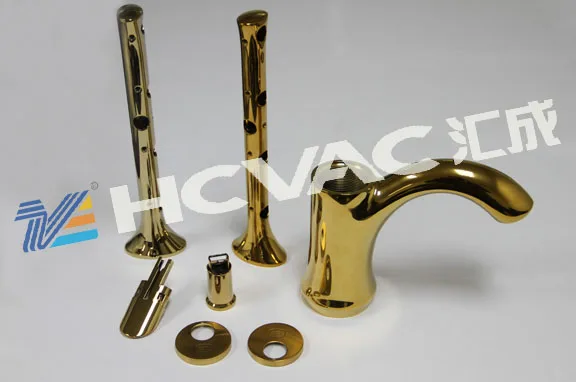

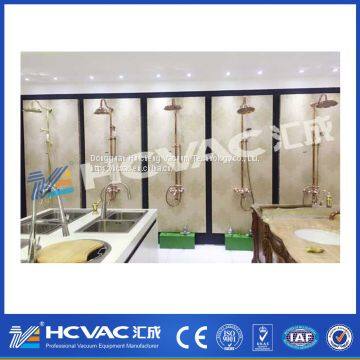

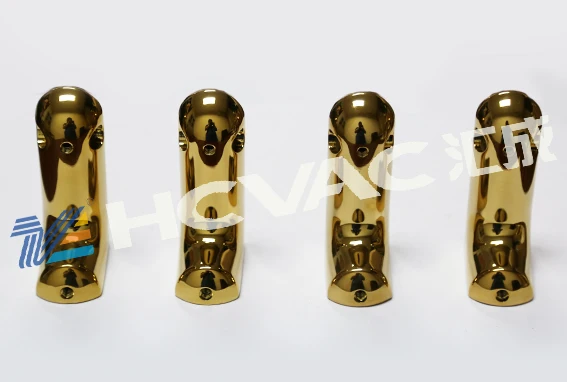

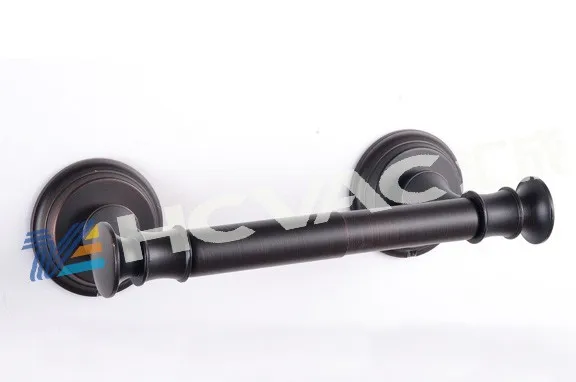

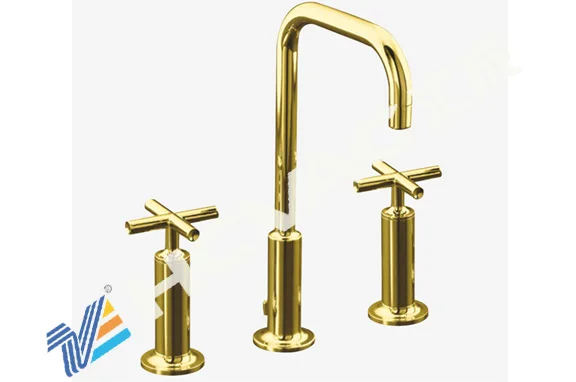

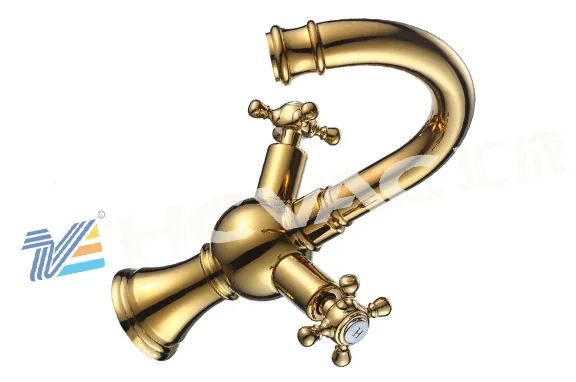

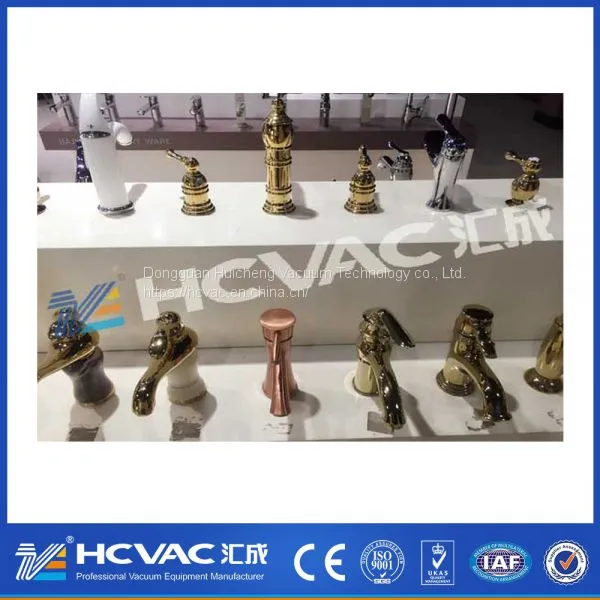

The machine is mainly design for sanitary ware/bathroom fitting parts. It’s equipped with several big size electrical arc evaporation sources and magnetron sputtering coating system, to deposit high performance metal decorative film on brass, zinc alloy, stainless steel, plastic and other metal parts surface. It can get all types of metal color series on substrate. The coating film includes TiN, Zr,T iCN, ZrCN, CrN, CrCN, brass, bronze, chrome etc. Color series includes AF, SN, BN, VF, BV, G, BX, TB, AF, SN, 96CB, CB, TXB, VS, S, BS, BRZ, BGD, PGD and so on. It can get different colors by adjusting coating technics. It is largely used in the sanitary ware/ Kitchen ware field.
HCVAC decorative PVD films are routinely used as a replacement for electroplated chrome. They can be applied directly over almost any substrate material and can be deposited in a wide variety of colors. The process parameters to deposit each color are stored in software recipes with different process steps. Once the coating process has started, all of the relevant process parameters are continuously monitored and controlled by the on-board computer software.
PVD Coating Features:
High wear resistance
High hardness at high operating temperatures
High oxidation resistance
Low friction
Anti-sticking
Scratch resistant
Brilliant finish in specified colour

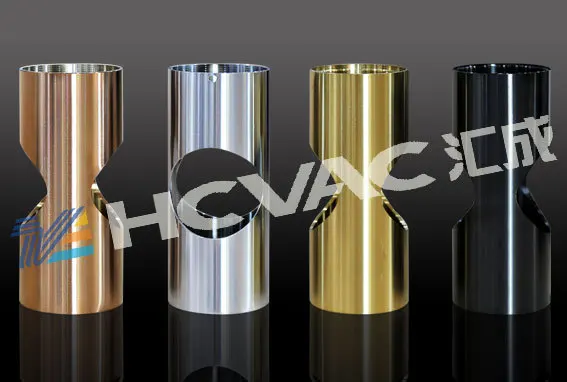

Films classified with colors
Imitation gold series: TiN, ZrN, TiN+Au, ZrN+Au
Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu
Silver white series: CrN, CrSiN, Zr (micro N)
Grey series: Ti, stainless steel (S.S), (S.S) N
Coffee color series: TiCN, TiAlCN, ZrC
Blue series: TiO, CrO, TiALN
Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C, O) and DLC
Technical parameter:
Mode Dimension | JTL-800 | JTL-1100 | JTL-1250 |
800*1000mm | 1100*1000mm | 1250*1300mm | |
Coating mode and main confirguration | Six multi-arc targets + one set of column targets + one set of plane rectangle magnetron sputtering targets |
Eight multi-arc targets + a pair of twin (MF)magnetron sputtering targets | Twelve multi-arc targets + two sets of plane rectangle magnetron sputtering targets+ a pair of twin (MF)magnetron sputtering targets |
Application | metal decorative coating | ||
Power source | Electric arc power, DC magnetron power, MF magnetron power, filament power, pulse power, linear ionized source. | ||
Process gas control | Quality flowmeter + electromagnetism ceramic valve | ||
Vacuum chamber structure | Vertical single(side) door, pump system postposition, double water-cooling | ||
Vacuum system | Molecule pump +Roots pump +Mechanical pump(8.0*10-5Pa) Diffusion pump +Roots pump +Mechanical pump(8.0*10-4Pa) | ||
Workpiece baking temperature |
Normal temperature to 350 centi-degree PID control, radiation heating. | ||
Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute | ||
Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa | ||
Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode | ||
Remark | We can design the dimension of the equipment according to customers special technique requirement. | ||

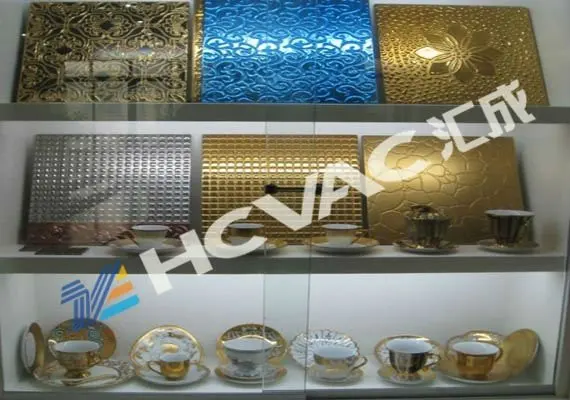

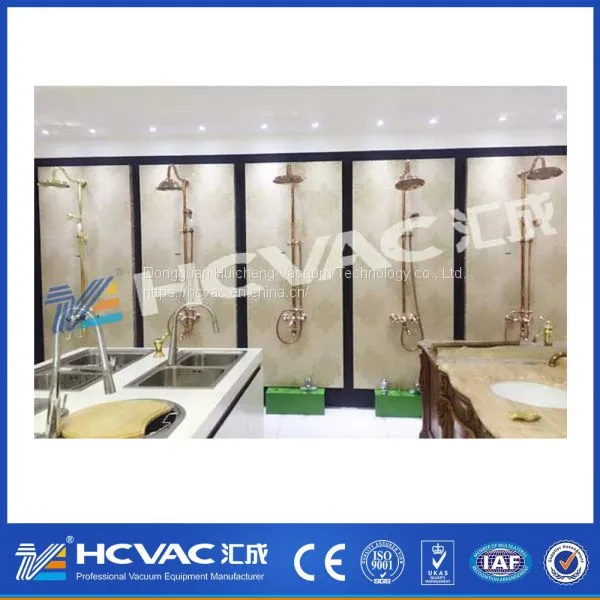

This machine can coat products as below:
1.Hardware,such as tools, sanitary products, doorhandles, locks, metal tableware etc.
2.Ceramics:tiles,cup,mug,plate,mosic, crockery etc.
3.Glass:cup,household utensils,mosic etc.
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
