Jewelry PVD Vacuum Coating Machine/Jewelry Gold Plating Machine Equipment (HCVAC)

Jewelry PVD Vacuum Coating Machine/Jewelry Gold Plating Machine Equipment (HCVAC) thumbnail-1
Jewelry PVD Vacuum Coating Machine/Jewelry Gold Plating Machine Equipment (HCVAC) thumbnail-2
Jewelry PVD Vacuum Coating Machine/Jewelry Gold Plating Machine Equipment (HCVAC) thumbnail-3
Jewelry PVD Vacuum Coating Machine/Jewelry Gold Plating Machine Equipment (HCVAC) thumbnail-4
Jewelry PVD Vacuum Coating Machine/Jewelry Gold Plating Machine Equipment (HCVAC) thumbnail-5
Jewelry PVD Vacuum Coating Machine/Jewelry Gold Plating Machine Equipment (HCVAC) photo-1
Jewelry PVD Vacuum Coating Machine/Jewelry Gold Plating Machine Equipment (HCVAC) photo-2
Jewelry PVD Vacuum Coating Machine/Jewelry Gold Plating Machine Equipment (HCVAC) photo-3
Jewelry PVD Vacuum Coating Machine/Jewelry Gold Plating Machine Equipment (HCVAC) photo-4
Jewelry PVD Vacuum Coating Machine/Jewelry Gold Plating Machine Equipment (HCVAC) photo-5
US$ 8 - 88 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HCVAC
Place of Origin:
China
Model Number:
LH-1215
Contact Supplier Request Quote Chat Now
Dongguan Huicheng Vacuum Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HCVAC
Place of Origin China
Model Number LH-1215
Type Coating Production Line
Certification ISO9001,tuv
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 YEAR
Weight 6-8 tons
Dimension(L*W*H) customized
Condition New
Voltage 380V
Power(W) 45KW
Coating Vacuum Coating
Jewelry PVD Vacuum Coating Machine/Jewelry gold plating machine equipment


Product Description
DETAILED DESCRIPTION





 TECHNOLOGY

Magnetron Sputtering Coating



Plasma coating
Magnetron sputtering is a plasma coating process whereby sputtering material is ejected due to bombardment of ions to the target surface. The vacuum chamber of the PVD coating machine is filled with an inert gas, such as argon. By applying a high voltage, a glow discharge is created, resulting in acceleration of ions to the target surface and a plasma coating. The argon-ions will eject sputtering materials from the target surface (sputtering), resulting in a sputtered coating layer on the products in front of the target.  Magnetron sputtering technology is characterized by:

  • A water-cooled target, so little radiation heat is generated

  • Almost any metallic target material can be sputtered without decomposition

  • Non-conductive materials can be sputtered by using radio frequency (RF)
    or medium frequency (MF) power

  • Oxide coatings can be sputtered (reactive sputtering)

  • Excellent layer uniformity

  • Very smooth sputtered coatings (no droplets)

  • Cathodes (of up to 2 meter long) can be put in any position, therefore high
    flexibility of sputtering equipment design


 FEATURES



-High realibility



-High productivity and flexibility



-Consistently brilliant end product quality



-Full automation capability



-Excellent coating flexibility



-Long lifetime and fast target exchange



-Flexible system configuration



-High speed coating and best PVD homogeneity



HCVAC decorative PVD films are routinely used as a replacement for electroplated chrome.  They can be applied directly over almost any substrate material and can be deposited in a wide variety of colors. The process parameters to deposit each color are stored in software recipes with different process steps. Once the coating process has started, all of the relevant process parameters are continuously monitored and controlled by the on-board computer software.




 APPLICATION



It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper , and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.



This machine is extensively used in the fields of ultra-hard coating for the tools and mould, decorative coating for watch, jewelries, stainless steel tableware, golf head, hotel product, sanitary ware, luminaires, optical frame, hardware, etc .


TECHNICAL DATA



Mode JTL-900 JTL-1100 JTL-1312
Dimension 900*1000mm 1100*1000mm 1350*1200mm
Coating mode and
main confirguration 		Six arc targets +
one set of column targets+ one set of plane
rectangle magnetron
sputtering targets 		Six arc targets + a pair of twin (MF)magnetron sputtering targets Eight arc targets + two sets of plane rectangle magnetron sputtering targets+ a pair of twin (MF)magnetron sputtering targets
Power source Electric arc power, DC magnetron power, MF magnetron power, filament power, pulse power, linear ionized source.
Process gas control Quality flowmeter + electromagnetism ceramic valve
Vacuum chamber
structure 		Vertical single(side) door, pump system postposition, double water-cooling
Vacuum system Molecule pump +Roots pump +Mechanical pump(5.0*10-5Pa)
Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa)
Workpiece baking temperature Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion mode Public rotation Frequency control: 0-20 rotation per minute
Measure mode Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa
Control mode Manual/Automatic/PC/PLC + HMI/PC four choice of control mode
Remark We can design the dimension of the equipment according to customer’s special technique requirement.

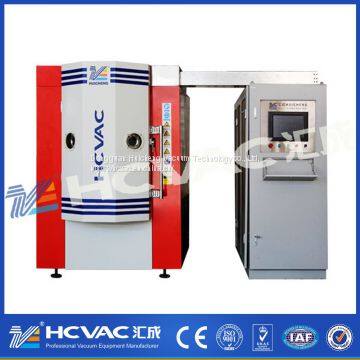

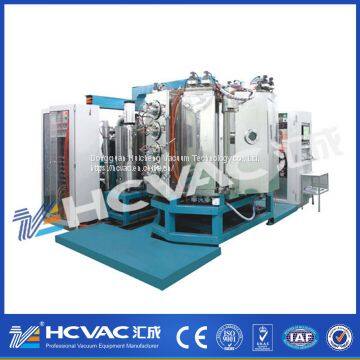

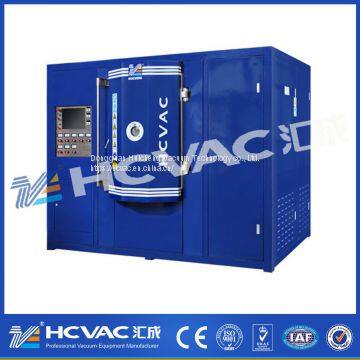

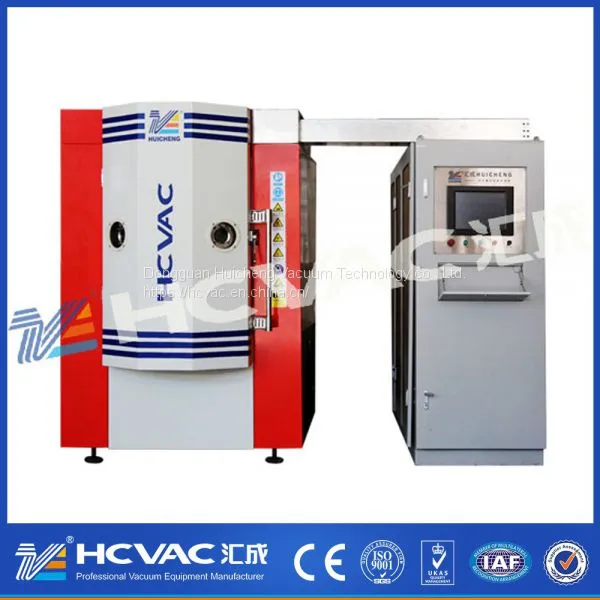

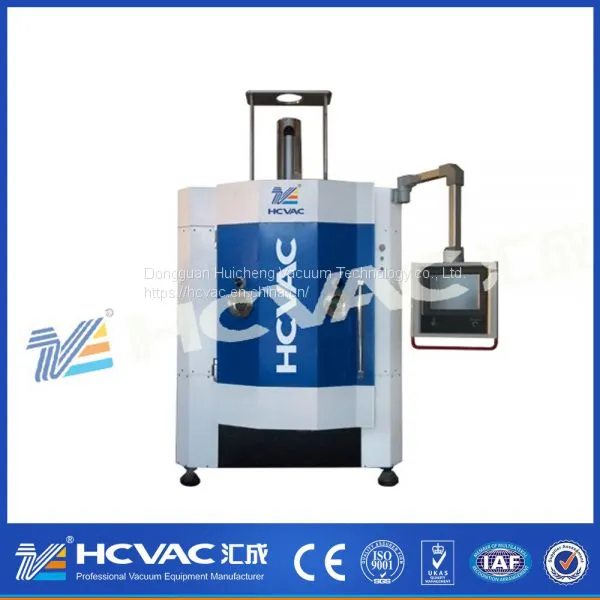

MACHINE PHOTOS

jewelry coating machine(after coating)
DC and MF sputtering coating machineGold PVD coating machine with arc and sputtering


SAMPLE PHOTOS

 555252b 12483

13

092






Company Information
ABOUT HUICHENG

Dongguan Huicheng Vacuum Technology Co., Ltd. is a high-tech enterprise specialized in the R& D,
 production, and marketing kinds  of Vacuum coating machine and related products. We start in this field in1997,and already install machines more than 65 countries.

HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.

   We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.

Easy to implement

  To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the part’s history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.

Certifications
HUICHENG HONOR

Successful Case
PHOTO WITH CLIENTS & SUCCESSFUL CASE


We developed a complete after-sales system and effective service measures. Company now
owns a professional after-sales service team with more than ten experienced engineers.



ISO 9001 standard to ensure the quality can meet the customer’s requirements.

Please feel free to contact us for further information!







For more information, please feel free to contact us or visit our website: !
