| BRIEF INTRODUCTION |
The machine is mainly design for sanitary ware/bathroom fitting parts. It’s equipped with several big size electrical arc evaporation sources and magnetron sputtering coating system, to deposit high performance metal decorative film on brass, zinc alloy, stainless steel, plastic and other metal parts surface. It can get all types of metal color series on substrate. The coating film includes TiN, Zr,T iCN, ZrCN, CrN, CrCN, brass, bronze, chrome etc. Color series includes AF, SN, BN, VF, BV, G, BX, TB, AF, SN, 96CB, CB, TXB, VS, S, BS, BRZ, BGD, PGD and so on. It can get different colors by adjusting coating technics. It is largely used in the sanitary ware/ Kitchen ware field.
| FEATURES |
HCVAC decorative PVD films are routinely used as a replacement for electroplated chrome. They can be applied directly over almost any substrate material and can be deposited in a wide variety of colors. The process parameters to deposit each color are stored in software recipes with different process steps. Once the coating process has started, all of the relevant process parameters are continuously monitored and controlled by the on-board computer software.
The coatings provide improved properties such as hardness, wear-resisitance, corrosion-resistance, and fracture/fatigue performance without unwanted changes in component bulk properties. This advanced technology coating process replicates the original surface finish, eliminates re-polishing after coating, and will not chip or flake off.
-High reliability
-High productivity and flexibility
-Consistently brilliant end product quality
-Full automation capability
-Excellent coating flexibility
-Long lifetime and fast target exchange
-Flexible system configuration
-High speed coating and best PVD homogeneity
| TECHNICAL DATA |
| Mode | LH-1215 | LH-1618 | LH-2121 |
| Dimension | D1250*H1500mm | D1600*H1800mm | D2100*H2100m |
|
Coating mode and main confirguration |
Twelve arc targets | Eighteen arc targets | Twenty two arc targets |
| Power source | Electric-arc power, Filament power, Pulsed bias power supply | ||
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve | ||
|
Vacuum chamber structure |
Vertical side opening door, pump system postposition, double water cooling | ||
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa) | ||
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute | ||
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa | ||
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode | ||
| Remark | We can design the dimension of the equipment according to customer’s special technique requirement. | ||

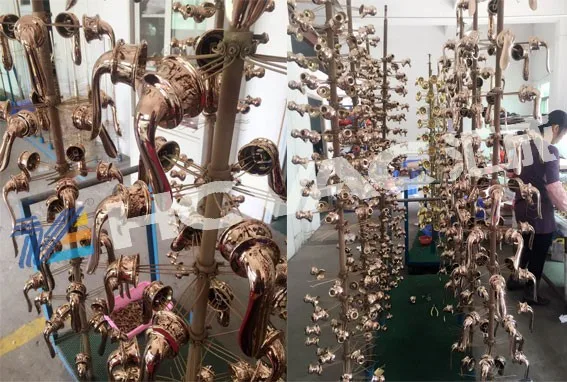

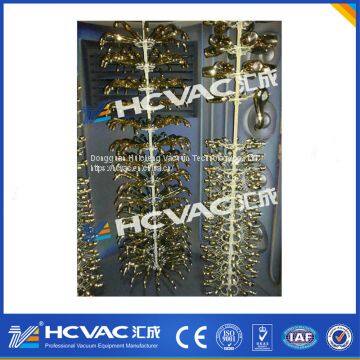

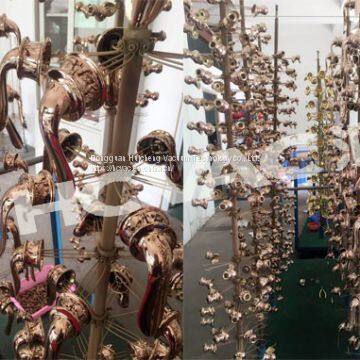

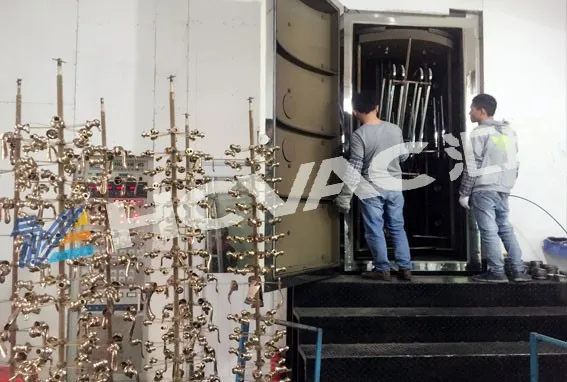

| MACHINE PHOTOS |

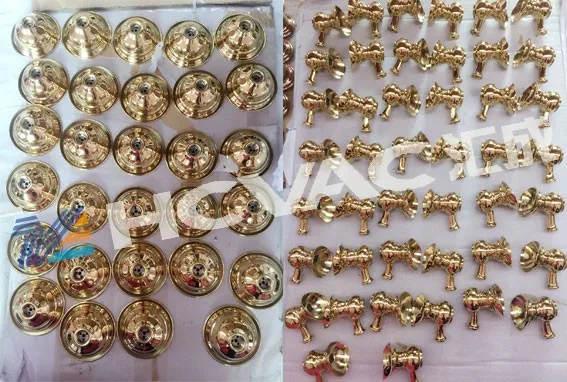

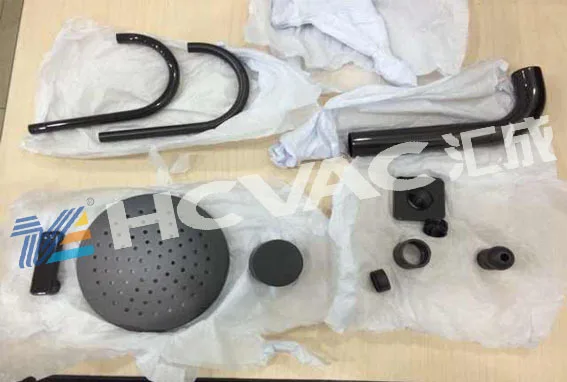

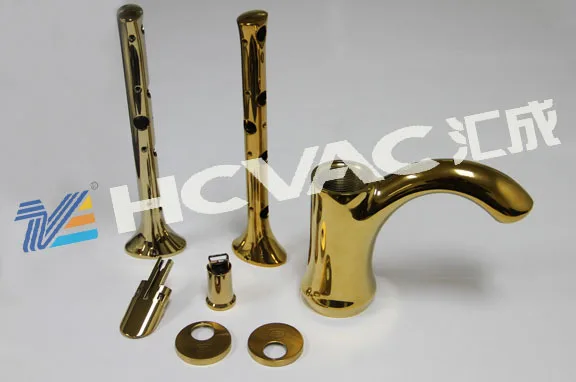

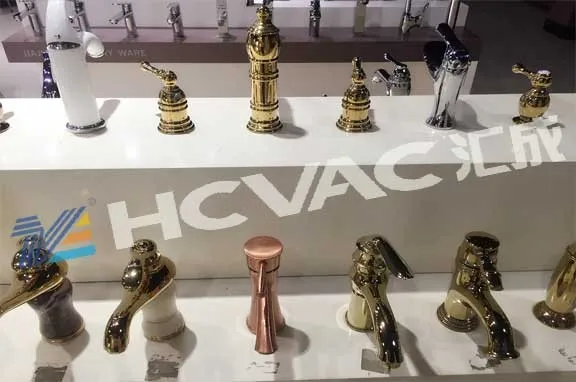

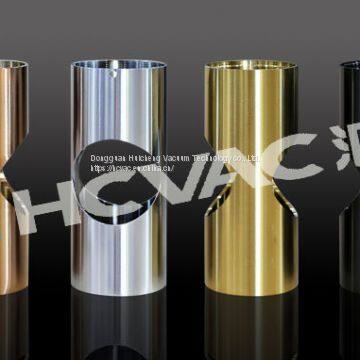

| SAMPLE PHOTOS |
| ABOUT HUICHENG |
production, and marketing kinds of Vacuum coating machine and related products. We start in this field in1997,and already install machines more than 65 countries.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
Easy to implement
To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the part’s history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
| HUICHENG HONOR |
| PHOTO WITH CLIENTS & SUCCESSFUL CASE |
We developed a complete after-sales system and effective service measures. Company now
owns a professional after-sales service team with more than ten experienced engineers.
