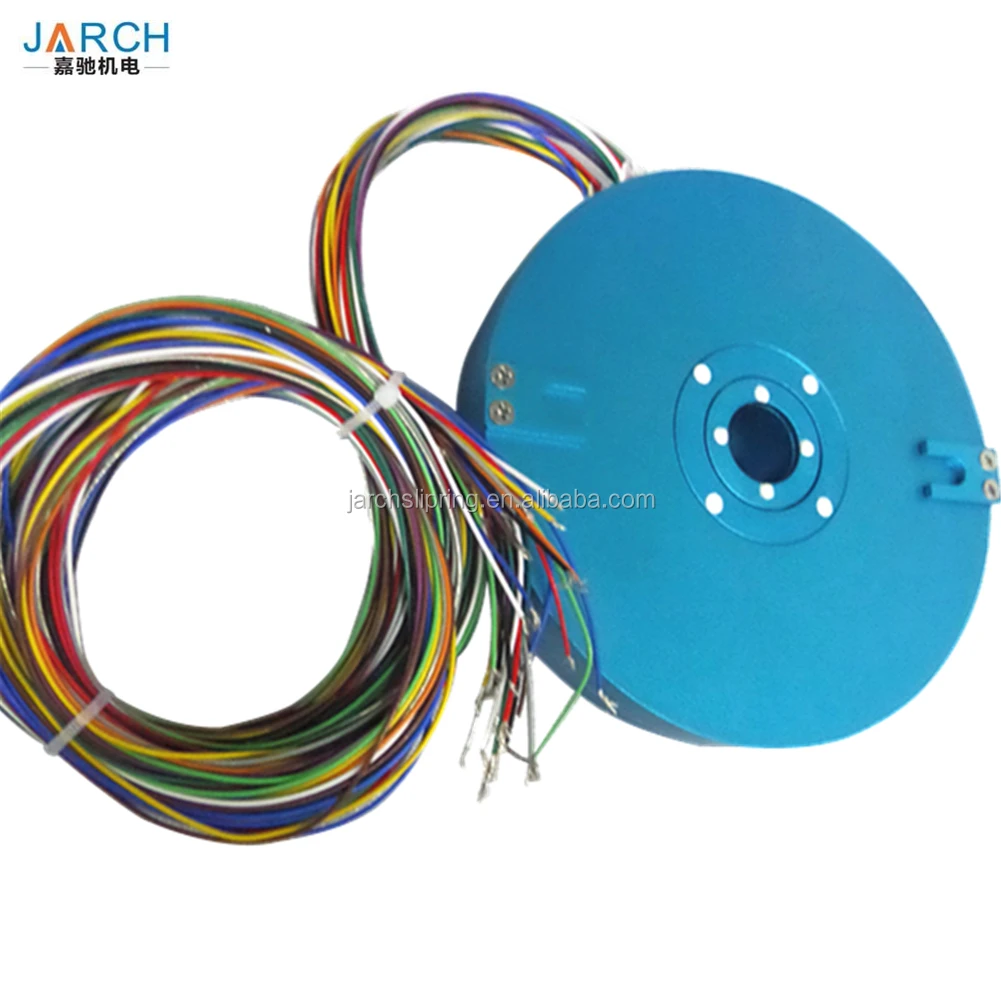

JARCH Low Torque 12 signals Flat Slip Ring 6 Circuits/5A Thickness bore slip ring 20mm

JARCH Low Torque 12 signals Flat Slip Ring 6 Circuits/5A Thickness bore slip ring  20mm

Feature:

Hole size:10mm

Thickness:25mm

Transmission power, data signal

Max speed:250rpm

Compatible with the data bus protocol

JARCH Low Torque 12 signals Flat Slip Ring 6 Circuits/5A Thickness bore slip ring  20mm

JARCH Low Torque 12 signals Flat Slip Ring 6 Circuits/5A Thickness bore slip ring  20mm

JARCH Low Torque 12 signals Flat Slip Ring 6 Circuits/5A Thickness bore slip ring  20mm

Certificates

Q1: How long is your production lead time?

A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.

Q2: What technical data should be provided for our customized slip ring model?

A: If you want to costomize the special slip ring model, you need provide details as below:

a.operatring speed(RPM)
b.the type of installation

c.outline size

d.channels(the No. of single wire besides cable)
e.rated voltage & current for power rings and signal rings

f.the signal type and related
parameters(very important)

g.operating temperature h.IP(sealing requirements)

If you have any questions, pls contact us without any hesitation.
